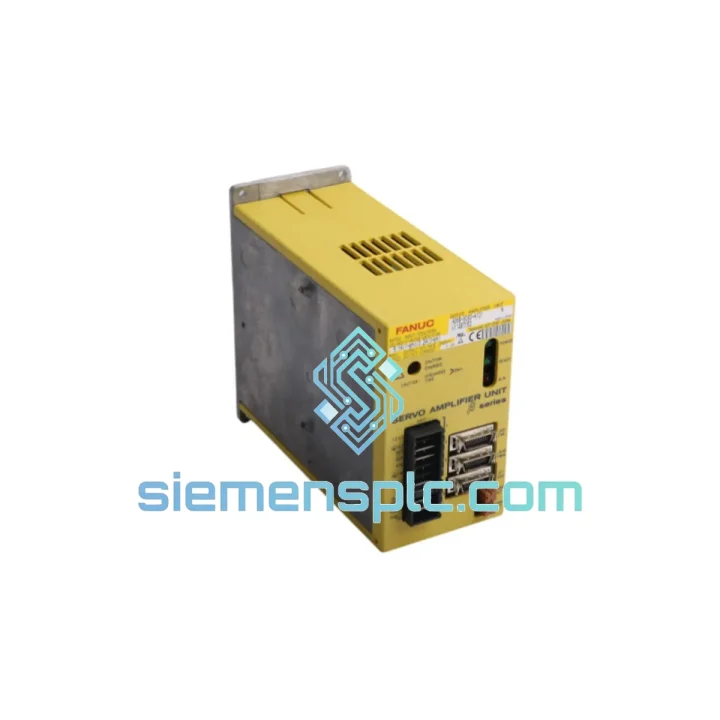

GE Fanuc A06B-6093-H101 AC Servo Amplifier – BETA Series

A06B-6093-H101: Axis-Level Power Conversion and Closed-Loop Servo Control in Fanuc BETA Drive Architecture

The A06B-6093-H101 is a single-axis AC servo amplifier within GE Fanuc’s BETA Series drive platform. Its functional position in the control architecture is precise: it sits between the CNC’s FSSB command output and the physical motor shaft, executing real-time current regulation, encoder feedback decoding, and fault state reporting within a fixed servo interpolation period. This is not a general-purpose variable frequency drive — it is a purpose-built servo amplifier whose firmware, bus protocol, and hardware topology are co-designed with the Fanuc 0i, 16i, 18i, and 21i controller families to achieve deterministic axis motion with sub-millisecond command latency.

The BETA Series occupies a specific tier in Fanuc’s drive hierarchy. Where the ALPHA Series targets high-power, high-inertia multi-axis configurations with shared DC bus architecture, the BETA Series was designed around individual axis power stages with self-contained regenerative circuits — a topology that reduces inter-axis electrical coupling and simplifies cabinet wiring for machines with two to four controlled axes. The A06B-6093-H101 is the standard single-axis variant of this platform, covering the majority of X/Z axis applications in turning centers and small-format machining centers.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

FSSB Command Processing and Servo Cycle Timing
The FSSB operates as a synchronous, fixed-period serial bus. At each servo cycle boundary — configurable at 1 ms or 0.5 ms via CNC parameter No. 1820 — the controller transmits a position command frame to the A06B-6093-H101 and receives a status frame containing encoder position, velocity estimate, and amplifier health data. The amplifier’s internal DSP processes the incoming command and updates the PWM gate drive signals within the same cycle window. This hard real-time constraint is what separates FSSB-based servo systems from fieldbus-based alternatives: there is no protocol-level jitter, no token-passing delay, and no arbitration overhead. Every axis on the FSSB chain updates in phase, which is the physical prerequisite for coordinated multi-axis interpolation.

IGBT Output Stage and Current Loop Architecture
The three-phase IGBT inverter bridge in the A06B-6093-H101 converts the DC bus voltage into a variable-frequency, variable-amplitude three-phase output through sinusoidal PWM modulation. The switching frequency is selected by Fanuc’s firmware to match the inductance characteristics of the paired BETA Series motor windings — a parameter that is fixed at the factory and not field-adjustable. The current loop, implemented in the DSP, samples phase currents via shunt resistors or Hall-effect sensors at a rate significantly higher than the servo cycle rate, typically at the PWM carrier frequency. This inner current loop bandwidth determines the amplifier’s ability to track rapid torque commands without overshoot, which directly affects surface finish quality in contouring operations.

Serial Encoder Interface and Position Data Integrity
The A06B-6093-H101 decodes the serial data stream from the BETA motor’s encoder directly on-board, without requiring an external pulse coder interface unit (PCIF). The encoder protocol used by Fanuc BETA motors transmits position data as a serial word with embedded CRC or parity checking. The amplifier’s decoder validates each received frame; a checksum failure triggers an encoder communication alarm (typically SV364 or SV368) rather than silently accepting corrupted position data. This error-detection mechanism prevents the control loop from acting on false position information — a failure mode that, in a machine tool context, would result in axis runaway or workpiece collision.

EMC Architecture and Noise Isolation
The PCB layout of the BETA Series amplifier physically separates the high-voltage switching section (DC bus, IGBT drivers, gate resistors) from the low-voltage signal processing section (DSP, FSSB transceiver, encoder decoder). Ground planes are partitioned accordingly, with a single-point connection between power ground and signal ground to prevent switching noise from coupling into the signal path. The FSSB interface uses differential line drivers and receivers, providing common-mode rejection of noise induced on the cable by adjacent switching converters in the same cabinet. The metal housing acts as a Faraday enclosure for the internal electronics, attenuating radiated emissions from the IGBT switching transients that would otherwise interfere with encoder signal integrity.

Regenerative Energy Path
During motor deceleration, kinetic energy from the load is returned to the DC bus as the motor operates in generator mode. The A06B-6093-H101 monitors DC bus voltage; when it exceeds the regenerative threshold, the internal braking transistor switches the internal resistor across the DC bus, dissipating the excess energy as heat. For standard BETA Series applications — moderate inertia loads, moderate deceleration rates — this internal circuit is sufficient. The threshold at which an external braking resistor becomes necessary is determined by the load inertia ratio and the deceleration time constant; Fanuc’s servo sizing software (SERVO GUIDE) calculates this boundary during the design phase.

System Integration Benefits

• Zero-Hardware FSSB Integration: The A06B-6093-H101 connects directly into the FSSB daisy chain via a single fiber-optic or differential cable. No interface converter, no gateway module, no additional power supply. Axis assignment is handled entirely through CNC parameter configuration (axis number assignment in parameter No. 1023).
• On-Board Encoder Decoding Eliminates External Hardware: The integrated serial encoder decoder removes the need for a separate pulse coder interface unit, reducing the number of discrete components in the drive cabinet and eliminating one potential failure point in the feedback signal chain.
• Alarm Code Transparency at the Operator Panel: All drive-level faults — overcurrent (SV401), overvoltage (SV404), encoder error (SV364), overheat (SV417), and others — are transmitted to the CNC display via FSSB. Maintenance personnel can read the specific alarm code from the operator panel without opening the drive cabinet or connecting a laptop to the drive.
• Deterministic Multi-Axis Synchronization: Because all FSSB-connected amplifiers update at the same servo cycle boundary, the position commands for X and Z axes (or X, Y, Z in machining center configurations) are applied simultaneously. This phase coherence is what enables circular interpolation accuracy at the micron level — a requirement that asynchronous bus architectures cannot reliably meet.
• Drop-In Replacement Without Re-Tuning: Replacing a failed A06B-6093-H101 with an identical unit, paired with the same motor, requires no servo parameter adjustment. The existing gain parameters (position loop gain No. 1825, velocity loop gain Nos. 2021–2022, and current loop parameters) remain valid. Machine downtime is limited to the physical swap and a brief axis reference return cycle.
• Independent DC Bus Simplifies Cabinet Design: Unlike shared-bus ALPHA Series configurations, each BETA Series amplifier maintains its own DC bus. This eliminates the need for a common bus bar, simplifies short-circuit protection coordination, and allows individual axis power sections to be isolated without affecting other axes — a significant advantage during fault diagnosis and maintenance.
• Cross-Platform Spare Parts Coverage: A single A06B-6093-H101 unit covers axis drive requirements across Fanuc 0i-A through 0i-D, 16i, 18i, and 21i controllers. In a manufacturing facility operating a mixed fleet of Fanuc-controlled machines, one spare unit in the maintenance store covers multiple machine models, reducing spare parts inventory cost and complexity.
• Compact Physical Envelope for High-Density Cabinets: The BETA Series amplifier’s small footprint allows higher axis density per unit of cabinet volume compared to earlier modular drive architectures. This is relevant in retrofit projects where the replacement drive must fit within the original cabinet envelope without mechanical modification.

Quality Assurance & Global Logistics

Every A06B-6093-H101 unit dispatched from our Xiamen facility passes a structured intake inspection: OEM part number label verification against GE Fanuc’s published numbering conventions, connector pin condition check, PCB visual inspection for corrosion or physical damage, and cross-reference of date codes against known production batches. Units that fail any inspection criterion are quarantined and not offered for sale. This process is not optional — servo amplifiers in machine tool applications directly affect axis positioning accuracy and, in failure modes, can cause axis runaway. The integrity of the supply chain is a functional requirement, not a marketing claim.

Packaging follows industrial electronics export standards: individual ESD-protective anti-static bag, foam cushioning on all six faces, double-wall corrugated outer carton. The commercial invoice includes the correct HS code for servo amplifiers to facilitate customs clearance at destination. Shipments leave Xiamen via DHL Express or FedEx International Priority with same-day or next-business-day dispatch for confirmed orders received before 14:00 CST. Indicative transit times: Southeast Asia 2–3 business days, Europe 3–5 business days, North America 4–6 business days. Economy freight options (EMS, consolidated air freight) are available for non-urgent procurement. A 12-month warranty against manufacturing defects and functional failure under normal operating conditions is provided from the shipment date, with direct technical support via email and WhatsApp for installation and commissioning queries.
