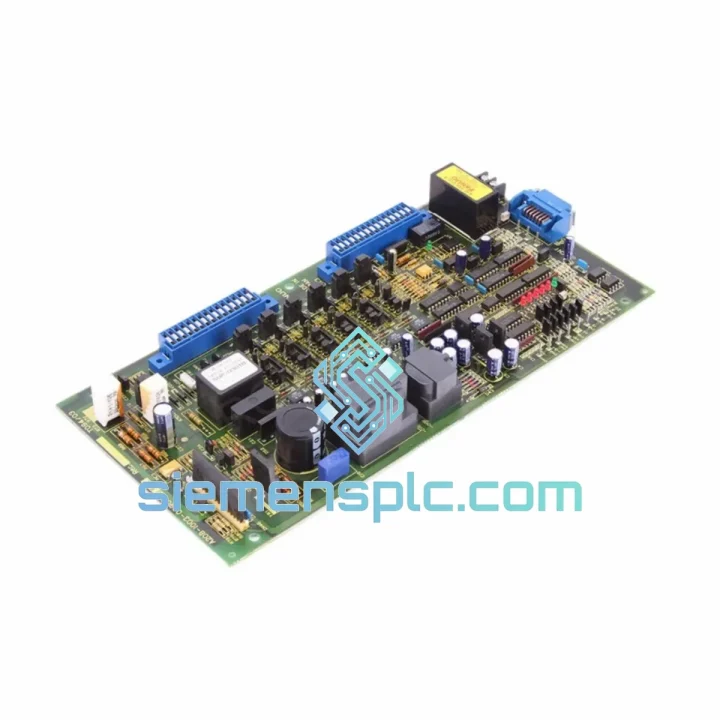

GE FANUC A20B-1003-0090/05A Drive Control Card

A20B-1003-0090/05A: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your spindle axis just dropped out. The servo alarm is latched. The CNC screen is frozen on an SV alarm and the shift supervisor is already on the phone. You know the drill — every minute this machine sits idle is money bleeding out of the schedule. The GE FANUC A20B-1003-0090/05A Drive Control Card is on the shelf, tested, and ready to move. We ship DHL Express from Xiamen within 24 hours of order confirmation. No waiting on OEM lead times. No back-and-forth with a distributor who doesn’t stock it. You call, we ship.

This card sits at the nerve center of the FANUC A-series drive architecture — it handles the real-time feedback loop between the CNC controller and the servo/spindle amplifiers. When it fails, nothing moves. When you replace it correctly, everything comes back clean. We’ve put this exact part number back into machining centers, robotic welding cells, and transfer lines across automotive and aerospace plants. The replacement procedure is straightforward if you know what to watch for — and we’ll walk you through it below.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for A20B-1003-0090/05A:

• SV401 / SV408 alarm: Servo ready signal lost — the drive card has stopped communicating with the amplifier. Power cycle won’t clear it. This card is the first suspect after ruling out cable continuity.
• SP9001 / SP9002 spindle alarm: Spindle orientation failure or encoder feedback dropout. If the encoder cable checks out, the drive interface circuitry on this card is likely degraded.
• Intermittent axis drift: Subtle position errors that worsen with machine temperature. Classic sign of a failing feedback buffer on the drive card — often misdiagnosed as a motor encoder issue.
• No drive ready LED on amplifier: The amplifier is waiting for an enable signal from the drive card. If the amplifier itself powers up clean but never goes ready, the card is not asserting the enable line.

Replacement procedure — field notes:

1. Power down completely. Lock out the main breaker. Wait a full 5 minutes for the DC bus capacitors to discharge before touching any drive components. This is not optional.
2. Document your rotary switch and jumper settings on the old card before removal. Photograph both sides. The A20B-1003-0090/05A has address selection switches that must match the slot assignment in your rack. Mismatched addressing causes the controller to see a ghost axis or throw an immediate alarm on power-up.
3. Check the revision suffix. The /05A suffix denotes a specific hardware revision. Earlier revisions (/03A, /04A) may have different firmware compatibility requirements. Confirm your controller’s software version supports /05A before installation — FANUC Series 0 systems running software below a certain release level may require a parameter adjustment after swap.
4. Seat the card firmly. The edge connector on A20B cards is notorious for partial seating that looks correct visually but causes intermittent comms faults. Press until you feel the connector fully engage, then secure the retaining screw.
5. On first power-up, go straight to the servo parameter screen and verify that the axis gain parameters (PK1, PK2, PK3 for position/velocity loops) are intact. A card swap should not alter stored parameters, but confirm before running any motion.
6. Run a reference point return on all axes before cutting. Watch for any position deviation alarm during the return cycle — this confirms the feedback path is clean end-to-end.

No firmware flashing required for a direct /05A-to-/05A swap. The card does not hold machine-specific parameters — those live in the CNC controller’s battery-backed SRAM. Your parameters survive the swap intact.

Reliability in Harsh Conditions

The A20B-1003-0090/05A was designed for continuous duty in production environments — not a climate-controlled lab. The PCB substrate is rated for the thermal cycling that comes with machines that run three shifts and cool down on weekends. Conformal coating on the board protects against the cutting fluid mist and humidity that accumulates inside machine cabinets over years of operation.

Vibration resistance is built into the connector design. The edge connector and any board-mounted connectors are specified to handle the low-frequency vibration transmitted from spindle imbalance and servo hunting that is endemic in aging machining centers. We have seen original A20B cards pulled from machines with 20+ years of service that still test functional — the design has genuine longevity when the thermal environment is managed.

Every unit we ship has been inspected under magnification for PCB trace integrity, solder joint condition, and component health. Electrolytic capacitors — the most common age-related failure point on any industrial PCB — are checked for bulging, leakage, and ESR where test access allows. Units that show any sign of capacitor degradation are not shipped as functional replacements.

Storage prior to shipment is in a temperature and humidity-controlled environment. Cards are held in anti-static bags with desiccant packs. When the box arrives on your dock, the card inside is in the same condition it was when it left our warehouse — not degraded by a container crossing the Pacific in summer heat.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most logistics-connected export cities on the mainland, with direct DHL and FedEx gateway access. This matters when you are trying to get a part from China to a plant in Germany, Mexico, or Thailand inside 72 hours.

Standard express routing from Xiamen:

• Southeast Asia (Thailand, Vietnam, Malaysia, Indonesia): DHL Express — typically 1–2 business days door to door
• Europe (Germany, Italy, Spain, Poland): DHL Express or FedEx International Priority — typically 3–4 business days
• North America (USA, Mexico, Canada): FedEx International Priority — typically 3–5 business days
• Middle East (UAE, Saudi Arabia, Turkey): DHL Express — typically 2–3 business days
• South America (Brazil, Chile, Argentina): FedEx or DHL — typically 4–6 business days depending on customs clearance

All shipments include full export documentation: commercial invoice, packing list, and certificate of origin. For customers in regulated industries or countries with specific import requirements, we can prepare additional documentation on request. Customs HS code for this product is 8537.10 (boards, panels, consoles for electric control). We declare accurately — no undervaluation, no misdescription. Clean paperwork means no customs holds.

Tracking numbers are sent within 2 hours of dispatch. For urgent shipments, we can arrange same-day pickup with DHL if the order is confirmed before 14:00 CST. Contact us directly to arrange priority dispatch.
