GE Fanuc IC694ALG392A Analog Output Module – Series 90-30

GE Fanuc IC694ALG392A – Eight-Channel Analog Output at the Core of Series 90-30 Process Control

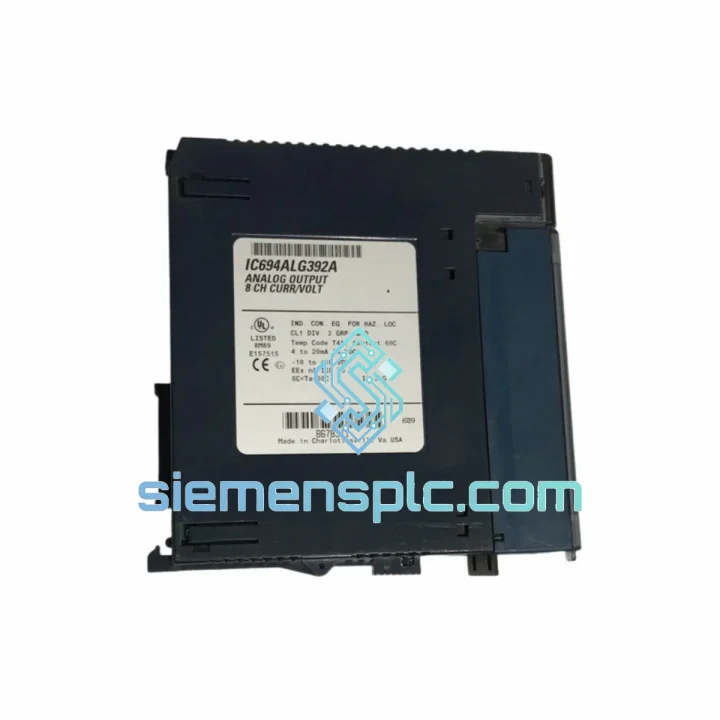

The IC694ALG392A is an eight-channel analog output module engineered for the GE Fanuc Series 90-30 PLC platform. It occupies a single I/O slot in any IC694-series baseplate and delivers independently configurable current or voltage signals to field actuators, drives, and proportional control devices. In a control loop, this module sits at the final command stage: it receives 12-bit digital words from the CPU over the Series 90-30 backplane bus and converts them to calibrated analog signals that drive physical plant equipment. Every millisecond of output latency or signal drift at this stage propagates directly into process deviation — which is why hardware selection here is not a procurement afterthought.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC694ALG392A is built around an eight-channel DAC architecture where each channel operates from an independent digital-to-analog conversion path. This is not a multiplexed design — each channel has its own DAC register, output buffer amplifier, and field terminal pair. The consequence is zero inter-channel crosstalk and simultaneous update across all eight outputs within a single scan cycle write operation.

DAC Architecture and Output Buffering: The 12-bit DAC core uses a successive-approximation architecture with an output buffer amplifier stage that provides low output impedance for voltage mode (typically <1 Ω) and a precision current mirror circuit for current loop mode. The current mirror maintains loop current accuracy independent of load impedance variation within the 0–600 Ω specification window — a critical property when driving long cable runs where loop resistance can shift with temperature.

EMC Design: The module’s PCB layout separates the digital backplane interface section from the analog output section using a ground plane split strategy. Decoupling capacitors are placed at each DAC supply rail to suppress high-frequency switching noise from the backplane bus. The field terminal side uses common-mode chokes on signal lines to attenuate conducted interference from field cable runs, which in industrial environments can carry induced noise from adjacent VFD output cables or motor starter wiring.

Fault State Logic: Each channel’s fault state behavior (hold last value / go to configured safe value / default to zero) is stored in non-volatile configuration memory within the module. On CPU stop or communication loss, the module autonomously executes the per-channel fault state without requiring CPU intervention — a hardware-level safety mechanism that prevents uncontrolled actuator movement during controller faults.

Backplane Communication Protocol: The module communicates with the Series 90-30 CPU via the IC694 backplane bus using a token-passing arbitration scheme. The CPU writes output data to the module’s dual-port RAM buffer during the output scan phase. The module’s local microcontroller reads this buffer and updates DAC registers at the start of each conversion cycle. This double-buffering architecture ensures that a slow DAC conversion cycle does not stall the CPU scan — maintaining deterministic PLC scan times regardless of analog output settling time.

Revision A Changes: The “A” suffix revision introduced improved DAC reference voltage stability over the operating temperature range, reducing output drift from ±0.3% to ±0.1% of full scale across 0–60°C. The backplane connector was also upgraded to a gold-plated contact variant for improved corrosion resistance in humid environments. The module is fully backward-compatible with the original IC694ALG392 in all Series 90-30 baseplates.

System Integration Benefits

• Deterministic Output Timing: Outputs update synchronously with the CPU scan cycle — no asynchronous output jitter that could cause hunting in tight PID loops controlling valve positioners or flow control elements.
• Per-Channel Mode Flexibility: Current and voltage modes are software-selectable per channel in Proficy Machine Edition hardware configuration, eliminating the need for hardware jumpers or separate module variants when field device requirements change.
• High Channel Density: Eight outputs in a single backplane slot reduces rack space consumption by up to 75% compared to single-channel analog output cards, directly lowering panel BOM cost and wiring labor hours.
• Configurable Fault States: Per-channel fault state configuration allows the control system designer to define safe output positions for each actuator independently — a valve can be commanded to close (4 mA) while a VFD holds last speed, within the same module.
• Diagnostic Transparency: Module-level fault codes are reported to the CPU fault table and accessible via the Series 90-30 fault history buffer. Maintenance personnel can identify output channel faults, over-range conditions, and communication errors without physical inspection of the module.
• Drop-In MRO Compatibility: The IC694ALG392A is a direct replacement for IC694ALG392 (original revision) with no hardware or software reconfiguration required — critical for minimizing downtime during emergency replacement in production environments.
• Backplane-Powered Logic: Module logic draws power exclusively from the 5 VDC backplane supply. No separate 24 VDC module power wiring is required, simplifying panel design and reducing potential single points of failure in the power distribution architecture.
• Long-Term Platform Support: The Series 90-30 platform has an extensive installed base across process industries. The IC694ALG392A remains available as a stocked spare part, supporting maintenance strategies for systems with 10–20 year operational lifespans where platform migration is not economically viable.

Quality Assurance & Global Logistics

Authenticity and Inspection: Every IC694ALG392A unit supplied by siemensplc.com is sourced from traceable industrial distribution channels. Prior to shipment, each module undergoes a structured inspection sequence: visual examination of PCB condition, connector pin integrity, and label authenticity against GE Fanuc reference documentation; power-on functional test confirming backplane communication and DAC output response across all eight channels; and revision suffix verification against GE Fanuc product bulletin IC694ALG392-PA-001. Units that do not pass all inspection stages are quarantined and not offered for sale.

Packaging: Modules are packed in anti-static bags with ESD warning labeling, placed in foam-lined corrugated cartons rated for international air freight handling. Each shipment includes a packing list with part number, revision, and serial/lot code documentation.

Warranty: siemensplc.com provides a 12-month operational warranty from the date of shipment. DOA (Dead on Arrival) units are replaced within 5 business days of confirmed fault report. Warranty claims require photographic evidence of the fault condition and the original shipping documentation.

Global Express Logistics from Xiamen, China: Our fulfillment center is located in Xiamen, Fujian Province — a major international logistics hub with direct DHL Express, FedEx International Priority, and UPS Worldwide service. Standard dispatch time is 1–2 business days from payment confirmation. Typical transit times: Southeast Asia 2–4 days, Europe 3–5 days, North America 3–6 days, Middle East 4–7 days. All shipments include real-time tracking, commercial invoice, packing list, and HS Code 8537.10 export documentation. Certificate of Origin and test reports are available upon request. Customs clearance support is provided for all major destination markets.
