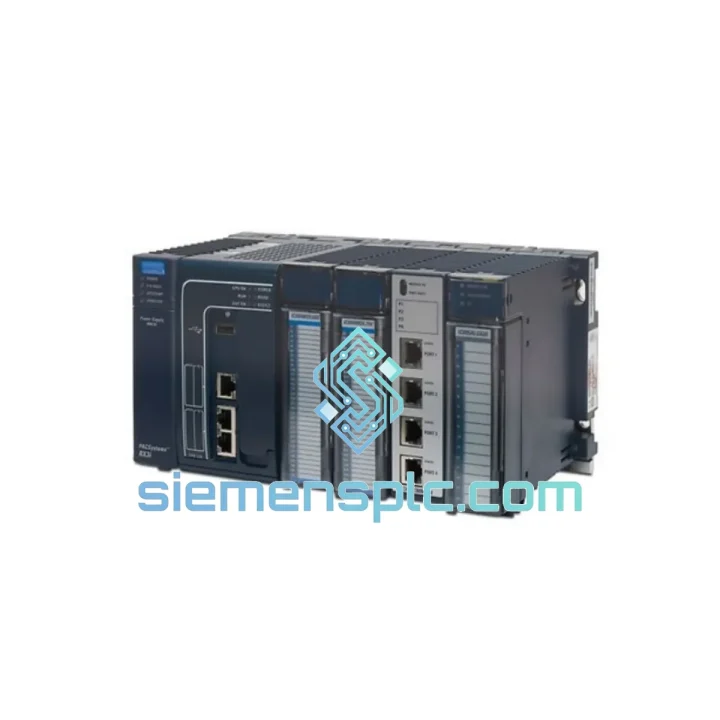

GE Fanuc IC695HSC304-DA High Speed Counter Module – PACSystems RX3i

GE Fanuc IC695HSC304-DA: 4-Channel Differential High-Speed Counter Module in PACSystems RX3i Control Architecture

The IC695HSC304-DA is a dedicated hardware counter module engineered for GE Fanuc’s PACSystems RX3i platform. Its primary function is to offload high-frequency pulse acquisition from the RX3i CPU, resolving a fundamental constraint in scan-based PLC architectures: the inability of a software scan cycle — typically 1 ms to 10 ms — to reliably capture encoder or sensor pulses exceeding several kilohertz. By processing count events entirely in dedicated on-board logic, the IC695HSC304-DA delivers deterministic, scan-independent pulse capture at rates up to 1 MHz per channel across all four channels simultaneously.

The “-DA” suffix designates the differential analog input variant. Unlike single-ended TTL input versions, the DA configuration accepts RS-422 differential signals, which provide common-mode noise rejection critical in industrial cabinet environments where variable-frequency drives, contactors, and high-current bus bars generate significant electromagnetic interference. This makes the IC695HSC304-DA the preferred selection for encoder feedback in servo-driven and high-speed motion applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Scan-Decoupled Counter Architecture: The IC695HSC304-DA implements four independent 32-bit hardware counter registers in dedicated FPGA or ASIC logic on the module PCB. These registers increment or decrement in real time based on incoming pulse edges, completely asynchronous from the RX3i CPU scan cycle. At the end of each PLC scan, the CPU reads a snapshot of the counter values via the RX3i backplane bus. This architecture eliminates the aliasing error inherent in software-polled counting: a 1 kHz scan cycle polling a 10 kHz pulse train would miss 90% of pulses; the IC695HSC304-DA captures every edge regardless of scan load.

Differential Input Signal Conditioning: Each channel’s input stage uses a differential line receiver compliant with RS-422 electrical specifications. The receiver compares the voltage difference between the A+ and A− signal lines (and B+/B− for quadrature), with a switching threshold at approximately ±200 mV differential. This topology rejects common-mode voltages up to ±7 V, which directly suppresses ground-loop noise and capacitively coupled interference from adjacent power cables — a common failure mode for single-ended TTL counter inputs in VFD-dense panels.

Quadrature Decode Logic: In quadrature mode, the module’s decode logic evaluates the phase relationship between the A and B channel signals to determine both count direction and position. At ×4 decode resolution, both rising and falling edges of both A and B are counted, yielding four counts per encoder line — a 2,500-line encoder produces 10,000 counts per revolution. The Z-index input resets or latches the counter at a defined reference position, enabling absolute position recovery after power cycle without a separate home-search routine.

On-Board Compare and Preset Logic: Each channel includes a hardware comparator that continuously evaluates the live counter value against a user-programmed preset register. When the counter reaches the preset value, the module asserts a compare output signal with a latency of less than one encoder pulse period — far below the millisecond-range latency of a CPU-executed output instruction. This enables direct actuator triggering (e.g., cut knife, dispense valve, registration mark response) without routing the decision through the PLC scan ladder.

EMC Design Considerations: The module PCB incorporates multi-layer ground plane construction with signal traces routed away from power supply planes. Input signal lines are terminated with matched impedance to suppress reflections at high frequencies. The front-panel connector shell is bonded to chassis ground, providing a low-impedance path for shield currents from shielded encoder cables. These measures collectively support operation in environments with radiated field strengths up to 10 V/m per EN 61000-4-3.

System Integration Benefits

• Zero Pulse Loss at Full CPU Load: Hardware counting is entirely independent of PLC program execution time. Even during CPU-intensive ladder logic scans or communication bursts, the IC695HSC304-DA continues capturing pulses without interruption, eliminating count errors that degrade product quality in high-throughput lines.
• Deterministic Data Latency: Counter values are transferred to the RX3i I/O reference table at a fixed point in each scan cycle, providing a consistent, predictable data age for motion calculations and process control algorithms.
• Flexible Encoder Protocol Support: A single module configuration supports quadrature (×1/×2/×4), pulse/direction, and up/down pulse modes per channel, eliminating the need for separate module SKUs when integrating encoders from different manufacturers or motion controller types.
• Direct PME Integration: Module parameters — channel mode, preset values, compare output assignments, gate polarity — are configured entirely within Proficy Machine Edition’s hardware configuration tree. No external configuration software or proprietary tools are required.
• Reduced Ladder Logic Complexity: By handling compare and preset logic in hardware, the IC695HSC304-DA removes time-critical rungs from the CPU program. This simplifies program structure, reduces scan time, and lowers the risk of timing-related bugs in high-speed applications.
• Scalable Multi-Axis Feedback: With four independent channels per module and multiple modules supported per RX3i backplane, the architecture scales from single-axis position feedback to multi-axis coordinated motion without architectural changes to the control system.
• Diagnostic Transparency: Module status bits — including input signal loss, counter overflow, and compare output state — are mapped to the RX3i reference table and accessible from any CPU logic block, enabling structured fault detection and alarm generation without additional hardware.
• Hot-Swap Compatibility: The RX3i Universal Backplane supports module insertion and removal under power when the system is configured for hot-swap operation, reducing maintenance downtime in continuous-process applications where stopping the line carries significant production cost.
• Long-Run Counter Depth: The 32-bit counter register accommodates 4,294,967,295 counts before rollover. At 1 MHz input rate, rollover occurs after approximately 71.6 minutes of continuous counting — sufficient for the vast majority of industrial cycle lengths without requiring software counter extension logic.
• Noise-Immune Reference Reset: The Z-index input uses the same differential RS-422 input stage as the A/B channels, ensuring that the position reference reset signal is equally immune to common-mode noise — preventing spurious resets that would corrupt absolute position data.

Quality Assurance & Global Logistics

Every IC695HSC304-DA unit offered through siemensplc.com is sourced as genuine GE Fanuc original hardware. Prior to dispatch, each module undergoes a structured inspection protocol: visual examination of PCB, connector pins, and label integrity; date code and revision level verification against GE Fanuc production records; and a functional power-on test confirming backplane communication and channel response. Serial numbers are cross-referenced against known GE Fanuc manufacturing ranges to mitigate counterfeit risk — a documented concern in the surplus industrial automation market.

Units are shipped from our warehouse in Xiamen, China, using DHL Express, FedEx International Priority, or UPS Worldwide Expedited, depending on destination and customer preference. Standard transit times are 3–5 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East. Export documentation — commercial invoice, packing list, and functional test report — is prepared for every shipment. EXW Xiamen and CIF destination terms are both available for volume orders. All units carry a 12-month warranty against defects in materials and workmanship, with DOA replacement processed within 5 business days of confirmed fault diagnosis.
