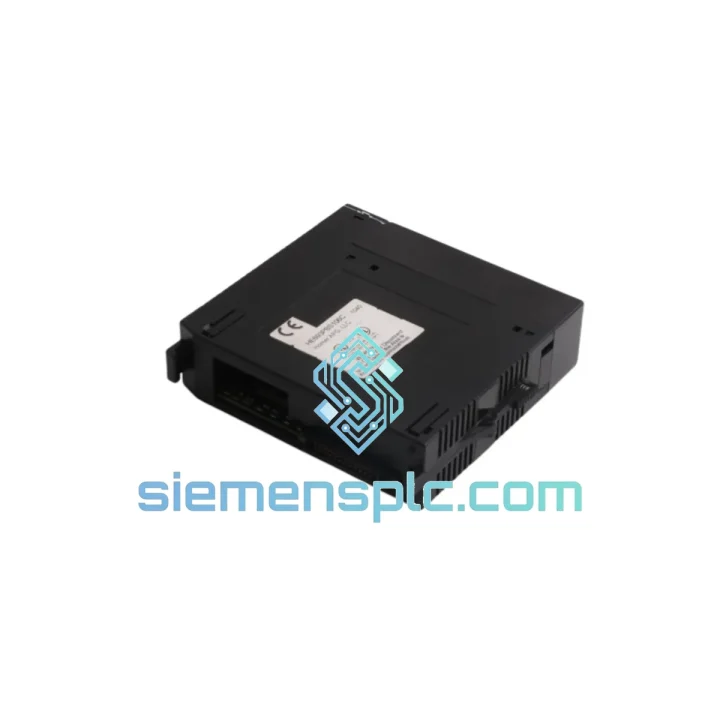

GE HE693PBS106 PROFIBUS DP Communication Module – Fieldbus Gateway for Series 90-30 Control Architecture

In distributed automation environments, the integrity of fieldbus communication directly determines the determinism of the entire control loop. The GE HE693PBS106 is a rack-mounted PROFIBUS DP interface module engineered for the Series 90-30 PLC platform, providing a direct, low-latency data path between the Series 90-30 backplane bus and a PROFIBUS DP network segment. It eliminates the need for external protocol converters by embedding the DP master/slave stack natively within the I/O chassis, reducing node count, cable routing complexity, and potential single points of failure in the communication chain.

The module supports both Class 1 DP Master and DP Slave operating modes, configurable through GE Proficy Machine Edition. In master mode, it cyclically polls up to 125 slave nodes per segment — including distributed I/O racks, variable-speed drives, intelligent valve positioners, and third-party field devices — at baud rates auto-negotiated from 9.6 kbps up to 12 Mbps. In slave mode, the Series 90-30 system integrates transparently into a higher-level PROFIBUS network controlled by a supervisory PLC or DCS, enabling hierarchical control architectures without gateway overhead.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The HE693PBS106 implements the PROFIBUS DP protocol stack in dedicated onboard firmware, offloading all fieldbus timing and token-management tasks from the Series 90-30 CPU. This architectural separation is significant: the CPU scan cycle is not burdened by DP bus arbitration overhead, and the module’s internal microcontroller maintains the DP token ring independently, guaranteeing that bus cycle times remain stable even when the CPU is executing computationally intensive ladder or function block routines.

The RS-485 physical layer uses differential signaling across a shielded twisted-pair cable, providing inherent common-mode noise rejection. At 12 Mbps, the maximum segment length is 100 m; at 93.75 kbps, it extends to 1,200 m — a range that covers most plant-floor topologies without repeaters. The DB9 connector pinout conforms to the EN 50170 standard, ensuring interoperability with PROFIBUS connectors from any compliant vendor.

EMC performance is addressed through the module’s board-level design: signal lines are routed with controlled impedance, and the RS-485 transceiver incorporates fail-safe biasing resistors that hold the bus in a defined idle state when no driver is active — preventing spurious data frames during power-up sequencing or cable disconnection events. The backplane connector uses gold-plated contacts rated for thousands of insertion cycles, maintaining low contact resistance over the module’s service life in environments subject to vibration and thermal cycling.

Diagnostic transparency is built into the hardware: onboard LED indicators report module power status, DP bus activity, and fault conditions at a glance, enabling maintenance personnel to isolate communication faults without connecting a laptop or opening the programming software. The module also supports GSD (General Station Description) file-based configuration, allowing third-party DP masters to enumerate the Series 90-30 as a slave device using standard tooling.

System Integration Benefits

• Deterministic Cycle Time: The onboard DP stack manages bus timing autonomously, delivering consistent I/O update rates independent of CPU scan load — critical for closed-loop control and motion coordination.
• Zero-Gateway Architecture: Native rack-mount integration eliminates external protocol converters, reducing BOM cost, panel space, and the latency introduced by gateway buffering.
• Dual-Mode Flexibility: Software-selectable Master/Slave operation allows the same hardware to serve in both standalone cell controllers and subordinate nodes within a plant-wide DCS hierarchy.
• Broad Interoperability: Full compliance with EN 50170 / IEC 61158 Type 3 ensures plug-and-play compatibility with PROFIBUS DP devices from Siemens, ABB, Schneider Electric, Phoenix Contact, and 300+ other certified vendors.
• Scalable Node Capacity: Support for up to 125 slave nodes per segment accommodates everything from compact manufacturing cells to large-scale process trains without additional master hardware.
• Fault Isolation via Diagnostics: Per-slave diagnostic data is passed to the CPU data table, enabling the application program to identify which specific field device has faulted — reducing mean time to repair (MTTR) compared to systems with opaque communication layers.
• Legacy System Longevity: Extends the operational life of installed Series 90-30 systems by providing a standards-compliant fieldbus interface, deferring costly platform migrations while maintaining network interoperability with modern devices.
• Reduced Wiring Density: A single PROFIBUS DP trunk cable replaces parallel discrete wiring to multiple field devices, cutting installation labor, conduit fill, and long-term maintenance overhead.
• Hot-Swap Rack Compatibility: When used in Series 90-30 racks that support module replacement procedures, field technicians can swap the HE693PBS106 without full system shutdown — minimizing production interruption during maintenance windows.
• GSD-Based Configuration: Standard GSD file support allows third-party engineering tools to configure the module as a DP slave, preserving investment in existing PROFIBUS configuration environments.
