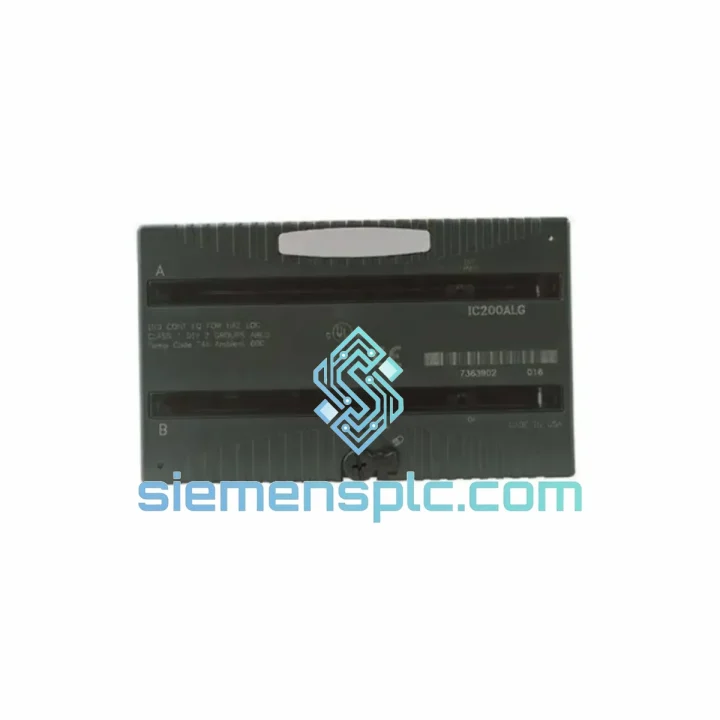

GE IC200ALG328E Analog Output Module – VersaMax

GE IC200ALG328E 8-Channel Analog Output Module — Precision Signal Control in VersaMax Distributed I/O Architecture

The GE IC200ALG328E is an 8-channel analog output module engineered for the VersaMax Modular I/O platform. Within a distributed control architecture, this module occupies the final stage of the control loop: it receives resolved setpoint data from the CPU via the local I/O bus and converts it into calibrated electrical signals — either 4–20 mA current or 0–10 V voltage — that drive field actuators such as control valves, variable frequency drives, and electro-pneumatic positioners. Its role is deterministic signal delivery with minimal latency between CPU scan completion and physical output update.

Unlike general-purpose DAC boards, the IC200ALG328E is designed around the VersaMax backplane communication protocol, which uses a synchronous, time-slotted bus architecture. Each module slot is allocated a fixed communication window per CPU scan cycle, ensuring that output updates are not subject to bus arbitration delays. This deterministic behavior is critical in closed-loop PID applications where output jitter directly translates to process instability.

The module supports per-channel configuration of output type (current or voltage), output range, and fault-state behavior. In the event of a CPU communication loss or watchdog timeout, each channel can be independently configured to hold its last value, ramp to a defined safe state, or de-energize — a capability that is essential for process safety in applications such as chemical dosing, steam pressure control, and hydraulic servo systems.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

DAC Architecture and Output Linearity: The IC200ALG328E employs a 12-bit digital-to-analog converter per output channel group. At 12-bit resolution, the current output range of 4–20 mA is divided into 4,096 discrete steps, yielding a step size of approximately 3.9 µA per LSB. For voltage output, the 0–10 V range resolves to approximately 2.44 mV per step. This resolution is sufficient for most industrial PID loops where the final control element (e.g., a globe valve with an equal-percentage characteristic) has a mechanical hysteresis band wider than the DAC step size.

Current Output Drive Topology: In 4–20 mA mode, the module operates as a current source with a compliance voltage headroom sufficient to drive loads up to 600 Ω. The sourcing topology means the module supplies the loop current, which is the standard configuration for two-wire and three-wire field instruments. The output stage includes short-circuit protection circuitry that limits fault current without latching the channel off, allowing automatic recovery when the fault condition clears.

Backplane Bus Synchronization: The VersaMax local I/O bus uses a master-slave polling architecture where the CPU module acts as bus master. The IC200ALG328E, as a slave node, receives its output data word during the CPU’s output update phase of the scan cycle. The module’s internal latch holds the DAC input stable between bus updates, preventing output glitches during the CPU logic-solve phase. This latch-and-hold mechanism ensures that the analog output remains stable for the full duration between scan cycles, which is particularly important for integrating actuators such as stepper-driven valve positioners.

EMC Design and Isolation: The module’s signal conditioning circuitry is referenced to the backplane common, with the output stage designed to minimize conducted emissions onto the field wiring. The output terminals are not galvanically isolated from the backplane in the standard configuration, which requires careful grounding practice in installations where field wiring runs through electrically noisy environments. GE’s application notes recommend using shielded twisted-pair cable with the shield grounded at the panel end only, and maintaining physical separation from high-voltage AC wiring in cable trays.

Watchdog and Fault State Logic: The module contains an internal communications watchdog timer. If the backplane bus master (CPU) fails to update the module within the configured timeout window — due to CPU fault, rack power loss, or bus cable failure — the watchdog triggers and each channel transitions to its pre-configured fault state. This is a hardware-level safety mechanism that operates independently of the application program, providing a deterministic response to controller failure without relying on software intervention.

System Integration Benefits

• Deterministic Output Latency: Output data is updated synchronously with the CPU scan cycle via the VersaMax backplane bus, eliminating non-deterministic delays associated with fieldbus-based remote I/O. This is measurable: in a 10 ms scan cycle system, the maximum output latency from CPU logic solve to field signal update is bounded to one scan period.
• Per-Channel Output Mode Selection: Each of the 8 channels can be independently configured for current (4–20 mA) or voltage (0–10 V) output without hardware jumpers, using the GE Proficy Machine Edition software. This eliminates the need for separate module SKUs for mixed-signal installations.
• Configurable Fault-State Behavior: Per-channel fault state configuration (hold / preset / de-energize) allows the control system designer to implement process-appropriate safe states without external relay logic or additional safety PLCs for non-SIL applications.
• 12-Bit Resolution for Closed-Loop Accuracy: The 4,096-step resolution supports PID control loops where the manipulated variable requires fine granularity — for example, a 0–100% valve position command resolved to 0.024% increments, which is below the mechanical resolution of most pneumatic actuators.
• Compact Single-Slot Form Factor: The module occupies one slot in the VersaMax carrier, allowing up to 8 analog output channels in a single slot position. This maximizes I/O density in space-constrained panel designs.
• Direct Compatibility with VersaMax CPU and Carrier Ecosystem: The IC200ALG328E is fully compatible with IC200CPUE05, IC200CPU001, IC200CPU002 CPUs and IC200CHS002/005/022 carriers, requiring no adapter modules or protocol converters.
• Software-Configurable Scaling: Output scaling (engineering unit to raw count mapping) is handled in the CPU’s I/O configuration table, allowing the application program to write directly in engineering units (e.g., 0.0 to 100.0% or 0 to 1500 RPM) without requiring scaling code in the ladder logic.
• Diagnostic Transparency via CPU Status Words: The module reports channel-level diagnostic status (open-circuit detection in current mode, over-range conditions) back to the CPU via the backplane bus. These status bits are mapped to the CPU’s I/O fault table and can be used to trigger alarms or safe-state routines in the application program without external diagnostic hardware.

Quality Assurance & Global Logistics

Every IC200ALG328E unit supplied by siemensplc.com is sourced through verified industrial supply channels with full traceability documentation. Prior to dispatch, each module undergoes a structured inspection protocol: physical label and firmware revision verification against GE factory standards, connector and housing integrity check, and functional output verification using calibrated bench test equipment where applicable. Units are packed in anti-static ESD-safe packaging with desiccant, suitable for long-haul air and sea freight.

Shipments originate from our warehouse in Xiamen, China (Fujian Province), a major export hub with direct access to international freight carriers. Standard export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment. For project-based procurement requiring customs pre-clearance documentation or HS code declarations, our logistics team can prepare the full documentation package in advance.

Freight options: DHL Express (3–5 business days to most destinations), FedEx International Priority, UPS Worldwide Expedited, and sea freight (LCL/FCL) for bulk orders. In-stock units are dispatched within 1–2 business days of order confirmation. A 12-month warranty covers all units against manufacturing defects from the date of shipment.
