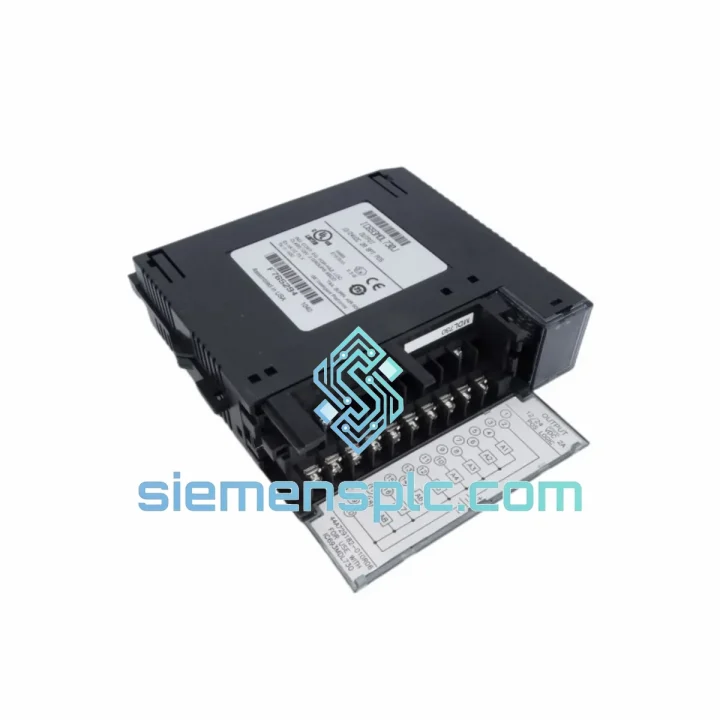

GE IC693MDL730 Discrete Output Module

IC693MDL730 Down? Every Minute of Downtime Costs You Money — We Ship Today

A failed GE IC693MDL730 on a Series 90-30 rack doesn’t wait for procurement cycles. Output channels go dark, solenoids stop responding, and your line grinds to a halt. We stock the IC693MDL730 in Xiamen and dispatch same-day on confirmed orders. While your team is still diagnosing the fault, your replacement module is already moving.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IC693MDL730 fails in predictable patterns. Here’s what ten years of field calls have taught:

Fault Code %I / %Q Mismatch After Hot-Swap: The Series 90-30 rack uses slot-based I/O addressing. When you pull the MDL730 and insert a replacement, the CPU retains the original I/O map — no re-addressing required provided the replacement occupies the same slot. Confirm slot position before powering up. If the module lands in a different slot, you must update the hardware configuration in Proficy Machine Edition and perform a store-to-PLC.

Output Channel Stuck ON / OFF: Before condemning the module, check the field-side commons. The MDL730 groups 32 outputs into four 8-point commons. A blown fuse or open wire on one common kills eight channels simultaneously while the other three groups remain functional. Measure voltage at each common terminal before pulling the card.

LED Indicators Dark on All 32 Points: This almost always points to a backplane power issue rather than the module itself. Verify the Series 90-30 power supply (IC693PWR321/322/330/331) output rails — specifically the 5 VDC backplane bus. A sagging 5 V rail will cause the MDL730 to enumerate but refuse to drive outputs. Swap the PSU first; it’s faster than chasing a module fault.

Replacement Steps (Field Procedure):

1. Place the CPU in STOP mode via the keyswitch or programmer. Do not rely on software STOP alone if field devices are energized.
2. De-energize the field-side 24 VDC supply feeding the MDL730 output commons. Verify with a meter — optical isolation protects the logic side, not your hands.
3. Disconnect field wiring from the terminal block. Label each wire group by common number (C1–C4) before removal.
4. Release the module locking tab and extract the IC693MDL730 from the rack slot.
5. Insert the replacement module into the same slot. Seat firmly until the locking tab clicks.
6. Reconnect field wiring in reverse order. Torque terminal screws to 0.5 N·m.
7. Re-energize field supply, then place CPU in RUN mode. Verify all 32 output LEDs respond to logic commands within the first scan cycle.
8. If any channel fails to respond, use Proficy ME Force Table to individually force each output point and isolate the fault to field wiring or the module.

Firmware Note: The IC693MDL730 carries no user-programmable firmware. There are no DIP switches, no jumpers, and no address configuration required. Slot position alone determines the I/O reference address. This makes field replacement straightforward — no configuration tools needed at the module level.

Reliability in Harsh Conditions

Series 90-30 hardware was engineered for the factory floor, not the server room. The IC693MDL730 is built to operate continuously in environments that would kill consumer-grade electronics within weeks.

The module’s optical isolation barrier physically separates the 12/24 VDC field side from the 5 VDC logic backplane. Inductive load switching — solenoids, relays, motor starters — generates voltage spikes that optical isolation absorbs without propagating to the CPU. In practice, this means a shorted field device damages the output transistor on that channel, not the CPU or adjacent modules.

Vibration tolerance is achieved through conformal-coated PCBs and through-hole component mounting on critical signal paths. Installations on compressor skids, press frames, and conveyor drives routinely log five-plus years of continuous operation without module failure. The operating temperature ceiling of 60 °C accommodates poorly ventilated enclosures in foundries and outdoor cabinets in tropical climates.

Humidity resistance is built into the conformal coating process. Condensation events — common in coastal and high-humidity industrial zones — do not cause immediate failure. The coating prevents surface tracking between conductors even when moisture is present on the PCB surface.

Every unit we ship has been stored in climate-controlled conditions with anti-static packaging. Long-term shelf storage degrades electrolytic capacitors; we rotate stock and do not ship modules that have been warehoused beyond recommended storage periods.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. This geography is not accidental. Xiamen’s customs infrastructure handles industrial electronics exports daily, which means your IC693MDL730 clears export customs faster than shipments originating from inland warehouses.

Standard Express Timeline (DHL / FedEx International Priority):

• Order confirmed + payment received before 14:00 CST → same-day dispatch
• Southeast Asia (SG, MY, TH, VN, ID): 2–3 business days door-to-door
• Europe (DE, NL, FR, IT, PL, UK): 3–5 business days door-to-door
• North America (US, CA, MX): 3–5 business days door-to-door
• Middle East (AE, SA, QA, KW): 3–4 business days door-to-door
• Australia / New Zealand: 3–4 business days door-to-door

We prepare full export documentation: commercial invoice, packing list, HS code declaration (HS 8537.10), and EEI filing where required. For customers in countries with import duty sensitivities, we can advise on declared value structuring within legal compliance boundaries.

Bulk orders (5+ units) qualify for sea freight consolidation with lead times of 15–25 days to major ports. Contact us for FCL/LCL pricing on large BOM requirements.

All shipments include tracking numbers issued within 2 hours of dispatch. We monitor shipments proactively and intervene with the carrier if a package stalls in customs or transit.
