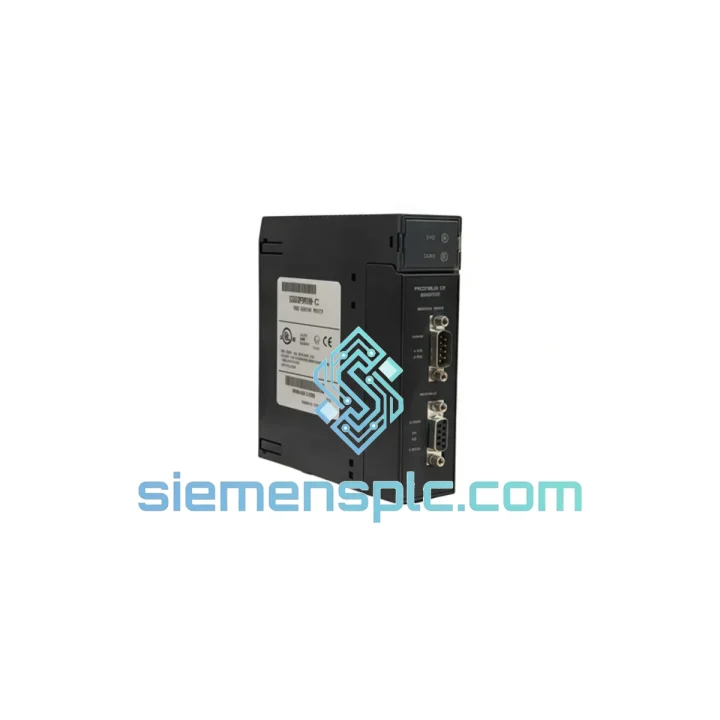

GE IC693PBS201 PLC Communication Module – Series 90-30

IC693PBS201 — PROFIBUS-DP Slave Interface for GE Series 90-30 Distributed Control Architecture

The IC693PBS201 is GE Fanuc’s dedicated PROFIBUS-DP slave communication module engineered for the Series 90-30 PLC platform. Its primary function within a control loop is to decouple fieldbus communication processing from the CPU scan cycle: an onboard Siemens SPC3 ASIC (or equivalent DP slave controller) manages all PROFIBUS-DP protocol state machines autonomously, transferring cyclic I/O data to and from the Series 90-30 backplane bus without interrupting the CPU’s ladder execution. This architecture guarantees that PROFIBUS polling latency does not propagate into PLC scan jitter — a non-negotiable requirement in motion-adjacent and safety-instrumented system (SIS) support roles.

In distributed manufacturing environments, the IC693PBS201 positions a Series 90-30 rack as a DP slave node under any IEC 61158-compliant PROFIBUS-DP master — including Siemens S7-300/400 CP modules, ABB AC500 master interfaces, and GE RX3i PROFIBUS master cards. The module exchanges up to 244 bytes of input data and 244 bytes of output data per DP cycle, mapping directly into the CPU’s %I and %Q reference tables. This transparent mapping means no special ladder function blocks are required; the fieldbus data appears as standard discrete or register I/O to the application program.

Deployed across automotive body-in-white lines, chemical batch reactors, water treatment pump stations, and power plant auxiliary control panels, the IC693PBS201 has accumulated a substantial installed base in facilities where PROFIBUS-DP remains the fieldbus standard of record. Its single-slot form factor preserves backplane real estate in constrained 5-slot or 10-slot Series 90-30 baseplates, and its auto baud-rate detection eliminates commissioning errors in multi-segment networks operating at mixed speeds.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC693PBS201’s hardware architecture centers on a dedicated DP slave ASIC that implements the full PROFIBUS-DP state machine in silicon, independent of the host CPU. This design choice has three measurable consequences for system behavior:

1. Backplane Bus Arbitration: The module interfaces to the Series 90-30 I/O bus as a standard I/O card. During each PLC scan, the CPU performs a single DMA-style block transfer to synchronize the module’s dual-port RAM with the %I/%Q reference tables. The transfer window is bounded and deterministic — typically completing within one I/O bus arbitration cycle (<1 ms at standard scan rates). This means PROFIBUS network latency (which can vary with segment load and baud rate) is fully absorbed by the module’s internal buffer and never appears as scan-time variability to the CPU.

2. EMC and Signal Integrity Design: The DB-9 RS-485 interface incorporates bus termination resistor provisions compliant with EN 50170 Annex A. The PCB layout isolates the RS-485 transceiver ground plane from the backplane logic ground, providing functional isolation that attenuates common-mode noise from long cable runs (up to 1,200 m at 93.75 kbps). Ferrite bead filtering on the backplane power rails suppresses high-frequency switching noise from adjacent I/O modules — a critical consideration in mixed-signal racks containing analog I/O cards.

3. GSD-Based Configuration and Parameterization: The module ships with a GSD (General Station Description) file that encodes all supported I/O configurations, baud rates, and user-parameterizable options in a standardized format. Any PROFIBUS-DP master engineering tool — STEP 7, TIA Portal, Sycon.net, or third-party configurators — can import this GSD file and generate the correct DP configuration telegram without manual byte-level programming. This eliminates a common commissioning error class: mismatched I/O length declarations between master and slave.

4. Watchdog and Fail-Safe Behavior: The onboard DP slave controller implements the PROFIBUS-DP watchdog timer per IEC 61158. If the master fails to poll the IC693PBS201 within the configured watchdog timeout, the module transitions to a safe state: output data is cleared (set to zero) and a diagnostic flag is set in the Series 90-30 fault table. This behavior is configurable via the GSD parameterization and allows the application engineer to define a deterministic fail-safe response without custom ladder logic.

System Integration Benefits

• Scan-Time Isolation: All PROFIBUS-DP protocol processing executes on the module’s dedicated ASIC. The Series 90-30 CPU scan time is unaffected by network load, segment length, or number of DP cycles per second — preserving deterministic ladder execution for time-critical control loops.
• Transparent %I/%Q Mapping: Incoming DP output data from the master maps directly to the CPU’s %I reference table; %Q data maps back as DP input data. No special communication function blocks or MSG instructions are required — the fieldbus interface is indistinguishable from local I/O to the application program.
• Universal Master Compatibility: The GSD file enables configuration in any IEC 61158-compliant master engineering environment. The IC693PBS201 has been validated with Siemens S7-300/400, S7-1500 (via legacy DP master), ABB AC500, Schneider Modicon Premium, and GE RX3i PROFIBUS master modules.
• Auto Baud Rate Synchronization: The module detects and locks to the master’s baud rate at startup without manual DIP switch or software configuration. This eliminates a common commissioning fault in multi-vendor networks where baud rate mismatches cause silent communication failures.
• Diagnostic Transparency: PROFIBUS-DP diagnostic telegrams (DPV0 diagnostics) are surfaced in the Series 90-30 fault table, providing the application engineer with real-time visibility into network status, slave address conflicts, and watchdog events — without requiring a separate PROFIBUS diagnostic tool during normal operation.
• Minimal Backplane Footprint: Single-slot occupation preserves rack slots for I/O expansion. In a 10-slot Series 90-30 baseplate with a CPU in slot 1, the IC693PBS201 in slot 2 leaves eight slots available for discrete and analog I/O modules — maximizing I/O density per rack.
• Deterministic Fail-Safe Transition: Configurable watchdog timeout ensures that loss of PROFIBUS master communication triggers a defined safe-state output condition within a bounded time window, supporting functional safety analysis (FMEA/HAZOP) for the control loop.
• Long-Term Spare Parts Availability: The Series 90-30 platform has an extensive installed base globally. The IC693PBS201 remains available as a spare part through authorized distributors and certified secondary-market suppliers, supporting 20+ year plant lifecycle requirements without forced migration to newer platforms.

Quality Assurance & Global Logistics

Every IC693PBS201 unit offered through siemensplc.com is sourced from traceable supply channels: authorized GE Fanuc distributors, OEM decommissioned equipment with documented service history, and certified refurbishers operating under ISO 9001-aligned quality management systems. Each unit undergoes a structured pre-shipment inspection protocol:

• Visual Inspection: PCB surface, component seating, DB-9 connector pin integrity, label authenticity, and housing condition assessed against GE Fanuc factory standards.
• Functional Power-On Test: Module installed in a Series 90-30 test rack; backplane communication verified; LED status indicators confirmed against GFK-1534 diagnostic codes.
• PROFIBUS-DP Communication Verification: Cyclic data exchange with a reference DP master confirmed at 1.5 Mbps and 12 Mbps baud rates; I/O data integrity validated across full 244-byte payload.
• Firmware Version Confirmation: Onboard firmware version recorded and cross-referenced against GE Fanuc release documentation.
• ESD-Safe Packaging: Anti-static bag, foam-lined carton, and humidity indicator card. Outer carton labeled with part number, serial number, and inspection date.

Shipments originate from our warehouse in Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard transit times: 3–5 business days to Europe and North America; 2–4 business days to Southeast Asia and the Middle East. Full export documentation is provided with every shipment: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) for customs clearance. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty: 12-month replacement warranty. If a defect in materials or workmanship is confirmed within the warranty period, a replacement unit is dispatched within 5 business days of defect verification — no charge for parts or outbound shipping.
