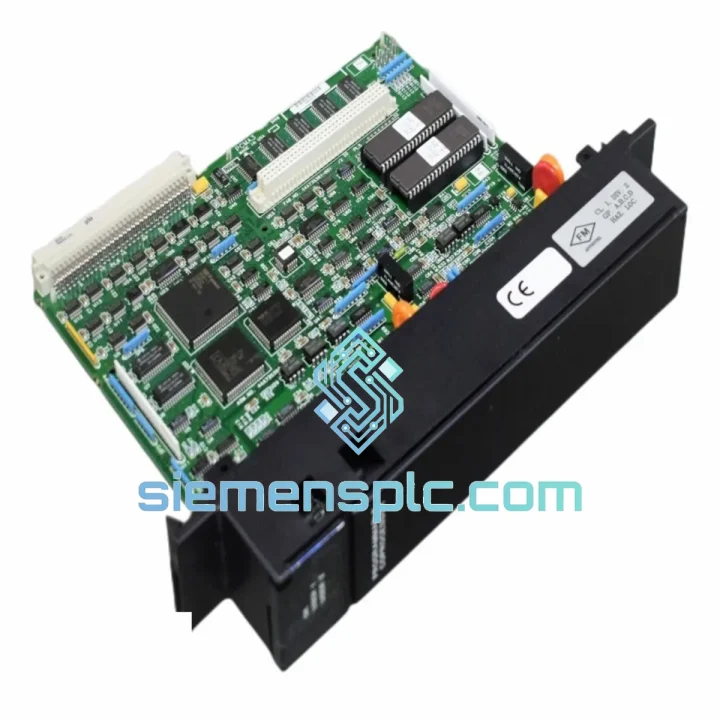

GE IC697PCM711 Programmable Coprocessor Module – Series 90-70

GE IC697PCM711 Series 90-70 Programmable Coprocessor Module — Offload Architecture for Deterministic Industrial Control

The IC697PCM711 is a single-slot programmable coprocessor module designed for the GE Series 90-70 rack architecture. Its core function is to execute application-specific C-language programs in parallel with the main CPU scan cycle, decoupling computationally intensive tasks from the primary ladder logic execution thread. This separation of concerns is not cosmetic — it is a deliberate architectural decision that allows engineers to achieve sub-millisecond algorithm execution without inflating the CPU scan time or introducing jitter into time-critical control loops.

In process industries where a 10 ms scan overrun can trigger a safety interlock or cause a coordinated drive system to lose synchronization, the IC697PCM711 provides a structurally sound solution: a dedicated 80C186 processor running at full speed, sharing data with the host CPU through a dual-port RAM interface on the Series 90-70 backplane. The result is a tightly coupled coprocessing architecture with deterministic latency characteristics that ladder logic alone cannot deliver.

📧 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Port RAM Arbitration and Backplane Bus Coupling

The IC697PCM711 communicates with the Series 90-70 CPU through a shared dual-port RAM block embedded in the backplane interface logic. Both the PCM’s 80C186 processor and the host CPU can read from and write to this shared memory space concurrently, with hardware arbitration resolving simultaneous access conflicts at the gate level — not through software semaphores. This eliminates the software overhead and non-determinism associated with interrupt-driven communication schemes. The arbitration cycle time is fixed in silicon, giving engineers a predictable worst-case latency figure for data exchange that does not vary with system load.

80C186 Processor Architecture and Execution Isolation

The Intel 80C186 is a fully integrated 16-bit processor with on-chip DMA controllers, programmable interrupt controllers, and timer units. In the IC697PCM711 implementation, the 80C186 runs its own program loop entirely independently of the Series 90-70 CPU scan. There is no shared clock domain between the two processors. This means a computationally heavy algorithm — such as a recursive least-squares estimator or a fast Fourier transform for vibration analysis — running on the PCM will not extend the CPU scan period by a single microsecond. The two execution threads are physically decoupled at the processor level.

Battery-Backed SRAM and Flash EPROM Separation

The module separates volatile working data (512 KB battery-backed SRAM) from non-volatile program storage (Flash EPROM). This architecture means the compiled C application survives power loss without battery support, while runtime variables and intermediate computation results are preserved across momentary outages by the lithium backup cell. On power restoration, the PCM resumes execution from a known state without requiring a program re-download from the host CPU — a critical characteristic for processes where restart time is measured in production cost.

EMC Design Considerations

The Series 90-70 backplane provides a ground plane that shields the module’s signal traces from common-mode noise injected by adjacent high-current I/O modules. The IC697PCM711’s board layout follows GE’s standard EMC design rules for industrial rack systems, including controlled impedance traces on the backplane interface lines and decoupling capacitors placed at the processor’s power pins. In environments with significant conducted or radiated interference — such as motor drive cabinets or arc furnace control rooms — the module’s CE-certified EMC compliance provides a documented baseline for installation engineers performing site-level EMC assessments.

System Integration Benefits

• Scan-Time Independence: Custom algorithms execute on the PCM’s dedicated processor without consuming any portion of the Series 90-70 CPU scan budget. Engineers can add complex math functions to a system without triggering watchdog timeouts or requiring CPU upgrades.
• Deterministic Data Exchange: Hardware-arbitrated dual-port RAM provides a fixed, predictable latency for data transfer between the PCM and the host CPU — no polling loops, no interrupt latency variability, no OS scheduling uncertainty.
• Custom Protocol Implementation: The PCM’s C programming environment allows engineers to implement proprietary serial communication protocols, legacy device interfaces, or custom fieldbus adapters that are not available as standard Series 90-70 I/O modules.
• Closed-Loop Algorithm Offloading: High-frequency PID loops, model predictive control (MPC) algorithms, and adaptive gain schedulers can run on the PCM at update rates faster than the main CPU scan, improving control loop bandwidth without hardware replacement.
• Diagnostic Data Pre-Processing: The PCM can perform signal conditioning, filtering, and alarm evaluation on raw sensor data before passing processed values to the CPU, reducing the volume of data the CPU must handle and improving diagnostic transparency at the HMI level.
• Reduced System Footprint: A single IC697PCM711 in one rack slot replaces what would otherwise require an external industrial PC, a separate communication gateway, or a dedicated signal processing unit — reducing panel space, wiring complexity, and potential failure points.
• Long-Term Platform Compatibility: The Series 90-70 architecture has a multi-decade installed base in heavy industry. The IC697PCM711 integrates without firmware changes into existing racks, preserving capital investment in proven control infrastructure.
• Flexible Memory Partitioning: The 512 KB SRAM can be partitioned by the application developer between program working data, communication buffers, and historical data logging — giving engineers direct control over memory allocation without operating system overhead.

Quality Assurance & Global Logistics

Every IC697PCM711 unit offered through siemensplc.com is sourced as genuine GE original hardware. Before any unit is prepared for shipment, it passes through a structured inspection protocol conducted at our Xiamen, China facility:

• Board-Level Visual Inspection: Each module is examined under magnification for physical damage, oxidation on connector pins, burnt components, and counterfeit indicators including label inconsistencies and non-standard component markings.
• Part Number and Revision Verification: The IC697PCM711 part number, hardware revision code, and date code are cross-referenced against GE’s published documentation to confirm authenticity and revision-level compatibility.
• Functional Verification: Where test fixtures are available, modules are powered via a Series 90-70 rack and backplane communication is confirmed prior to packaging.
• ESD-Controlled Packaging: All units are packaged in anti-static bags, cushioned with conductive foam, and shipped in double-wall corrugated cartons rated for international freight handling.
• Full Traceability Record: Each unit is logged with source documentation, inspection date, inspector identification, and outbound shipment tracking number.
• 12-Month Warranty: Coverage against defects in materials and workmanship from the date of shipment. Warranty claims are handled directly by our technical team with a documented response commitment.

Shipments originate from Xiamen, China. Domestic China orders are dispatched within 1–3 business days. International orders ship via DHL Express or FedEx International Priority, with full export documentation including commercial invoice, packing list, and certificate of origin. Transit time to major industrial hubs in Europe, North America, and Southeast Asia is typically 3–7 business days. Urgent requirements can be accommodated — contact us directly to discuss expedited options.
