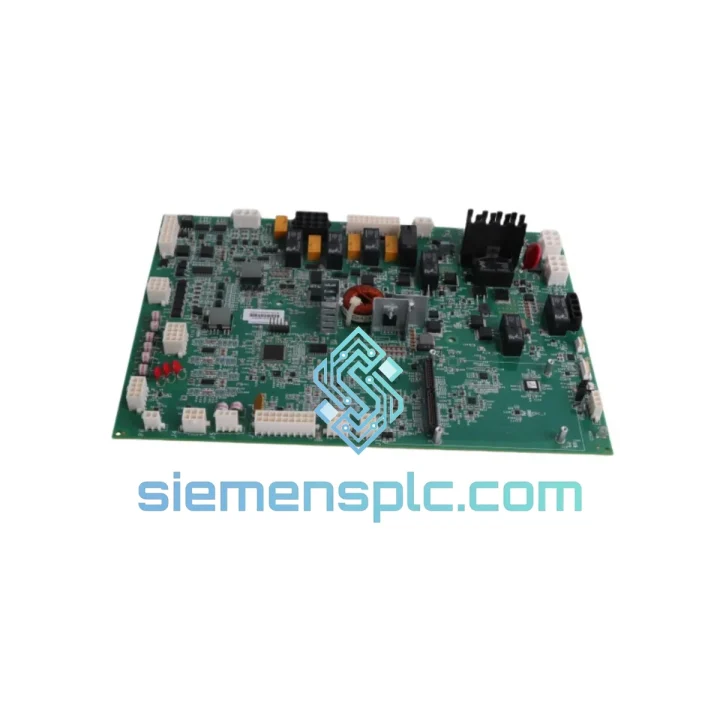

GE IS200AEPAH1BPH Analog I/O Module

IS200AEPAH1BPH Down? Every Minute of Turbine Downtime Costs You Real Money — We Ship Today

A tripped analog loop. A faulted I/O card. A gas turbine offline at 02:00. If you’re reading this, you already know what’s at stake. The GE IS200AEPAH1BPH is a critical analog input/output module in the Mark VIe distributed control platform — and when it fails, the entire unit can go dark. We stock this module in Xiamen and can have it on a DHL Express flight within hours of your order confirmation. No waiting for OEM lead times. No broker runaround. Just a verified, tested module moving toward your site.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Failure Signatures on IS200AEPAH1BPH:

In the field, this module tends to fail in three predictable patterns. The first is a hard fault — the Mark VIe controller throws an IOPACK COMM LOSS or ANALOG MODULE FAULT alarm and the module LED goes solid red or amber. This is usually a complete module failure, often triggered by a transient voltage spike on the IONet bus or a field wiring short that exceeded the module’s protection threshold. The second pattern is a soft drift fault — one or more analog input channels begin reporting values that are 2–5% off from the field transmitter, causing the control loop to hunt or saturate. This is frequently misdiagnosed as a transmitter issue; always cross-check with a calibrated HART communicator before condemning the transmitter. The third pattern is intermittent communication loss — the module drops off IONet periodically, often correlated with ambient temperature swings. This points to a failing solder joint on the IONet connector or a degraded backplane edge connector.

Step-by-Step Hot-Swap Replacement Procedure:

Before pulling the module, confirm with the control room that the affected I/O block can be taken out of service without tripping the unit. In TMR configurations, the Mark VIe will continue operating on the remaining two modules — verify voter status in ToolboxST before proceeding. In simplex configurations, coordinate a controlled hold on the affected control loop.

1. In ToolboxST, navigate to the I/O pack associated with IS200AEPAH1BPH and set the module to Maintenance Mode to suppress nuisance alarms during the swap. 2. Disconnect field wiring at the terminal board — label each wire or photograph the terminal strip before disconnection. The IS200AEPAH1BPH uses a dedicated I/O terminal board (e.g., IS200TBCIH1C); do not remove the terminal board itself unless it is also suspect. 3. Release the module locking tab and slide the IS200AEPAH1BPH out of the I/O pack enclosure. Handle by the card edges only — the analog circuitry is sensitive to ESD. 4. Inspect the backplane connector on the replacement module for bent pins before insertion. Slide the new module in until the locking tab clicks. 5. In ToolboxST, the controller should auto-detect the new module within 30–60 seconds and begin the self-addressing sequence. The module will pull its configuration from the controller — no manual DIP switch addressing is required on IS200AEPAH1BPH (unlike older Mark VI I/O cards). 6. Verify all analog channels return to expected values. Run a loop check on at least two channels before releasing the loop back to automatic control. 7. Clear the maintenance mode flag and confirm no residual alarms in the event log.

Firmware Compatibility Note: If the replacement module has a different hardware revision suffix (e.g., H1BPH vs H1APH), verify firmware compatibility in the GE Mark VIe release notes for your controller firmware version. Mismatched firmware can cause the module to fail initialization silently — the LED will appear normal but the module will not respond to IONet polling.

Reliability in Harsh Conditions

The IS200AEPAH1BPH was designed for continuous duty in environments that would destroy consumer-grade electronics within weeks. GE’s Mark VIe I/O modules undergo vibration testing per IEC 60068-2-6, simulating the mechanical stress of gas turbine enclosures where broadband vibration from 10 Hz to 500 Hz is a constant reality. The module’s conformal-coated PCB provides a barrier against condensation, salt fog, and airborne hydrocarbon contamination — conditions common in coastal power plants and offshore platforms. Thermal cycling qualification covers the full −40°C to +85°C storage range, ensuring the module survives cold-start conditions in unheated equipment rooms in northern climates. The galvanic isolation architecture protects the module’s internal circuitry from ground loops and common-mode transients that routinely exceed 500 V in heavy industrial environments. In practice, IS200AEPAH1BPH modules installed in well-maintained Mark VIe cabinets routinely achieve 10+ years of continuous operation — failures are almost always traceable to external causes: wiring faults, power quality events, or physical damage during maintenance.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx Express gateway access. For urgent orders confirmed before 15:00 CST, same-day dispatch is standard. Transit times to major industrial hubs: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, North America 3–5 days. Every shipment includes a commercial invoice, packing list, and certificate of origin for customs clearance. ESD-safe packaging — anti-static bag, foam-lined double-wall carton, humidity indicator card — is standard on all module shipments. We provide full DHL/FedEx tracking numbers within 2 hours of dispatch. For projects requiring multiple modules or phased delivery, we can hold allocated stock and ship against your schedule. Import duty and HS code guidance is available on request for your destination country.
