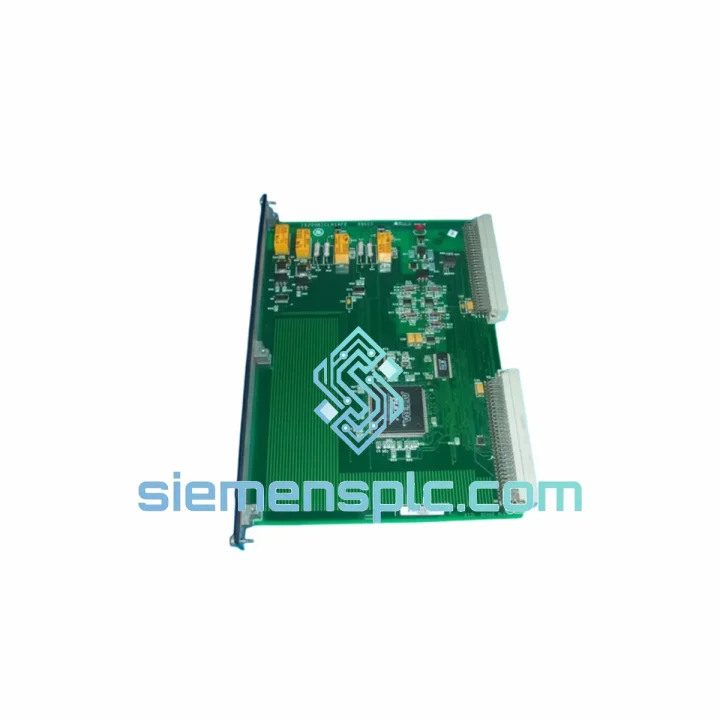

GE IS200BICLH1AFE Interface Circuit Board

IS200BICLH1AFE Down? Every Minute of Turbine Downtime Costs You Real Money — We Ship Today

A failed IS200BICLH1AFE doesn’t just trip an alarm — it shuts down your gas turbine, halts your combined-cycle unit, and starts a clock that costs your facility anywhere from $10,000 to $80,000 per hour in lost generation capacity. We’ve seen it happen on Frame 7FA units mid-summer peak demand, on 9E compressor trains in the middle of a pipeline contract, and on offshore platforms where the next supply boat is three days out. The IS200BICLH1AFE is the I/O interface backbone of the GE Mark VI control system. When it fails, nothing else matters until it’s replaced.

siemensplc.com maintains verified stock of the IS200BICLH1AFE, fully tested and ready for same-day dispatch from Xiamen. We don’t broker. We don’t drop-ship from unknown warehouses. The unit on this page has been bench-tested, revision-confirmed, and packed in ESD-safe export cartons before you even place the order.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls on Mark VI systems, here’s what actually goes wrong with the IS200BICLH1AFE and what you need to know before you pull the card:

Common Failure Signatures:

• L3DIAG fault / IOPACK offline alarm: The BIC board has lost communication with the VCMI controller. Before condemning the IS200BICLH1AFE, check the VME backplane connector pins for fretting corrosion — this is the #1 misdiagnosis on aging Mark VI racks. Clean with DeoxIT D5 and reseat. If the fault persists after reseating, the BIC board itself is the culprit.
• Analog input channels reading rail (0 mA or 20 mA fixed): Internal A/D converter failure. This is not recoverable in the field. Board swap is the only fix. Note which terminal board (TBCI, TBQC, or TBAI) is connected — you’ll need to verify the terminal board is intact before assuming the BIC is the sole failure point.
• Discrete output channels stuck ON or OFF: Check for blown output driver ICs first using the Mark VI diagnostic display (I/O Diagnostics → BICLH → Output Status). If the diagnostic confirms driver failure, proceed with board replacement.
• Intermittent L3IOERR during high-vibration events: Solder joint fatigue on the VME edge connector. Common on turbines with chronic high-frequency vibration (compressor surge events, blade rub). Replacement is the correct action — re-soldering in the field is not recommended.

Replacement Procedure — Critical Steps:

• Step 1 – Confirm revision suffix: The IS200BICLH1AFE revision suffix (AFE) must match your existing board. Mismatched revisions can cause ToolboxST configuration mismatches. Check the label on the board being removed before ordering.
• Step 2 – Record I/O configuration: Before pulling the card, export the current I/O configuration from ToolboxST (File → Export → I/O Configuration). This is your recovery baseline if the replacement board requires re-download.
• Step 3 – Power sequence: Mark VI does NOT require a full rack power-down for a single BIC board swap in a non-TMR configuration. However, in TMR systems, coordinate with your control room — the system will enter 2-of-3 voting mode during the swap window. Notify operations before proceeding.
• Step 4 – No DIP switch settings on IS200BICLH1AFE: Unlike some older Mark V I/O boards, the IS200BICLH1AFE uses auto-addressing via the VME backplane slot position. Slot assignment is handled by ToolboxST configuration, not hardware jumpers. Seat the board in the same slot as the failed unit.
• Step 5 – Firmware download: After seating the replacement board, ToolboxST will detect the new board and prompt for a firmware download. This is normal. The download takes approximately 3–8 minutes depending on I/O count. Do not interrupt power during this sequence.
• Step 6 – Verify channel-by-channel: After download completes, run a full I/O check from the Mark VI diagnostic display. Confirm all analog channels are reading within ±0.1% of expected values before returning the unit to automatic control.

Reliability in Harsh Conditions

The IS200BICLH1AFE was not designed for a climate-controlled server room. It was built for the inside of a gas turbine control enclosure — an environment that combines 55°C ambient temperatures, 95% relative humidity during coastal monsoon seasons, continuous 2–50 Hz vibration from the turbine foundation, and electromagnetic interference from high-voltage switchgear in adjacent bays.

The board’s conformal coating (applied to IPC-CC-830B standard) seals the PCB surface against moisture ingress and corrosive atmospheres including H₂S-bearing environments common in oil and gas applications. The VME card guide and ejector mechanism are rated for 500+ insertion cycles without contact degradation — relevant for sites that perform quarterly preventive maintenance card reseating.

In TMR configurations, three IS200BICLH1AFE boards operate in parallel with continuous cross-comparison. The Mark VI controller will flag a single board deviation without tripping the unit, giving maintenance teams a planned replacement window rather than an emergency shutdown. This architecture is why Mark VI systems achieve 99.98%+ availability in baseload power generation — but only when the replacement supply chain is solid. A board sitting on a 6-week lead time from the OEM destroys that availability figure entirely.

Our stock is stored in a temperature and humidity-controlled warehouse (20–25°C, 40–60% RH) with continuous ESD protection. Boards are not pulled from shelf until order confirmation to prevent unnecessary handling cycles.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with direct DHL and FedEx Express lanes to major industrial hubs worldwide. Here’s how the logistics chain works from the moment you confirm your order:

• Order Confirmation → Same-Day Cutoff: Orders confirmed before 14:00 CST are packed and handed to the carrier the same business day. Orders after 14:00 ship the following morning.
• Export Documentation: Commercial invoice, packing list, Certificate of Origin (Form E for ASEAN preferential tariff where applicable), and ESD handling declaration are prepared in parallel with packing. No customs delays from missing paperwork.
• Carrier Options: DHL Express Worldwide (standard), FedEx International Priority (alternative), or TNT Economy Express for non-urgent shipments. Carrier is selected based on destination country’s service reliability — we do not default to the cheapest option when downtime is at stake.
• Transit Times (typical): Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, North America 3–5 days, South America 4–6 days. These are door-to-door estimates under normal customs clearance conditions.
• Tracking: AWB number provided within 2 hours of carrier pickup. We monitor shipments proactively — if a customs hold or routing exception occurs, we contact you before you have to ask.
• Import Duty Guidance: HS Code 8537.10 applies to most destinations. We can provide a formal quotation with declared value structured to minimize import duty burden within legal compliance requirements. Ask your account contact for details.

We’ve shipped IS200BICLH1AFE boards to power plants in Saudi Arabia, compressor stations in Kazakhstan, offshore platforms in the North Sea, and co-generation facilities in Southeast Asia. The logistics process is not theoretical — it’s been stress-tested on real emergency orders where the customer’s turbine was already down when they called.
