GE IS200BPIBG1A IS200BPIBG1AEB Terminal Board – Mark VI

GE IS200BPIBG1A / IS200BPIBG1AEB Terminal Board: Signal Interface Architecture in Mark VI Turbine Control Loops

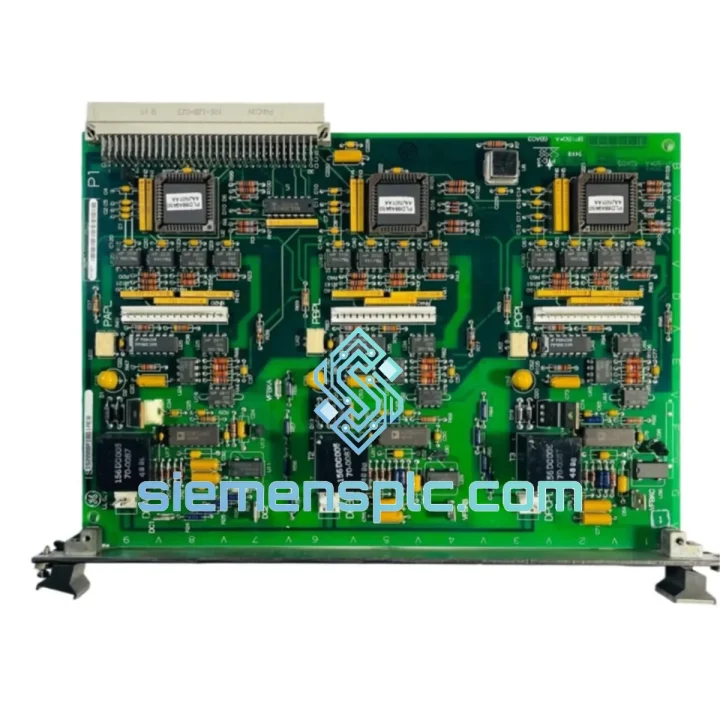

The GE IS200BPIBG1A and its functionally equivalent variant IS200BPIBG1AEB are dedicated terminal interface boards engineered for deployment within GE’s Mark VI turbine control platform — a distributed, triple-redundant control architecture widely used in gas turbine, steam turbine, and combined-cycle power generation facilities. The board’s primary function is to serve as the physical signal termination layer between field instrumentation and the Mark VI I/O processor modules, translating raw field wiring into conditioned, bus-compatible signals that the control system can process with deterministic latency.

Within the Mark VI control loop, the IS200BPIBG1A occupies the boundary between the field junction and the I/O module rack. Field cables — carrying 4–20 mA analog signals, discrete contact closures, RTD inputs, or thermocouple pairs — land directly on the board’s screw-terminal blocks. The board then routes these signals through its internal passive and active conditioning network before presenting them to the mating I/O module via a high-density backplane connector. This architecture decouples field wiring from the I/O module itself, enabling module hot-swap without disturbing field terminations — a critical operational advantage in continuous-process environments where planned outages are measured in hours, not days.

The IS200BPIBG1AEB suffix designates an enhanced-build variant with conformal coating applied to the PCB assembly, providing additional protection against humidity, condensation, and airborne contaminants in turbine enclosure environments where ambient conditions can deviate significantly from standard industrial ratings. Both variants share identical electrical specifications and are interchangeable at the system level without firmware or configuration changes.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS200BPIBG1A’s internal architecture reflects GE’s design philosophy for the Mark VI platform: maximize field-side flexibility while maintaining strict signal integrity at the I/O module interface. Several hardware design decisions are worth examining in detail.

Optical Isolation on Discrete Channels: Discrete input and output channels are routed through optocoupler arrays before reaching the backplane connector. This galvanic isolation barrier — typically rated at 1,500 V AC isolation voltage — prevents ground loops and common-mode transients originating in field wiring from propagating into the I/O module’s logic circuitry. In turbine environments where high-voltage switchgear and motor drives operate in close proximity to control wiring, this isolation layer is not a convenience feature; it is a fundamental requirement for system reliability.

Passive Signal Conditioning Network: Analog input channels incorporate RC filter networks tuned to attenuate high-frequency noise above the signal bandwidth of interest (typically >1 kHz for 4–20 mA process loops). This hardware-level filtering reduces the burden on the I/O module’s ADC input stage and improves effective resolution by suppressing noise floor contributions from cable-induced interference.

Conformal Coating (IS200BPIBG1AEB): The AEB variant applies a polyurethane or acrylic conformal coat to the fully assembled PCB. This coating, applied to IPC-A-610 Class 3 standards, provides a dielectric barrier against moisture ingress and prevents dendritic growth between adjacent conductors under humid conditions. For installations in coastal power plants or tropical climates, the AEB variant is the appropriate selection without requiring additional enclosure upgrades.

EMC Design: The board layout follows controlled-impedance routing practices for high-speed signal lines, with ground planes segmented to isolate analog return paths from digital logic returns. Ferrite beads are placed at the backplane connector interface to suppress common-mode noise on the I/O bus. These measures collectively support compliance with IEC 61000-4-4 (EFT/burst) and IEC 61000-4-5 (surge) immunity levels appropriate for industrial Class A environments.

Terminal Block Mechanical Design: Field terminations use cage-clamp or screw-clamp terminal blocks rated for wire gauges from 0.5 mm² to 2.5 mm² (AWG 20–14). The terminal pitch and labeling are consistent across the IS200 series, enabling technicians to re-terminate field wiring during board replacement without consulting individual wiring diagrams for each channel — a practical time-saving feature during unplanned maintenance events.

System Integration Benefits

• Non-intrusive field wiring: Terminal boards decouple field cable terminations from I/O module replacement cycles. Swapping a failed I/O module does not require re-terminating any field wiring, reducing mean time to repair (MTTR) by eliminating the most error-prone step in module replacement procedures.
• Deterministic signal latency: Passive conditioning components introduce no variable processing delay. Signal propagation from field terminal to backplane connector is governed by fixed RC time constants, ensuring that the I/O module’s scan cycle receives signals with consistent, predictable timing — a prerequisite for closed-loop control algorithms with tight derivative gain settings.
• Diagnostic transparency: The Mark VI system can perform channel-level diagnostics through the I/O module while field wiring remains connected to the terminal board. Fault isolation to the terminal board versus the I/O module versus the field device is achievable without physical disconnection, reducing diagnostic time in live plant environments.
• Redundancy support: In TMR (Triple Modular Redundant) Mark VI configurations, three independent I/O modules may share a common terminal board through a voting arbiter. The IS200BPIBG1A’s backplane connector supports this multi-module topology, enabling 2-of-3 voting logic at the hardware level without additional wiring infrastructure.
• Hot-swap capability: I/O modules mating to the IS200BPIBG1A can be removed and reinserted under power in Mark VI systems configured for online maintenance. The terminal board’s passive architecture ensures that field signals remain stable during module extraction, preventing spurious process trips during maintenance activities.
• Cross-series compatibility: The IS200BPIBG1A is compatible with multiple I/O module types within the IS200 series, including analog input, analog output, and discrete I/O modules. A single terminal board variant can serve multiple functional roles depending on the mating module, simplifying spare parts inventory management.
• Reduced installation labor: Pre-wired terminal board assemblies can be prepared off-line and installed as a complete sub-assembly during planned outages. This approach compresses field installation time and reduces the probability of wiring errors introduced under time pressure during outage windows.
• Long-term platform alignment: GE’s Mark VI platform has an established installed base spanning multiple decades in power generation. The IS200BPIBG1A’s continued availability as a genuine OEM component ensures that existing Mark VI installations can be maintained without migrating to newer control platforms — preserving capital investment in existing DCS infrastructure.

Quality Assurance & Global Logistics

Every IS200BPIBG1A and IS200BPIBG1AEB unit supplied through siemensplc.com is sourced as genuine GE original equipment. Units are procured through verified industrial supply channels with full traceability to OEM manufacturing records. Prior to shipment, each board undergoes a structured inspection protocol covering visual integrity assessment, connector pin condition verification, label and serial number authentication, and packaging integrity confirmation.

Shipments originate from our Xiamen, China operations center, positioned within the Pearl River Delta logistics corridor for access to major international freight hubs including Xiamen Gaoqi International Airport and Xiamen Port. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (8537.10) — is prepared for every shipment. Express air freight via DHL, FedEx, or UPS delivers to most destinations within 3–7 business days. Sea freight consolidation is available for multi-unit orders where lead time permits. All units are packed in anti-static bags within rigid foam-lined cartons, with moisture desiccant included for long-transit shipments.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are processed with a target response time of 48 hours, with replacement units dispatched upon confirmation of the defect condition.
