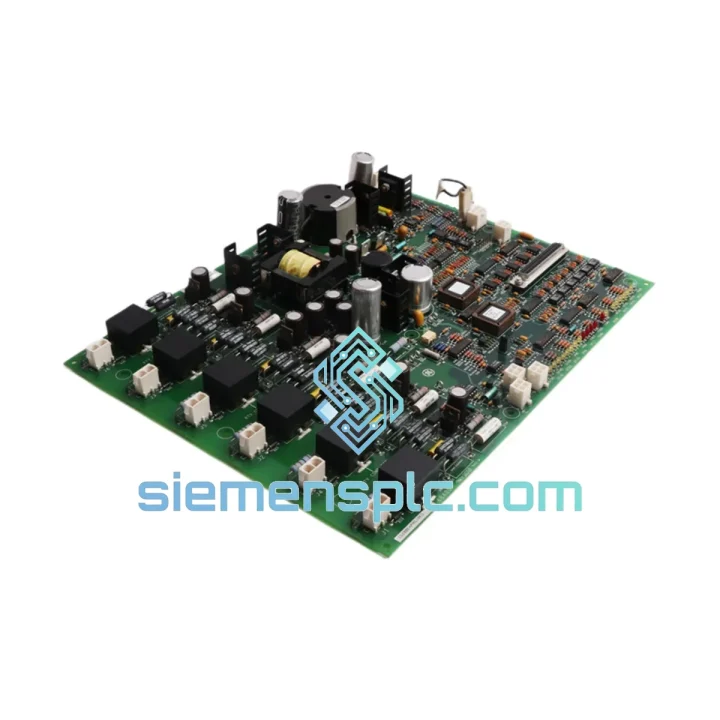

GE IS200EHPAG1AFD Excitation Control Board

GE IS200EHPAG1AFD In Stock — Stop the Clock on Your Generator Downtime

Every minute your excitation system is offline, your generator is dark and your production line is bleeding money. The GE IS200EHPAG1AFD is the excitation hardware protection board at the heart of the EX2100 digital excitation control system — and when it fails, there is no workaround. You need the exact board, tested and ready, shipped today. That is precisely what we do.

We maintain verified stock of the IS200EHPAG1AFD at our Xiamen warehouse. Orders confirmed before 3 PM CST ship same day via DHL Express or FedEx International Priority. No waiting on OEM lead times. No back-and-forth with distributors who don’t actually have the part. Just a board in your hands within 48–72 hours, wherever you are on the planet.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IS200EHPAG1AFD sits in the EHPA slot of the EX2100 excitation cabinet. Before you pull the board, run through this sequence — it will save you a second trip to the cabinet.

Common fault signatures that point to this board:

• Fault 7001 / 7002 — EHPA Hardware Fault: Direct indication of protection board failure or loss of communication with the excitation controller. Do not reset and ignore — the board is telling you it cannot protect the field circuit.
• Fault 6210 — Field Ground Detected: Can be a genuine field winding fault, but a failed EHPAG board with degraded analog input circuitry will generate false positives. Swap the board before condemning the rotor.
• Intermittent AVR oscillation / voltage hunting: If the excitation loop becomes unstable without a clear setpoint change, suspect the EHPAG’s analog feedback path. A failing op-amp stage on this board introduces noise into the voltage regulation loop.
• No response to manual raise/lower commands: The EHPAG handles the hardware interlock path for field forcing. A dead board blocks all manual excitation commands even if the software appears healthy.

Step-by-step replacement procedure:

1. De-energize and lock out: Follow your site LOTO procedure. The EX2100 cabinet operates at hazardous voltages. Do not work live.
2. Record the current board revision: Photograph the label on IS200EHPAG1AFD before removal. The full revision string (e.g., AFD) must match the replacement. A mismatched revision can cause firmware incompatibility.
3. Note DIP switch and jumper positions: The EHPAG board carries hardware configuration switches for protection thresholds and I/O mapping. Photograph all switch banks before removal. Replicate exactly on the new board.
4. Ground yourself: Use a wrist strap connected to the cabinet chassis. ESD damage to this board is not always immediately visible — it can cause latent failures weeks after installation.
5. Seat the board firmly: IS200-series boards use a card-edge connector. Apply even pressure until you feel both latches engage. A partially seated board will generate intermittent faults that are extremely difficult to diagnose.
6. Power up and check firmware: On first boot after board replacement, the EX2100 controller will perform a self-check. Confirm the firmware version reported by the EHPAG matches the system’s expected version. If there is a mismatch, contact GE service or our technical team before proceeding.
7. Run excitation self-test: Use the EX2100 HMI to execute the built-in excitation self-test sequence before returning the unit to service. Verify all protection channels report healthy.

Configuration note — field forcing limits: The EHPAG board enforces hardware field forcing limits independent of software settings. If your replacement board was sourced from a different system configuration, verify the hardware limit jumpers match your generator’s field current ceiling. Running with incorrect limits risks field winding damage.

Reliability in Harsh Conditions

Power generation environments are not kind to electronics. The IS200EHPAG1AFD is engineered to operate continuously in conditions that would destroy consumer-grade hardware.

Vibration: Turbine generator sets produce broadband mechanical vibration across the entire cabinet structure. The IS200EHPAG1AFD’s PCB layout uses conformal coating and through-hole construction for critical components, providing resistance to vibration-induced solder joint fatigue. Card-edge connectors are gold-plated to maintain contact integrity under continuous micro-movement.

Thermal cycling: Excitation cabinets experience significant thermal cycling between cold starts and full-load operation. The board’s component selection accounts for differential thermal expansion across the PCB substrate. Electrolytic capacitors — the most temperature-sensitive components — are rated for extended life at elevated temperatures consistent with the EX2100 cabinet’s thermal design.

Humidity and contamination: Industrial sites near cooling towers, coastal installations, and tropical climates expose control electronics to elevated humidity and airborne contaminants. GE’s conformal coating on the IS200EHPAG1AFD provides a barrier against moisture ingress and conductive contamination that would otherwise cause leakage currents and premature failure.

EMI/RFI: Excitation systems operate in close proximity to high-current field circuits and power electronics that generate significant electromagnetic interference. The board’s grounding architecture and shielded signal paths are designed to maintain signal integrity in this environment. Ensure the cabinet’s EMI bonding straps are intact when reinstalling the board — a missing ground strap can reintroduce noise that the board’s design otherwise suppresses.

All units we ship have been stored in ESD-safe, climate-controlled conditions from the moment they left the OEM facility. We do not source from uncontrolled environments. Every board is inspected for physical damage, corrosion, and component integrity before dispatch.

Global Express Logistics

Our Xiamen warehouse is positioned for fast access to international air freight hubs, giving you a genuine speed advantage over sourcing from North America or Europe.

Standard dispatch process:

• Order confirmation: Once payment or PO is confirmed, your order enters our pick-and-pack queue immediately. No queuing behind domestic orders.
• ESD packaging: The IS200EHPAG1AFD is packed in a static-shielding bag, then cushioned in anti-static foam inside a rigid outer carton. The board will not move in transit.
• Export documentation: We prepare commercial invoice, packing list, and HS code declaration (HS 8537.10) for customs clearance. For regulated industries, we can provide a certificate of conformance and traceability documentation on request.
• Carrier selection: DHL Express or FedEx International Priority, based on your destination and urgency. Both services provide door-to-door tracking and customs brokerage.
• Transit times (typical): Southeast Asia 1–2 days | Europe 2–3 days | North America 2–3 days | Middle East 2–4 days | South America 3–5 days.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments proactively and alert you to any customs holds before they become delays.

For sites with active outages, contact us directly on WhatsApp. We can arrange Saturday dispatch and expedited customs clearance documentation for critical shipments.
