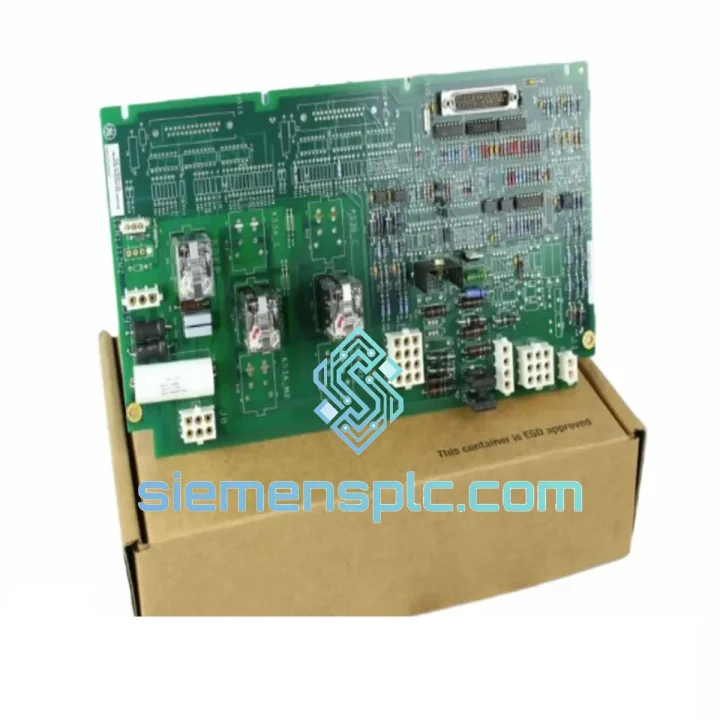

GE IS200EXHSG4A Exciter Terminal Board – Mark VI Series

GE IS200EXHSG4A Static Exciter Terminal Board: Signal Conditioning Hub in Mark VI Excitation Architecture

The IS200EXHSG4A occupies a structurally critical position within GE’s Mark VI turbine control platform, functioning as the primary terminal interface between the static excitation power stage and the supervisory control logic. Unlike generic I/O boards, this module is purpose-engineered for excitation-class signal environments — where voltage transients, reactive current surges, and ground-loop interference are routine operating conditions rather than edge cases. Its PCB layout reflects a deliberate separation of high-energy excitation signal paths from low-level feedback traces, a design discipline that directly reduces common-mode noise injection into the measurement chain.

Within the Mark VI architecture, the excitation subsystem operates on a dedicated backplane segment isolated from the main turbine I/O VME bus. The IS200EXHSG4A bridges this boundary, accepting field wiring from the exciter power converter and presenting conditioned, level-shifted signals to the UCSC controller card. Terminal assignments follow GE’s IS200-series wiring convention, enabling direct substitution without re-termination in most Mark VI panel configurations. Each terminal block position is rated for the conductor gauges and torque specifications defined in GEH-6421, the Mark VI installation manual.

The board’s passive filtering network attenuates high-frequency switching noise generated by the thyristor or IGBT bridge in the static exciter. This is not a trivial function: unfiltered switching transients in the 1–10 kHz range can corrupt AVR (Automatic Voltage Regulator) feedback signals, causing oscillatory excitation response or nuisance trips on generator protection relays. The IS200EXHSG4A’s filter topology is matched to the impedance characteristics of GE’s EX2100 and EX2100e excitation systems, ensuring attenuation is effective across the relevant frequency band without introducing phase lag that would destabilize the AVR control loop.

Field experience across power generation installations — gas turbine combined-cycle plants, steam turbine base-load units, and hydro generator excitation retrofits — confirms that terminal board failures in this position typically manifest as erratic field current feedback, AVR hunting, or loss of excitation alarms rather than hard faults. This failure mode makes the IS200EXHSG4A a high-priority spare in any Mark VI maintenance program. Stocking a verified replacement eliminates the diagnostic ambiguity that arises when excitation anomalies are investigated without a known-good swap unit available.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS200EXHSG4A’s hardware design addresses three distinct engineering challenges inherent to static excitation terminal interfaces:

EMC Isolation Architecture: The board implements a multi-layer ground plane strategy. The analog signal ground (AGND) and chassis ground (CGND) are connected at a single star point, preventing ground loop currents — which can reach tens of milliamps in excitation panel environments — from flowing through the signal measurement path. This topology is consistent with IEC 61000-5-2 shielding and bonding guidelines for industrial control equipment.

Passive Filter Network: RC low-pass filters on each signal input channel suppress differential-mode noise from the exciter power stage. The filter corner frequency is selected to pass the DC and fundamental-frequency components of the excitation feedback signals (field voltage, field current) while rejecting switching harmonics. This preserves AVR loop bandwidth without requiring active filtering components that would introduce failure modes of their own.

Terminal Block Mechanical Design: Screw-clamp terminals are rated for vibration environments consistent with gas turbine accessory compartments. The terminal pitch and labeling scheme match GE’s IS200-series panel wiring drawings, reducing the probability of mis-termination during field installation or replacement. Torque-limiting screwdriver use is specified to prevent terminal damage during high-cycle maintenance operations.

Conformal Coating: Production boards carry a conformal coating on non-terminal PCB areas, providing protection against condensation and airborne contaminants in turbine hall environments where humidity control is imperfect. This coating is consistent with IPC-CC-830 Class AR (acrylic resin) specifications.

System Integration Benefits

• Direct drop-in replacement: IS200-series form factor and terminal assignment compatibility with Mark VI panel wiring eliminates re-engineering during emergency replacement, reducing mean time to repair (MTTR) to the time required for physical swap and loop check.
• Deterministic feedback signal quality: Passive filtering ensures AVR feedback signals arrive at the UCSC controller within the noise budget specified in GE’s Mark VI application engineering guides, supporting stable closed-loop excitation control without parameter re-tuning after board replacement.
• Diagnostic transparency: Clean signal conditioning at the terminal board level means that excitation anomalies observed at the UCSC controller can be attributed to field wiring or power stage issues rather than board-level signal corruption, shortening root-cause analysis time.
• Reduced nuisance trip risk: Effective attenuation of switching transients prevents false triggering of loss-of-excitation (LOE) protection functions, which are sensitive to AVR feedback signal quality in modern numerical relay implementations.
• Spare parts program compatibility: The IS200EXHSG4A is a catalogued GE spare, meaning it is covered under GE’s Mark VI parts support program and can be included in site-level spare parts lists with defined reorder triggers.
• Multi-unit applicability: A single IS200EXHSG4A variant covers multiple generator frame sizes within the Mark VI excitation architecture, reducing the number of unique spare part numbers required in a multi-unit power plant spare parts inventory.
• ESD-safe handling compliance: Class 2 ESD sensitivity rating means the board can be handled safely with standard ESD wrist strap and mat precautions, without requiring specialized handling equipment beyond what is standard in control room maintenance environments.
• Long-term availability: As a documented IS200-series component, the IS200EXHSG4A remains available through authorized surplus channels even as GE transitions newer turbine fleets to Mark VIe, ensuring continued supportability for installed Mark VI base.

Quality Assurance & Global Logistics

Every IS200EXHSG4A unit dispatched from our Xiamen facility passes a structured inspection sequence before shipment. Visual inspection confirms manufacturer markings, revision codes, and board-level component integrity against GE OEM reference documentation. Functional continuity checks verify terminal-to-PCB trace integrity. Units are stored in ESD-safe, climate-controlled conditions per IPC/JEDEC J-STD-033 moisture sensitivity guidelines, and packaged in anti-static bags with desiccant for international transit.

Shipments originate from Xiamen, China, with access to DHL Express, FedEx International Priority, UPS Worldwide Express, and EMS for time-critical orders. Standard commercial invoice, packing list, and HS code documentation are provided with every shipment. Country-of-origin certificates and inspection reports are available upon request at no additional charge. Export compliance screening is applied to all orders in accordance with applicable trade regulations.

Warranty coverage is 12 months from the date of shipment. Units that fail to perform to specification within the warranty period are replaced or credited — contact [email protected] to initiate a warranty claim.
