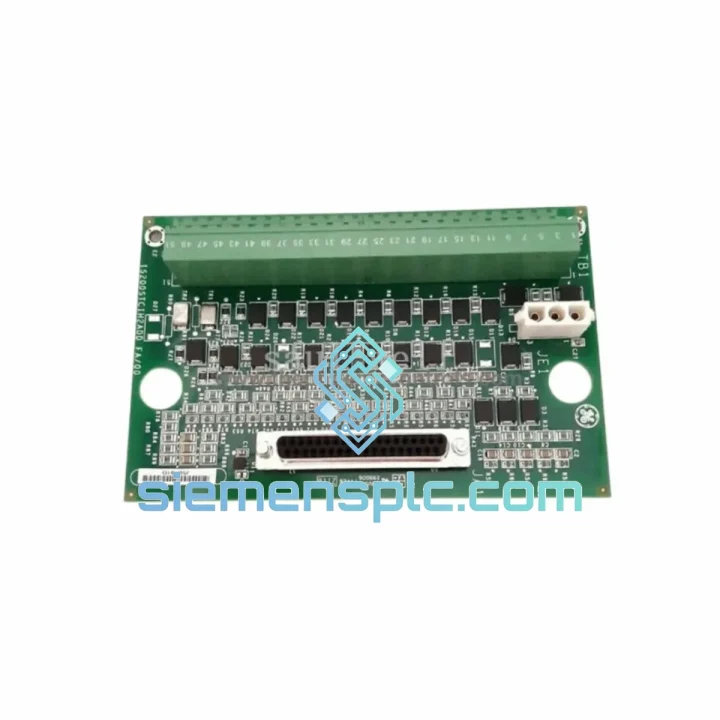

GE IS200STCIH2A Terminal Board – Mark VI / Mark VIe

GE IS200STCIH2A – Field-Side I/O Termination Architecture in Mark VI / Mark VIe Turbine Control Systems

The IS200STCIH2A is a passive terminal board engineered by General Electric for deployment within the Mark VI and Mark VIe distributed turbine control platforms. Its primary function is to serve as the structured wiring interface between field instrumentation — thermocouples, RTDs, 4–20 mA transmitters, discrete contact inputs, and solenoid outputs — and the corresponding I/O pack modules housed in the Mark VI controller cabinet. In gas turbine, steam turbine, and combined-cycle power generation facilities, this board occupies a deterministic position in the signal chain: all field wiring terminates here before signals are conditioned, digitized, and transmitted upstream to the controller core via IONet.

Unlike active I/O modules that carry firmware dependencies and revision-specific compatibility constraints, the IS200STCIH2A operates as a fully passive termination layer. This design choice by GE reflects a deliberate architectural principle: field-side wiring infrastructure must remain stable across controller firmware generations, allowing I/O pack upgrades without cabinet rewiring. The board’s passive nature also means it introduces no latency, no firmware obsolescence risk, and no configuration overhead — it is mechanically and electrically deterministic from the moment of installation.

In TMR (Triple Modular Redundancy) Mark VI configurations, three independent I/O packs connect to a single terminal board, each reading the same field signal simultaneously. The IS200STCIH2A’s connector layout and signal routing are designed to support this three-channel parallel termination without cross-channel interference, maintaining the electrical isolation required for valid TMR voting logic at the controller level. This makes the board a load-bearing component in safety-critical turbine protection loops, including overspeed detection, exhaust temperature monitoring, and flame detection circuits.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS200STCIH2A’s PCB layout follows GE’s established practice of separating analog and discrete signal traces with ground-plane isolation strips, reducing capacitive coupling between high-impedance thermocouple inputs and low-impedance discrete I/O lines. This is particularly relevant in turbine control cabinets where 24 VDC solenoid switching generates transient noise in the 1–10 MHz range — a frequency band that can corrupt unshielded thermocouple measurements if trace routing is not managed at the board level.

The terminal block arrangement on the IS200STCIH2A follows a grouped-by-function topology: analog inputs occupy one physical zone, discrete inputs another, and output channels a third. This spatial separation is not arbitrary — it mirrors the wiring discipline required by GE’s GEH-6721 installation standard, which mandates physical separation of signal classes in field cable trays. The board’s layout enforces this discipline at the termination point, reducing the probability of cross-wiring errors during maintenance interventions.

Connector retention on the I/O pack interface uses a positive-locking mechanism that maintains contact force within GE’s specified range across the operating temperature envelope. Thermal cycling in turbine control rooms — particularly in outdoor or semi-outdoor enclosures — can cause connector fretting corrosion on boards with inadequate contact retention. The IS200STCIH2A’s connector specification addresses this by using gold-plated contacts rated for a minimum of 500 mating cycles, consistent with GE’s field-replacement maintenance intervals.

From an EMC standpoint, the board’s passive architecture provides an inherent advantage: there are no switching power supplies, no oscillators, and no digital logic on the board itself. This means the IS200STCIH2A generates zero conducted or radiated emissions, and its susceptibility profile is limited to the field wiring it terminates. Proper cable shielding and grounding at the terminal block — per GE’s grounding guidelines — is therefore the primary EMC control measure for this component.

System Integration Benefits

• Zero-Configuration Deployment: The board requires no firmware loading, parameter setting, or software commissioning. Installation is limited to mechanical mounting and field wiring termination, reducing commissioning time to under 30 minutes per board in a standard Mark VI cabinet.
• TMR Voting Integrity: The three-channel connector layout maintains electrical symmetry across R, S, and T I/O pack connections, ensuring that signal path impedance differences between channels remain within the tolerance band required for valid TMR voting at the VCCC controller core.
• Firmware-Independent Longevity: As a passive component, the IS200STCIH2A is unaffected by Mark VI firmware upgrades, ToolboxST version changes, or GE software lifecycle decisions. It remains functionally valid across the entire operational life of the Mark VI platform.
• Deterministic Signal Latency: Passive termination introduces no processing delay. Signal propagation from field sensor to I/O pack input is governed only by cable capacitance and the I/O pack’s sampling rate — typically 10 ms for analog channels in standard Mark VI configurations.
• Diagnostic Transparency: Because the board introduces no active signal conditioning, fault isolation is straightforward: any signal anomaly observed at the I/O pack can be traced directly to field wiring, sensor, or connector condition without ruling out board-level processing errors.
• Hot-Swap Compatibility: In dual-redundant and TMR Mark VI configurations, the IS200STCIH2A can be replaced under power with appropriate isolation procedures, minimizing turbine downtime during maintenance windows. This is documented in GE’s GEH-6721 field maintenance procedures.
• Standardized Spare Parts Management: A single IS200STCIH2A board type covers multiple I/O pack variants within the Mark VI family, reducing the number of unique spare part numbers required in a plant’s critical spare inventory. This simplifies procurement and reduces carrying costs.
• Cross-Platform Migration Support: The board’s connector and wiring interface is compatible with both Mark VI and Mark VIe I/O pack generations, making it a valid component in Mark V-to-Mark VI and Mark VI-to-Mark VIe upgrade projects without field wiring modifications.

Quality Assurance & Global Logistics

Every IS200STCIH2A unit dispatched from our Xiamen facility undergoes a structured pre-shipment inspection protocol. Visual examination covers PCB surface condition, solder joint integrity, connector pin alignment, and OEM marking verification — including GE part number silk-screen, board revision code, and date code cross-referenced against known-good reference units to identify non-genuine components. Electrical continuity checks confirm terminal block integrity and connector contact resistance within GE’s specified limits.

Units are packed in ESD-safe anti-static bags, placed in foam-padded inner cartons, and shipped in double-wall corrugated outer cartons rated for international air freight handling. Each shipment includes a pre-shipment inspection report, commercial invoice, packing list, and — where source documentation permits — chain-of-custody records from the original decommissioning project.

Logistics from Xiamen, China to major industrial hubs operates via DHL Express, FedEx International Priority, and SF Express international services. Typical transit times are 3–5 business days to Southeast Asia, 4–6 business days to Europe and the Middle East, and 5–7 business days to North America. All shipments are fully tracked and insured. Export documentation, including commercial invoice and packing list formatted for customs clearance, is prepared for every international order. HS code classification and country-of-origin documentation are provided on request to support import duty calculations and customs compliance in the destination country.

A 12-month functional warranty covers all units against electrical failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued upon confirmation of the defect.
