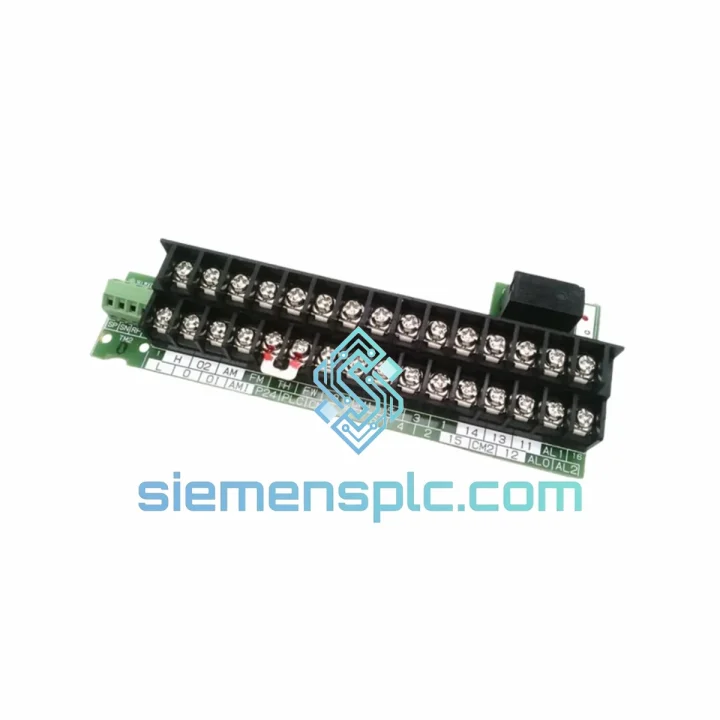

HITACHI SJ300TM 3B295619-3 VFD Control Terminal Board

HITACHI SJ300TM 3B295619-3 — Stop the Clock on Your Downtime. Board Ships Today.

Every minute your SJ300-series drive sits dead on the floor, your line is bleeding money. Conveyor stopped. Pump offline. HVAC flat. The SJ300TM 3B295619-3 control terminal board is the single component standing between you and full production recovery — and we have it on the shelf right now in Xiamen, ready to clear customs and land at your door via DHL Express or FedEx Priority.

This is not a generic listing. This is the exact OEM control I/O interface card for HITACHI SJ300TM-frame variable frequency drives. Plug-in replacement. No drive swap. No rewiring nightmare. Pull the failed board, seat the new one, re-terminate your field wiring per the SJ300 service diagram, and power up. That’s the job.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

When does the 3B295619-3 fail? In the field, this board accounts for a disproportionate share of SJ300 faults that aren’t caused by the power stage. Watch for these patterns:

• E07 / E08 fault codes (External fault / Communication error): Often traced to corroded or cracked solder joints on the RS-485 terminal block or the digital input optocoupler array. If the fault clears on power cycle but returns under load, the terminal board is the prime suspect — not the PLC or field wiring.
• Analog reference drift: Frequency command wanders or hunts even with a stable 0–10V signal from the PLC. Measure the actual voltage at the terminal board’s AI1 pin versus the PLC output. A delta >0.2V with no wiring fault points to a degraded input impedance on the board itself.
• Digital inputs unresponsive (FW/RV/CF1–CF4): Check the 24VDC common (CM) terminal continuity first. If CM is intact and inputs still don’t register, the optocoupler row on the terminal board has failed — common after moisture ingress or sustained vibration.
• Relay output chatter: If the fault relay (MA/MB/MC) or run relay chatters without a corresponding drive fault, the relay driver circuit on the terminal board is degraded. Do not chase this fault in the PLC program — replace the board.

Replacement procedure — field checklist:

1. Isolate and lock out the drive. Verify DC bus voltage is below 30V before touching any internal component (minimum 5-minute discharge wait after power-off).
2. Photograph the existing terminal wiring before disconnecting. Label every wire with its terminal designation.
3. Disconnect the flat-flex connector harness linking the terminal board to the main control PCB. Release the ZIF latch — do not pull the cable.
4. Remove the four M3 mounting screws. Lift the board straight out — no lateral force.
5. Seat the 3B295619-3 replacement. Confirm the harness connector is fully latched (audible click).
6. Re-terminate field wiring per the SJ300TM wiring diagram. Torque terminal screws to 0.5–0.6 N·m — undertorqued terminals are the #1 cause of intermittent faults post-replacement.
7. Power up with no load. Verify all digital inputs register correctly via the drive’s monitor mode (d001–d007). Confirm analog reference tracks the PLC output within ±0.1 Hz.
8. Run a no-load acceleration/deceleration cycle before reconnecting the mechanical load.

Configuration notes: The SJ300TM 3B295619-3 does not carry drive parameters — all tuning data (acceleration ramps, V/f curve, motor constants) is stored on the main control board. You do not need to re-enter parameters after a terminal board swap. However, verify that the input terminal function assignments (C001–C008) still match your field wiring after replacement, as some firmware revisions reset these to factory defaults on first power-up with a new board detected.

Reliability in Harsh Conditions

The SJ300TM platform was engineered for industrial environments that would destroy consumer-grade electronics. The 3B295619-3 terminal board reflects that design philosophy at the component level.

The PCB substrate is a multi-layer FR4 construction with conformal coating on the signal layer — this is what keeps the board functional in pump rooms running at 85% relative humidity and in outdoor enclosures where condensation cycles daily. The terminal block connectors are rated for 300V / 10A with vibration-locking screw retention, tested to IEC 60068-2-6 (sinusoidal vibration, 10–150 Hz, 1g) — relevant for compressor skids and mobile equipment where resonance is a constant threat.

Optocouplers on the digital input array are rated for 5,000V isolation between field wiring and the drive’s internal logic — critical when your field devices share a common ground with high-current motor circuits. The analog input section uses a differential amplifier topology that rejects common-mode noise up to 60 dB, which matters when your frequency reference cable runs parallel to motor power cables in a crowded cable tray.

Operating temperature range: -10°C to +50°C ambient (drive enclosure). Storage: -20°C to +65°C. Units sourced from our Xiamen warehouse are stored in climate-controlled conditions with humidity indicator cards in each anti-static bag. If the card shows pink on arrival, contact us immediately — we will replace the unit, no questions asked.

Global Express Logistics

Our dispatch operation runs out of Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here’s how your order moves:

• Order confirmed before 15:00 CST: Same-day pick, pack, and handover to carrier. Tracking number issued within 2 hours of dispatch.
• DHL Express Worldwide: Xiamen → most major industrial hubs (Germany, USA, Southeast Asia, Middle East) in 2–4 business days. Customs clearance handled by DHL’s brokerage network — no delays at your end.
• FedEx International Priority: Alternative routing for destinations where FedEx has stronger last-mile coverage. Same 2–4 day transit window.
• Export documentation: Commercial invoice with accurate HS code (8537.10), packing list, and country of origin certificate prepared for every shipment. No customs holds from incomplete paperwork.
• Emergency freight: For genuine production-down situations, contact us via WhatsApp for same-day courier options including overnight air freight to select destinations.

We do not consolidate emergency orders into economy freight to save cost. If you need it fast, we ship it fast. The cost of a DHL Express ticket is trivial against one more day of downtime.
