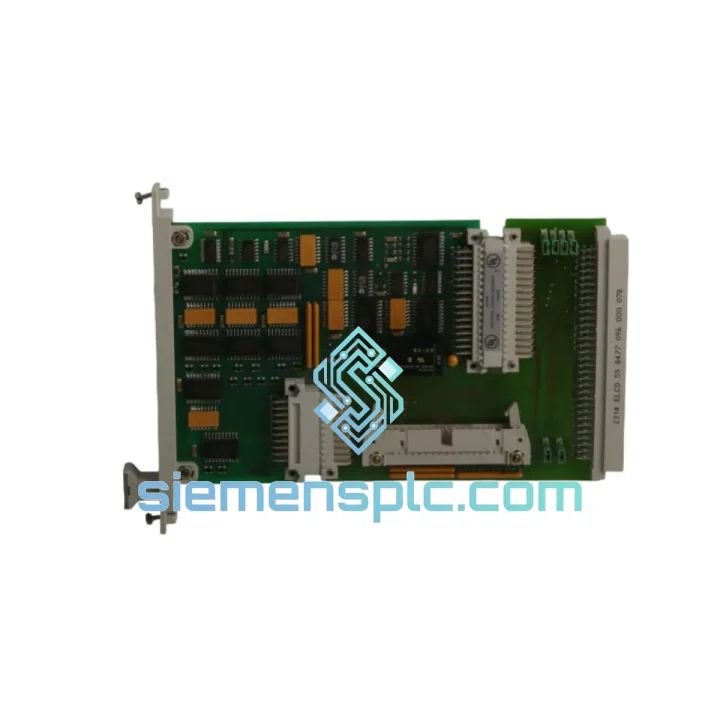

Honeywell 10001/R/I DCS Analog Input Module

Honeywell 10001/R/I TDC 3000 Analog Input Module — Stop the Clock on Your Downtime

Every minute your TDC 3000 system sits offline, the losses compound. A failed analog input card means blind control loops, manual overrides, and a plant manager breathing down your neck. The Honeywell 10001/R/I is in stock at our Xiamen warehouse right now — tested, packed, and ready to move via DHL or FedEx the same day you confirm. We’ve shipped this exact module to refineries in the Middle East, chemical plants in Southeast Asia, and power stations in Europe. The part arrives. The loop closes. Production resumes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience — not a manual reprint.

Common failure signatures for the 10001/R/I:

• BAD AI fault on the Universal Station — The most frequent alarm. Before condemning the card, verify the FTA (Field Termination Assembly) wiring first. A corroded terminal block on the FTA mimics a dead AI card 30% of the time.
• Intermittent signal dropout on one channel — Usually a cracked solder joint on the input multiplexer IC, aggravated by thermal cycling. Swap the card; don’t waste time reflowing in the field.
• All channels reading 0 mA simultaneously — Check backplane slot power rail before assuming the card is dead. A failing backplane PSU will kill the card’s reference voltage and produce this exact symptom.
• Card powers up but LCN communication fails — Verify the LCN cable termination resistors at both ends of the segment. A missing 75-ohm terminator causes reflections that prevent the card from joining the network.

Replacement procedure — key checkpoints:

• Power down the HPM/BPM cage before extracting the card. Hot-swapping the 10001/R/I is not supported on standard TDC 3000 configurations and risks corrupting the LCN node table.
• After seating the replacement card, allow 90 seconds for the module to complete its self-diagnostic cycle before attempting to load the point database from the Universal Station.
• Confirm the hardware revision suffix (/R/I) matches your existing slot configuration. The /R suffix denotes a specific input impedance range; substituting a /R/V variant will cause calibration offsets on 4–20 mA loops.
• Re-run the AI calibration routine from the Engineering Console after replacement if the process variable readings appear offset by more than ±0.5% of span.
• Document the slot address and node number before removal — TDC 3000 does not auto-reassign addresses on card swap, but a corrupted EEPROM on the old card can occasionally write garbage to the backplane address register.

Reliability in Harsh Conditions

The TDC 3000 platform was engineered for continuous-process industries where stopping is not an option. The 10001/R/I reflects that design philosophy at the card level. The PCB uses conformal coating rated to IEC 60068-2-30 for resistance to condensing humidity — relevant in coastal refineries and tropical chemical plants where ambient RH regularly exceeds 90%. The card’s edge connector is gold-plated to resist oxidation in sulfur-rich atmospheres common in upstream oil and gas environments.

Vibration tolerance meets IEC 60068-2-6 (sinusoidal, 10–150 Hz, 1 g), which covers the structural vibration transmitted through compressor skids and pump foundations where TDC 3000 cabinets are often co-located. The analog front-end circuitry includes hardware filtering to reject 50/60 Hz common-mode noise — critical in plants where signal cables run parallel to high-voltage motor drives.

Thermal performance is validated across the full 0–60 °C operating range with derating curves published for elevated ambient installations. In practice, properly ventilated TDC 3000 cabinets maintain internal temperatures well within this envelope even in Middle Eastern summer conditions exceeding 45 °C ambient.

Every unit we ship has been bench-tested under powered conditions: signal injection at 4 mA, 12 mA, and 20 mA on each channel, with output verified against a calibrated reference meter. Cards that show any channel deviation beyond ±0.1% of span are rejected. You receive a unit that has already proven itself on the bench before it reaches your cabinet.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here is how a typical emergency shipment moves:

• Order confirmed before 15:00 CST → Same-day packing and handover to carrier.
• DHL Express Worldwide → Transit time: 2–4 business days to most of Europe, Middle East, and Southeast Asia; 3–5 days to North America and Australia.
• FedEx International Priority → Available as an alternative for destinations where FedEx has stronger last-mile coverage (e.g., remote industrial sites in the US Gulf Coast or Canadian oil sands region).
• Commercial invoice and packing list are prepared with the correct HS code (8537.10) and a clear description of goods to prevent customs holds. We have zero tolerance for documentation errors that delay your shipment.
• Export compliance: The 10001/R/I is a standard industrial control module with no ITAR or EAR99 restrictions for most destinations. We confirm export classification on every order.
• Tracking is shared via email and WhatsApp within 2 hours of carrier pickup. You know exactly where your part is at all times.

For plant turnarounds requiring multiple units or a full BOM, contact us directly. We can consolidate shipments, pre-position stock, or arrange bonded warehouse staging for multi-phase shutdowns.
