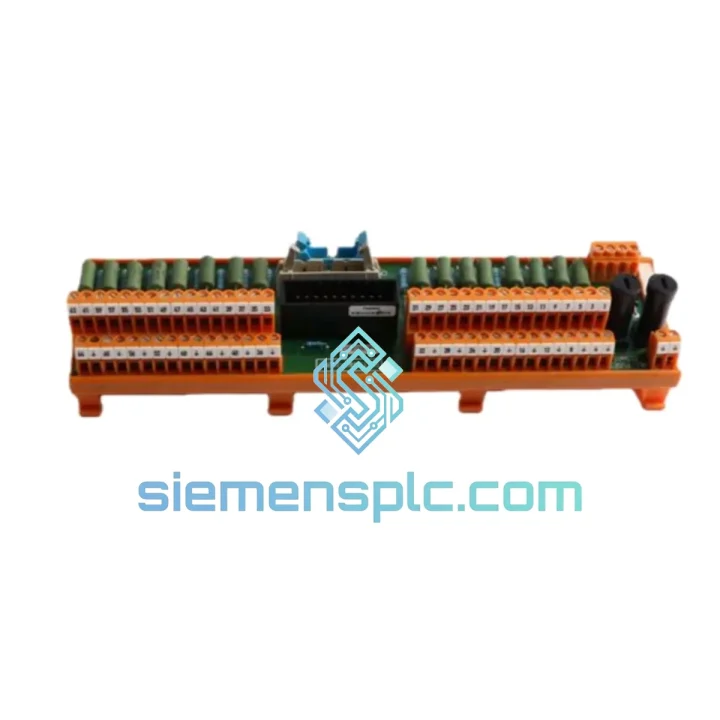

Honeywell 10205/2/1 Analog Output Module – TDC 3000

Honeywell 10205/2/1 – Analog Output Module for TDC 3000 Distributed Control Systems

The Honeywell 10205/2/1 is a dedicated analog output module engineered for deployment within the Honeywell TDC 3000 Distributed Control System platform. Its primary function is to translate digital setpoint commands from the process controller into precision 4–20 mA current loop signals that drive final control elements — including pneumatic control valves, electro-hydraulic actuators, and variable-frequency drives. In a continuous process environment, the integrity of this signal chain is non-negotiable: a 1% deviation in output accuracy at a flow control valve can propagate into measurable product quality variance or energy inefficiency across an entire process train.

The TDC 3000 architecture, introduced by Honeywell in the early 1980s and continuously refined through the 1990s, remains operational in thousands of facilities across refining, petrochemical, power generation, and specialty chemical sectors. The 10205/2/1 occupies the analog output tier of this architecture, interfacing directly with the High-Performance Process Manager (HPM) or the Basic Process Manager (BPM) backplane. Its slot-based form factor allows hot-swap replacement during scheduled maintenance windows without requiring full system shutdown, a critical operational advantage in continuous-process facilities where unplanned downtime carries costs measured in tens of thousands of dollars per hour.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 10205/2/1 implements a fully isolated analog output architecture at the channel level. Each output channel incorporates an independent digital-to-analog converter (DAC) stage followed by a voltage-to-current (V/I) conversion circuit. The DAC stage accepts a 12-bit parallel word from the module’s local microprocessor, which in turn receives setpoint data from the HPM controller via the backplane bus at the module’s configured scan rate.

The optical isolation barrier between the digital logic domain and the analog output stage serves two distinct engineering purposes. First, it eliminates ground loop currents that would otherwise introduce low-frequency noise into the 4–20 mA signal — a particularly significant concern in large industrial facilities where field wiring may span hundreds of meters and traverse multiple electrical ground planes. Second, it provides a defined isolation voltage boundary (typically rated at 500 VDC working isolation) that protects the backplane logic from transient overvoltages induced by field-side switching events, such as valve actuator solenoid switching or VFD output transients.

The V/I conversion stage uses a precision op-amp feedback topology to maintain output current accuracy independent of load resistance variation within the specified 0–750 Ω range. This means the module maintains ±0.1% output accuracy whether driving a 250 Ω HART-compatible transmitter barrier or a 600 Ω pneumatic I/P transducer — without requiring field calibration adjustments when field devices are swapped.

EMC performance is addressed through multi-layer PCB design with dedicated ground planes, ferrite bead filtering on the backplane power rails, and transient voltage suppression (TVS) diodes on all field-side terminals. The module meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-5 (Surge) immunity levels appropriate for industrial process control environments.

The on-board microprocessor executes a continuous self-test routine that monitors DAC output against a reference, checks backplane communication integrity, and verifies power supply rail voltages. Any detected fault condition sets a module-level fault flag that is propagated to the HPM controller and surfaced in the TDC 3000 operator console as a hardware alarm — enabling maintenance personnel to identify and replace a degraded module before it causes a process upset.

System Integration Benefits

• Zero-configuration backplane compatibility: The 10205/2/1 is recognized automatically by the HPM/BPM controller upon insertion. No jumper configuration or DIP switch setting is required; the module reports its type and channel count to the controller during the initialization handshake, eliminating configuration errors during replacement.
• Deterministic scan cycle participation: The module participates in the HPM’s deterministic scan cycle, with output updates synchronized to the controller’s configured execution period (typically 100 ms to 500 ms). This ensures that analog output updates are phase-aligned with control algorithm execution, eliminating the output latency jitter that can occur with non-native third-party output modules.
• HART pass-through capability: The 4–20 mA output is HART-compatible, allowing superimposed FSK communication with HART-enabled field devices. This enables remote device configuration, diagnostics, and process variable readback without additional wiring infrastructure.
• Fault-state output behavior: On detection of a communication fault or controller-commanded fail-safe condition, the module drives its outputs to a configurable fail-safe value (hold last value, drive to 4 mA, or drive to 20 mA) as defined in the HPM configuration database. This deterministic fail-safe behavior is essential for process safety compliance.
• Integrated loop diagnostics: The module monitors the field-side loop for open-circuit conditions (output current below 3.8 mA with non-zero setpoint) and reports loop break alarms to the controller, enabling rapid fault localization without manual loop testing.
• Hot-swap replacement without process interruption: The TDC 3000 backplane architecture supports module extraction and insertion under power. When a replacement 10205/2/1 is inserted, the HPM controller re-downloads the channel configuration and resumes normal output within one scan cycle, minimizing the duration of open-loop conditions during maintenance.
• Consistent signal quality across temperature range: The module’s temperature coefficient for output accuracy is specified at ±50 ppm/°C, ensuring that output accuracy remains within ±0.2% of full scale across the full 0–60°C operating range without field recalibration — a practical requirement for modules installed in non-climate-controlled marshalling cabinets.
• Backward compatibility with legacy TDC 3000 configurations: The 10205/2/1 is compatible with existing HPM and BPM configuration databases without requiring database modifications. Replacement units can be installed and brought online using the existing channel tag assignments, preserving the integrity of the process control database.

Quality Assurance & Global Logistics

Every Honeywell 10205/2/1 unit supplied by siemensplc.com is sourced through verified industrial channels — including authorized distributors, documented plant decommissions, and certified surplus inventories. Units undergo a structured pre-shipment evaluation protocol:

• Visual and mechanical inspection: PCB examination for component damage, solder joint integrity, connector pin condition, and absence of corrosion or thermal stress indicators.
• Functional power-on test: Module is powered via a TDC 3000-compatible test fixture to verify backplane communication response and self-test pass status.
• Analog output verification: Each channel is exercised across the 4–20 mA range at 0%, 25%, 50%, 75%, and 100% setpoints, with output measured against a calibrated reference meter to verify accuracy within specification.
• Anti-static and moisture-protective packaging: Units are packed in conductive foam within anti-static bags, sealed with desiccant, and placed in rigid outer packaging rated for international air freight handling.
• Documentation package: Each shipment includes a test record, sourcing declaration, and packing list. Certificate of conformance available upon request.

Shipments originate from our warehouse in Xiamen, China. Standard international delivery via DHL Express or FedEx International Priority reaches most destinations in 3–7 business days. Sea freight consolidation is available for bulk orders. Full export documentation — including commercial invoice, packing list, and HS code declaration — is prepared for all international shipments. A 12-month warranty covers all supplied units against defects in materials and workmanship from the date of shipment.
