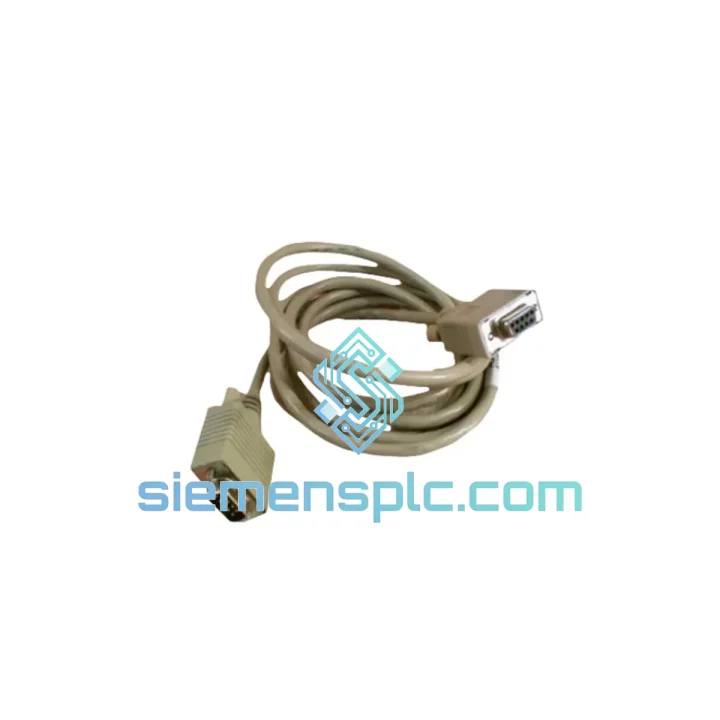

Honeywell 51196990-500 Serial Extension Cable

Honeywell 51196990-500 Serial Extension Cable — Stop the Clock on Your TDC3000 Downtime

Every minute a TDC3000 node goes dark, your process is bleeding money. A failed serial link between your controller and field interface modules can cascade into a full unit shutdown before your shift supervisor finishes his coffee. The Honeywell 51196990-500 is the OEM-specified serial extension cable for TDC3000 and Experion PKS architectures — and we have it on the shelf in Xiamen, ready to move today via DHL or FedEx Express.

We are not a catalog listing. We are a stocking distributor with verified surplus and new units, pre-inspected, anti-static packed, and export-documented. If your plant is down, this is the call you make.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

In ten years of field work, serial cable failures in TDC3000 systems almost never announce themselves cleanly. What you see first is intermittent communication faults on the HMI — CL6895 or CL6896 alarms, node dropouts that recover on their own, or a serial interface module that shows healthy diagnostics but refuses to pass data. Before you pull the SIM card or start swapping backplane boards, check the cable.

Step-by-step replacement procedure:

• Step 1 — Isolate the node. Place the affected controller in manual mode at the operator station. Confirm with the control room that the loop is under manual supervision before you touch anything in the cabinet.
• Step 2 — Document connector orientation. The 51196990-500 uses keyed connectors, but photograph both ends before disconnecting. In a dense marshalling cabinet, it is easy to reinstall into an adjacent port.
• Step 3 — Inspect the old cable first. Look for bent pins at the backplane connector, cracked jacket near the strain relief, and corrosion on the shell ground. A damaged shell ground is the most common cause of intermittent EMI-induced faults that look like firmware or module issues.
• Step 4 — Seat the replacement firmly. The TDC3000 backplane connector requires a positive click. A half-seated cable will pass continuity tests but fail under vibration. Apply even pressure across the connector face, not just at the locking tab.
• Step 5 — Restore and monitor. Bring the node back online and watch the diagnostic display for at least 5 minutes. CL6895 alarms that clear immediately and do not recur confirm the cable was the fault source. If alarms persist, escalate to the SIM card or backplane slot.

Common fault codes associated with this cable path:

• CL6895 — Serial link communication failure (primary suspect: cable or connector)
• CL6896 — Serial link timeout (check cable length vs. system design spec)
• CL7012 — Node offline, no response (verify cable seating before pulling the module)

One thing that catches engineers off guard: the TDC3000 serial interface does not require any DIP switch configuration on the cable itself — it is a passive assembly. If someone on your team is chasing a baud rate mismatch or address conflict, the cable is not the variable. Redirect that troubleshooting to the SIM firmware revision and the UCN node address settings in the system configuration database.

Reliability in Harsh Conditions

Process plants are not server rooms. The 51196990-500 is built to operate in the real environment of a marshalling cabinet — not a climate-controlled lab. The shielded construction provides continuous drain wire coverage along the full cable run, which matters when your cabinet is mounted 3 meters from a 6kV motor drive or a large transformer bank. EMI coupling on an unshielded or poorly shielded cable in that environment will generate exactly the kind of intermittent, hard-to-reproduce faults that waste days of engineering time.

The connector shells are zinc-alloy die-cast with a nickel finish — corrosion-resistant in the humidity levels typical of coastal petrochemical sites and tropical climates. The jacket compound handles the thermal cycling that comes with outdoor marshalling enclosures in environments ranging from sub-zero winter startups to summer ambient temperatures exceeding 50°C inside a cabinet with marginal ventilation.

Vibration is the silent killer of serial connections in rotating-equipment-heavy facilities. The strain relief design on this cable is engineered to prevent the micro-movement at the connector interface that causes intermittent contact resistance over time. In compressor stations and pump skids where the floor vibrates continuously, this is not a minor detail — it is the difference between a cable that lasts five years and one that fails in eighteen months.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent plant shutdowns, we operate on the following dispatch timeline:

• Order confirmed before 15:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Transit to Southeast Asia: 1–2 business days.
• Transit to Middle East / Europe: 2–4 business days.
• Transit to North America / South America: 3–5 business days.
• Transit to Africa / Oceania: 4–6 business days.

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers in regulated industries (pharmaceutical, nuclear, offshore), we can provide a Certificate of Conformance and inspection report. Dangerous goods classification does not apply to this part — no special handling surcharges.

We handle export licensing for destinations that require it. If your procurement team needs an ETA letter for maintenance planning, contact us and we will issue one within the hour.
