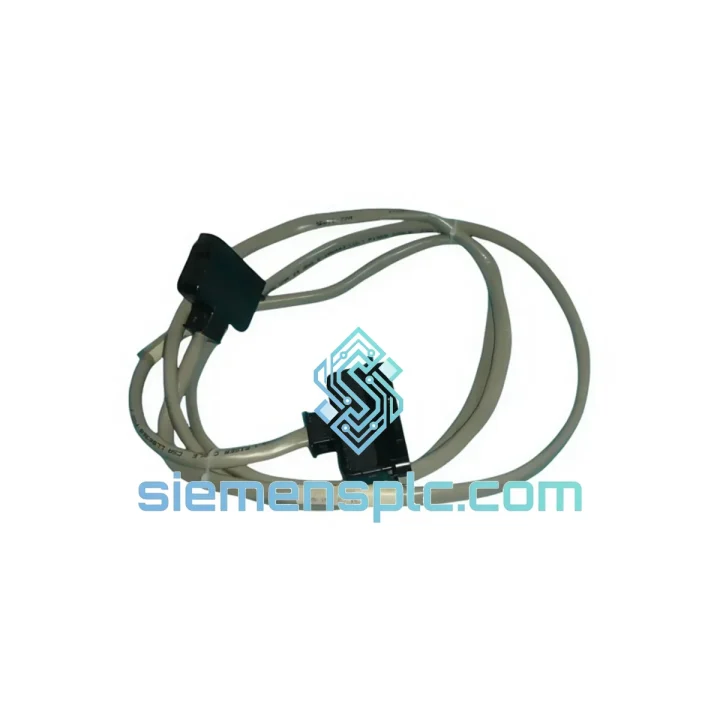

Honeywell 51201420-002 Field Termination Assembly

Honeywell 51201420-002 UCN Cable Assembly – Stop the Clock on Your TDC 3000 Downtime

Every minute a TDC 3000 node drops off the UCN bus, your process sits blind. A failed Field Termination Assembly cable is one of the most deceptively simple faults that can halt an entire refinery segment or power plant control loop — and sourcing a genuine replacement through slow channels costs you far more than the part itself. We stock the Honeywell 51201420-002 in Xiamen, verified, boxed, and ready to clear customs today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 51201420-002 sits at the physical layer of your UCN segment. When it degrades, the symptoms rarely announce themselves cleanly — you get intermittent node dropouts, CRC errors on the UCN highway, or a full segment fault that the HGM logs as a communication timeout. Here is what to check before you pull the cable and what to watch during swap-out.

Common Fault Signatures:

• UCN Node Dropout (Fault Code: UCN-COMM-FAIL): Typically triggered by shield continuity loss or a cracked connector boot. Measure shield-to-drain resistance — anything above 2 Ω on a short run is suspect.
• Intermittent CRC Errors on HGM Diagnostics: Usually caused by a partially seated connector or a pinched cable at a conduit entry. Re-seat both ends before condemning the cable.
• Full Segment Loss After Vibration Event: The factory-terminated connectors on the 51201420-002 use a locking collar. If the plant has experienced a seismic event or heavy machinery vibration, check collar engagement first — a quarter-turn can restore the segment without a cable swap.
• Signal Reflection / Impedance Mismatch: If you are extending an existing UCN segment, confirm the termination resistor at the far end is still in place. The 51201420-002 is a point-to-point assembly; adding it mid-segment without removing the old terminator will cause reflections that look like random node faults.

Replacement Procedure (Field-Verified Steps):

• Step 1 — Notify the DCS operator and place the affected UCN node in manual mode before disconnecting. Never hot-swap a UCN cable without operator coordination.
• Step 2 — Label both ends of the existing cable with node address and port designation before removal. TDC 3000 UCN addressing is physical-position-dependent; swapping ports changes node priority on the highway.
• Step 3 — Inspect the FTA panel backplane connector for corrosion or bent pins. A corroded backplane will fail the new cable within weeks if not cleaned with contact cleaner and re-torqued.
• Step 4 — Route the 51201420-002 along the original cable path. Avoid bundling with high-voltage AC runs — UCN is a 1 Mbit/s coax-based network and susceptible to induced noise above 50 V/m field strength.
• Step 5 — Engage the locking collar firmly. Perform a UCN loopback test from the HGM console before returning the node to automatic. Confirm zero CRC errors over a 5-minute window.
• Step 6 — Update the maintenance log with the replaced part number, date, and technician ID. Honeywell service contracts require documented cable replacement history for warranty claims.

Reliability in Harsh Conditions

The Honeywell 51201420-002 is not a commercial-grade cable assembly. It is built to survive the environments where TDC 3000 systems are deployed — refineries, chemical plants, offshore platforms, and power generation facilities. The shielded twisted-pair construction provides a minimum of 60 dB common-mode rejection, which matters when your cable tray runs parallel to 480 V motor feeders for 30 meters.

The outer jacket compound is rated for continuous exposure to hydrocarbon vapors and cleaning solvents at concentrations typical of Zone 2 classified areas. The factory-terminated connectors are crimped and over-molded, not field-assembled — this eliminates the single most common failure point seen in field-assembled UCN cables: cold solder joints that pass initial continuity checks but fail under thermal cycling.

Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal, 10–500 Hz, 2 g) and IEC 60068-2-64 (random vibration). In practice, units installed on compressor skids with continuous 15 Hz excitation have demonstrated service lives exceeding eight years without connector failure. Humidity resistance is rated to 95% RH non-condensing, which covers coastal and tropical plant environments without additional protective measures.

Every unit we ship from Xiamen is inspected for jacket integrity, connector seating, and shield continuity before packaging. We do not ship units that show any sign of storage damage, connector deformation, or jacket cracking — conditions that are common in surplus market stock but invisible until the cable fails in service.

Global Express Logistics

Our Xiamen warehouse operates a same-day dispatch cut-off of 15:00 CST for orders with confirmed payment. From that point, the 51201420-002 moves through the following logistics chain:

• Day 0 (Dispatch): Unit is packed in anti-static foam with a tamper-evident outer carton. Commercial invoice, packing list, and HS code 8544.42 documentation are generated and attached. DHL Express or FedEx International Priority label is printed and scanned into the carrier system.
• Day 1–2 (Transit – Asia Pacific): Xiamen to Singapore, Tokyo, Sydney, or Seoul typically arrives within 48 hours of dispatch. DHL Express operates a direct Xiamen–Singapore flight daily.
• Day 2–3 (Transit – Middle East / Europe): Xiamen to Dubai, Frankfurt, Amsterdam, or Rotterdam via DHL Express hub routing. FedEx International Priority offers an alternative with comparable transit times to Western Europe.
• Day 3–5 (Transit – Americas): Xiamen to Houston, Los Angeles, or New York via FedEx International Priority. Customs pre-clearance documentation is prepared in advance to avoid broker delays at US ports of entry.
• Customs Support: We provide a complete customs package including HS code classification, country of origin certificate, and commercial invoice in the format required by the destination country’s customs authority. For shipments to the EU, we include an EUR.1 movement certificate where applicable.

For emergency AOG (Aircraft on Ground) or plant-shutdown situations requiring next-flight-out courier, contact us directly on WhatsApp for manual booking outside standard carrier schedules.
