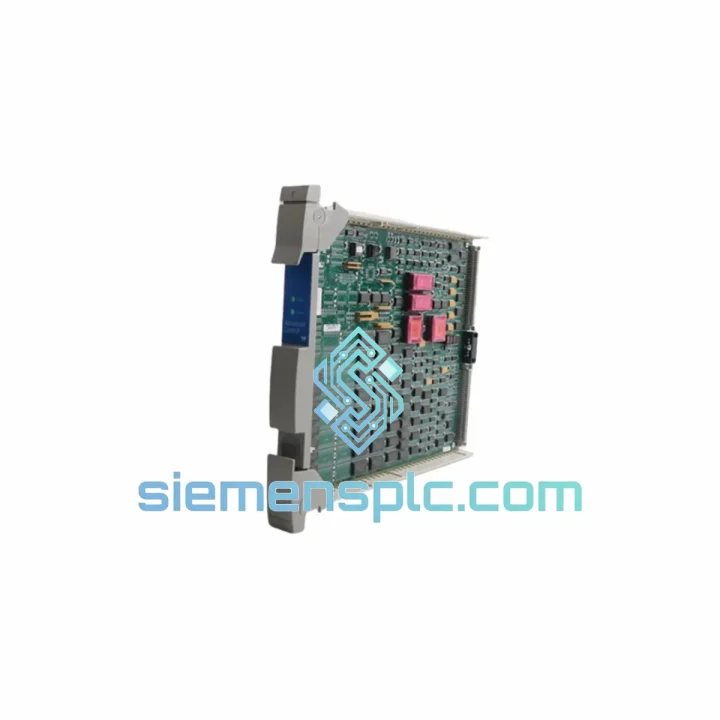

Honeywell 51201602-100 Pulse Input Module

Honeywell 51201602-100 – Stop the Bleed: Get Your Pulse Input Channel Back Online Today

Every minute a TDC 3000 pulse input channel sits dead, your flow totalization is blind. Custody transfer records gap out. Batch accounting drifts. Operations management starts asking questions you can’t answer. The Honeywell 51201602-100 Pulse Input Module is on our shelf in Xiamen right now — not on a 16-week factory lead time, not stuck in a distributor’s backorder queue. We ship same day or next business day via DHL Express or FedEx International Priority. That’s the difference between a two-day outage and a two-month nightmare.

We’ve handled enough emergency callouts to know that when a 51201602-100 fails, the plant doesn’t stop — it limps. Operators switch to manual tallying. Maintenance runs parallel checks with handheld counters. Every workaround costs labor, introduces error, and erodes the confidence of your process safety case. Don’t patch it. Replace it with a verified OEM module and restore full DCS integrity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work on TDC 3000 systems teaches you that the 51201602-100 fails in predictable ways. Here’s what to check before you pull the card — and what to watch when you slot the replacement in.

Common Failure Signatures:

• Frozen pulse count / zero totalization: The most frequent symptom. The LCN still sees the module, but the accumulator register stops incrementing. Root cause is usually a failed input comparator circuit on the card — not a wiring fault. Swap the module first before chasing field wiring.
• Erratic high-frequency counts: Module registers phantom pulses at rest. Typically caused by capacitor degradation on the input filter stage after years of thermal cycling. A replacement card resolves this immediately; recalibrate your flowmeter K-factor after swap.
• Module not recognized on LCN scan: The Universal Station shows the slot as empty or faulted. Check backplane connector pins for oxidation first. If pins are clean, the card’s LCN interface logic has failed — replace the module.
• Intermittent dropouts correlated with ambient temperature: Classic cold-solder joint behavior. The module works fine at 20 °C but drops off when the cabinet heats up past 45 °C. No amount of reseating fixes this — the card needs to be replaced and sent for board-level rework.

Replacement Procedure — Key Steps:

1. Confirm the slot address in your TDC 3000 configuration database before pulling the card. The 51201602-100 uses auto-addressing via the backplane — the replacement card will inherit the slot address automatically on power-up. No DIP switch setting required for address assignment on this model.
2. Power down the card cage slot using the local slot inhibit function in the Universal Station. Do not hot-pull without inhibiting — you risk corrupting the LCN token ring.
3. Document the field wiring termination block connections with a photo before disconnecting. The FTA wiring is plant-specific and not always labeled correctly in aging as-built drawings.
4. Seat the replacement module firmly until the card-edge connector is fully engaged. A partial insertion will cause intermittent LCN faults that are difficult to diagnose.
5. Re-enable the slot from the Universal Station. The module will perform a self-test sequence — allow 30–60 seconds for LCN registration to complete.
6. Verify pulse count is incrementing correctly against a known flow reference. Check the engineering unit scaling and K-factor configuration in the Application Module — these parameters reside in the AM, not the card itself, so they survive the swap intact.
7. Firmware note: The 51201602-100 does not carry user-upgradeable firmware. The module’s internal logic is fixed at manufacture. No firmware flashing is required or possible during replacement.

Reliability in Harsh Conditions

The 51201602-100 was designed for the realities of process plant environments — not a climate-controlled server room. Honeywell’s TDC 3000 hardware specification mandates performance across conditions that would kill consumer-grade electronics within weeks.

The PCB carries a full conformal coating that seals the board against humidity ingress, condensation cycles, and airborne corrosives common in coastal refineries and chemical plants. We’ve pulled 51201602-100 cards from card cages in Malaysian palm oil refineries and Middle Eastern gas processing facilities that had been running continuously for over 15 years — the conformal coat was still intact and the boards tested functional.

Vibration tolerance is built into the card-cage mounting architecture. The backplane connector provides mechanical retention that prevents the card from working loose under the low-frequency vibration typical of compressor halls and pump rooms. Unlike rack-mounted servers, TDC 3000 cards don’t rely on friction alone — the card locking mechanism provides positive retention.

Thermal performance is validated across the full 0–60 °C operating range with derating curves documented in the Honeywell hardware manual. In practice, well-maintained card cages with functional cooling fans keep internal temperatures well within this envelope. If your cabinet cooling has degraded, address that before installing a new card — thermal stress is the primary accelerator of capacitor aging on these modules.

Every unit we ship has been inspected for physical integrity: connector pins checked for straightness and oxidation, PCB surface examined for cracked solder joints and component damage, and housing inspected for cracks that could compromise EMC shielding. Refurbished units undergo a powered functional test on a TDC 3000 bench rig before dispatch.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateway facilities. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Standard Express Routing:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): DHL Express or FedEx IP — typically 2–3 business days door to door.
• Middle East (UAE, Saudi Arabia, Kuwait, Qatar): FedEx International Priority — typically 3–4 business days. We handle all export documentation including commercial invoice and packing list formatted for Gulf customs clearance.
• Europe (Germany, Netherlands, UK, France): DHL Express — typically 3–5 business days. CE compliance documentation available on request.
• North America (USA, Canada): FedEx IP or DHL Express — typically 3–5 business days. We declare accurate HS codes and commercial values to avoid customs holds.
• Australia & New Zealand: DHL Express — typically 4–5 business days.

All shipments include full tracking from pickup to delivery. We provide the AWB number within 2 hours of dispatch. For time-critical emergencies, we can arrange same-day pickup with DHL before the 16:00 CST cutoff — contact us before 14:00 CST to confirm availability.

Export packaging: anti-static ESD bag, foam-lined double-wall carton, desiccant sachet, and fragile labeling. The module arrives ready to install — not rattling around in a bubble-wrap envelope.
