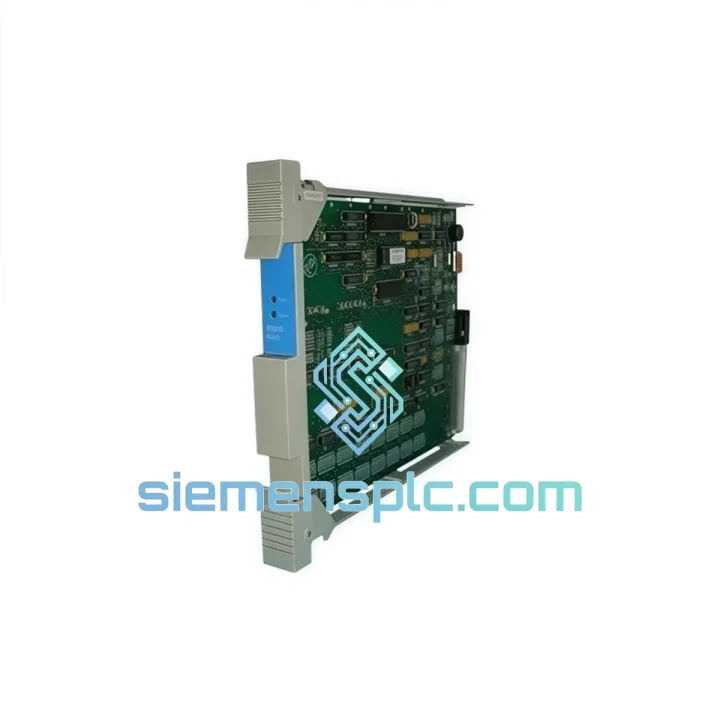

Honeywell 51303997-100 Digital Input Module – TDC 3000 DCS

Honeywell 51303997-100 — 16-Channel Discrete Signal Acquisition Interface for TDC 3000 Distributed Control Architecture

The Honeywell 51303997-100 is a 16-channel Digital Input Module (DIM) engineered for the TDC 3000 and TotalPlant Solution (TPS) Distributed Control System platforms. Within a TDC 3000 control loop, this module occupies the critical boundary layer between field instrumentation and the Local Control Network (LCN) backplane — converting dry or wet contact discrete signals into structured digital state data that the system’s Highway Gateway Module (HGM) or Universal Control Network (UCN) node can process deterministically. Without a correctly functioning DIM at this boundary, the control system loses visibility into valve positions, motor run/stop states, limit switch feedback, and relay contact status — all of which are prerequisite inputs for closed-loop process control in refining, petrochemical, and power generation environments.

The module occupies a single card cage slot in the standard TDC 3000 chassis and interfaces directly with the system’s Field Termination Assembly (FTA) via the backplane connector. Its onboard microprocessor performs continuous self-diagnostics, reporting module health and per-channel status to the TDC 3000 operator console without operator intervention. This architecture ensures that field-side faults are surfaced at the system level within one scan cycle, reducing mean time to diagnose (MTTD) in process upsets.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51303997-100 employs a grouped optical isolation topology rather than per-channel discrete optocouplers. Channels are partitioned into groups of four, each group sharing a common isolation barrier rated to withstand field-side transients up to 1,500 V peak. This design choice reflects a deliberate trade-off: grouped isolation reduces PCB real estate and component count while maintaining adequate protection against the ground potential differences (GPD) commonly encountered in large-scale process plants where field cable runs may span hundreds of meters across multiple earthing zones.

The module’s input conditioning circuit incorporates a Schmitt trigger threshold on each channel, set at approximately 12 VDC for the low-to-high transition and 8 VDC for the high-to-low transition. This 4 V hysteresis band suppresses contact bounce from mechanical relays and limit switches — a critical requirement in environments where relay chatter can generate false state transitions that propagate into the control logic as spurious process alarms or, in worst cases, incorrect actuator commands.

On the backplane side, the module’s LCN interface logic operates at 5 VDC TTL levels and communicates with the card cage’s backplane arbitration bus using a token-passing protocol native to the TDC 3000 architecture. The module’s onboard microprocessor — a fixed-function embedded controller — manages the scan cycle, assembles the 16-bit input state word, appends a module health status byte, and presents the complete data frame to the LCN bus within the system’s defined scan period. This deterministic scan behavior is what allows the TDC 3000 historian and alarm management subsystems to timestamp discrete events with millisecond-level resolution relative to the LCN clock.

EMC performance is reinforced by a multi-layer PCB stack with dedicated ground planes separating the field-side and logic-side circuits. Ferrite bead filters on the input lines attenuate high-frequency conducted interference from variable-frequency drives (VFDs) and switching power supplies — both of which are prevalent in the motor control centers (MCCs) that typically share cable trays with DCS field wiring in industrial facilities.

System Integration Benefits

• Zero-reconfiguration replacement: The 51303997-100 is a direct form-fit-function substitute for the original OEM module. No changes to the TDC 3000 database, FTA wiring, or LCN node configuration are required upon swap-out, eliminating the management-of-change (MOC) burden associated with hardware substitutions in regulated process industries.
• Deterministic scan cycle contribution: The module’s fixed-latency LCN interface ensures that discrete input state updates are delivered to the control strategy within a predictable time window, preserving the real-time determinism that TDC 3000 process controllers depend on for closed-loop control calculations.
• Per-channel LED diagnostics: Each of the 16 input channels has a dedicated status LED on the module faceplate. Maintenance technicians can verify field signal presence and channel state without connecting test equipment or accessing the operator console — reducing diagnostic time during plant upsets from minutes to seconds.
• Optical isolation protects LCN backplane integrity: By isolating field-side ground references from the LCN logic ground, the module prevents common-mode noise and ground loop currents from corrupting the backplane data bus — a failure mode that can cause intermittent communication errors across multiple modules in the same card cage.
• Wide input voltage tolerance reduces false reads: The 18–32 VDC operating range accommodates voltage drop across long field cable runs without triggering false low-state readings, which is particularly relevant in offshore and large-footprint onshore facilities where cable lengths routinely exceed 500 m.
• Continuous self-diagnostics with system-level reporting: The module’s embedded controller performs background self-tests on its internal logic and LCN interface circuitry. Any detected fault is reported as a module alarm at the TDC 3000 system console, enabling predictive maintenance scheduling before a module failure causes a process trip.
• Hot-swap capability within TDC 3000 card cage: Subject to the plant’s system configuration and safety procedures, the module supports live insertion and removal from the card cage, allowing replacement during plant operation without requiring a control system shutdown — a significant operational advantage in continuous-process facilities with high uptime requirements.
• Backward and forward compatibility across TDC 3000 / TPS generations: The module operates identically in both the original TDC 3000 and the TotalPlant Solution (TPS) successor platform, providing procurement flexibility for sites that have partially migrated from TDC 3000 to TPS without completing a full system replacement.
• Supports historian and alarm management integration: Discrete state changes captured by the 51303997-100 are time-stamped at the LCN level and forwarded to the TDC 3000 historian, enabling post-incident sequence-of-events (SOE) reconstruction with the resolution required by process safety management (PSM) and HAZOP review protocols.

Quality Assurance & Global Logistics

Every Honeywell 51303997-100 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Each module is powered on and all 16 input channels are exercised through a full state cycle — open contact to closed contact and back — using calibrated test fixtures. The LCN backplane interface is verified for correct data frame transmission. PCB surfaces, edge connectors, and faceplates are inspected under magnification for oxidation, mechanical damage, and solder joint integrity. Modules that do not pass all verification steps are quarantined and not offered for sale.

Packaging follows ESD-sensitive device handling standards: each module is sealed in a conductive anti-static bag, placed in a foam-lined inner carton, and packed in a double-wall corrugated outer carton rated for international air freight handling. Commercial documentation — including a packing list, test report, and Honeywell original part label — is included with every shipment.

Logistics from Xiamen are executed via DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas. A tracking number and commercial invoice are provided within 24 hours of dispatch. For urgent plant maintenance requirements, same-day dispatch is available for orders confirmed before 14:00 CST.

All units are covered by a 12-month warranty from the date of shipment, covering functional defects identified under normal operating conditions. Verified failures are resolved by replacement unit dispatch or full refund at the buyer’s election.
