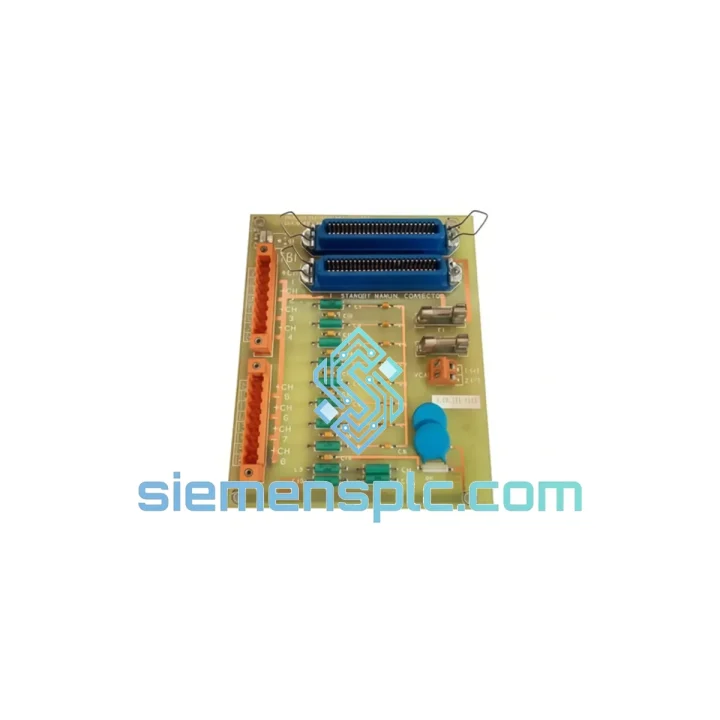

Honeywell 51304476-100 Termination Board – TDC 3000

Honeywell 51304476-100 Analog Output Termination Board: Signal Interface Architecture in TDC 3000 Control Loops

The Honeywell 51304476-100 is a dedicated analog output termination board engineered for the TDC 3000 Distributed Control System platform. Its primary function is to provide a structured, electrically isolated interface between the backplane-mounted analog output modules and the field wiring that drives final control elements—control valves, variable-speed drives, and positioners operating on the 4–20 mA current loop standard. Without a correctly functioning termination board at this junction, the analog output signal path is broken: the controller’s DAC output cannot reach the field device, and the control loop defaults to an open-loop or fail-safe state.

In a TDC 3000 architecture, the High-Performance Process Manager (HPM) or the Basic Process Manager (BPM) generates analog output commands through its I/O link. These commands traverse the backplane bus and arrive at the analog output module, which converts the digital setpoint into a precision 4–20 mA current. The 51304476-100 termination board receives this current at its backplane connector, routes it through its internal wiring matrix, and presents it at clearly labeled field terminals. This physical separation of backplane electronics from field wiring is not incidental—it is a deliberate design choice that protects the controller from field-side transients, simplifies cable management, and allows field wiring to remain intact during module replacement.

The board’s terminal block layout follows Honeywell’s standard FTA (Field Termination Assembly) convention, meaning each channel’s positive and negative terminals are grouped in a consistent, documented sequence. Maintenance technicians familiar with TDC 3000 wiring practices can identify and trace any channel without consulting ad-hoc drawings. This consistency reduces mean time to repair (MTTR) during fault isolation, a measurable operational advantage in facilities where process uptime is measured in revenue per hour.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51304476-100 operates at the physical boundary between two electrically distinct domains: the low-voltage, noise-sensitive backplane bus and the field wiring environment, which is subject to inductive transients from solenoids, motor starters, and long cable runs. Honeywell’s FTA design addresses this boundary through several hardware-level mechanisms.

Galvanic Isolation at the Field Interface: The board’s internal layout maintains a defined creepage and clearance distance between backplane-side conductors and field-side terminals. This prevents common-mode voltage from the field—which can reach several hundred volts during switching events—from coupling into the controller’s analog circuitry. The result is a stable, low-noise 4–20 mA signal at the module input, free from ground loop interference that would otherwise introduce DC offset errors into the process variable reading.

Passive Signal Routing Architecture: Unlike active signal conditioners, the 51304476-100 uses a passive copper trace routing architecture. There are no active components in the signal path between the backplane connector and the field terminals. This design eliminates failure modes associated with active components—power supply dependency, component aging, and thermal drift—making the board’s signal path inherently more reliable over a 15–20 year plant lifecycle.

EMC Compliance by Layout: The PCB layout follows Honeywell’s internal EMC design rules, with signal traces routed away from high-frequency switching paths and with ground planes providing shielding between adjacent channels. This layout discipline suppresses crosstalk between channels to levels well below the 0.1% full-scale specification required for process control accuracy.

Mechanical Keying and Polarization: The backplane connector is mechanically keyed to prevent incorrect module insertion. This hardware interlock eliminates the risk of connecting an incompatible module type to the termination board, which could otherwise result in signal mismatch or, in worst cases, damage to the output driver circuitry.

Terminal Block Durability: The screw-clamp terminals are rated for multiple wire insertion and removal cycles, supporting the maintenance practice of periodic field wiring inspection without terminal degradation. Wire gauge compatibility spans the range typically used in process plant instrumentation (0.5 mm² to 2.5 mm²), accommodating both individual conductors and shielded twisted pairs.

System Integration Benefits

• Zero-Reconfiguration Replacement: The 51304476-100 is a direct OEM-equivalent replacement. Field wiring connections, module seating, and software configuration remain unchanged during a board swap, reducing planned maintenance windows to the time required for physical replacement only.
• Deterministic Loop Response Preservation: Because the board introduces no active signal processing, it does not add latency or phase shift to the analog output signal. The control loop’s tuned PID parameters remain valid after replacement, avoiding the need for re-tuning following a maintenance event.
• Diagnostic Transparency: The terminal block layout allows technicians to measure the 4–20 mA signal at the field terminals with a standard loop calibrator, confirming whether a fault originates in the controller, the termination board, or the field wiring—without removing any module from the backplane.
• Reduced Spare Parts Inventory Complexity: A single 51304476-100 board covers multiple analog output channels within the TDC 3000 architecture. Stocking one board type addresses the termination requirements for an entire HPM I/O cabinet section, simplifying MRO inventory management.
• Compatibility with Redundant Output Configurations: In TDC 3000 installations using redundant analog output modules, the termination board’s passive architecture supports both primary and secondary module connections without requiring additional switching hardware.
• Long-Term Platform Support: TDC 3000 installations in refining and petrochemical facilities routinely operate for 25–30 years. The 51304476-100’s passive design and robust construction are consistent with this lifecycle expectation, making it a viable long-term spare for facilities not yet migrating to Experion PKS.
• Field Wiring Integrity During Module Maintenance: The FTA architecture allows the analog output module to be removed from the backplane for bench testing or replacement while field wiring remains terminated and undisturbed. This eliminates the risk of wiring errors during reinstallation.
• Interoperability with Honeywell Safety Systems: In plants where TDC 3000 analog outputs interface with Safety Instrumented System (SIS) inputs, the termination board’s defined electrical characteristics ensure that the 4–20 mA signal meets the input impedance and voltage compliance requirements of the SIS field interface, maintaining the integrity of the safety function.

Quality Assurance & Global Logistics

Every Honeywell 51304476-100 unit supplied by siemensplc.com is sourced through verified industrial automation supply channels. Prior to dispatch, each board undergoes a structured inspection protocol: visual examination for PCB damage, oxidation on terminal contacts, and connector pin integrity; continuity verification across all signal paths; and ESD-safe handling throughout the process. Units are packaged in anti-static bags with foam cushioning inside double-wall corrugated cartons, meeting ISTA 2A transport standards for international shipment.

Logistics operations are based in Xiamen, China, a major export hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and consolidated sea freight services. Standard air express delivery reaches most destinations in Southeast Asia within 3–5 business days, the Middle East and Europe within 5–7 business days, and the Americas within 6–8 business days. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. Full commercial invoice, packing list, and certificate of origin documentation are provided with every shipment to support customs clearance in all major importing countries.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from Xiamen stock to minimize process downtime.
