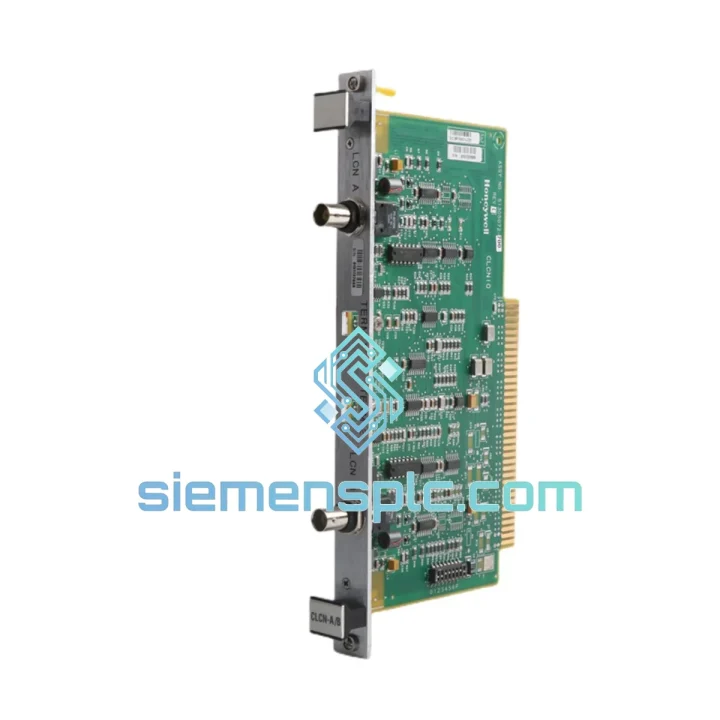

Honeywell 51305072-700 DCS I/O Module – TDC 3000 TPS

Honeywell 51305072-700 PC Card I/O Module: Field-to-Controller Signal Interface in TDC 3000 / TPS Architectures

The 51305072-700 occupies a structurally critical position within Honeywell’s TotalPlant Solution (TPS) and legacy TDC 3000 distributed control system hierarchy. As a PC Card-format I/O module, it functions as the physical signal-conditioning and data-acquisition layer between field instrumentation — transmitters, final control elements, discrete sensors — and the high-speed Universal Control Network (UCN) or Local Control Network (LCN) that carries process data to Application Modules (AM) and High-Performance Process Managers (HPM). Without a correctly functioning I/O module at this layer, the control loop is broken regardless of the computational capability of the upstream controller. This module is not a peripheral accessory; it is a load-bearing component in the control architecture.

In continuous-process industries — petroleum refining, ethylene production, ammonia synthesis, LNG liquefaction, and power generation — the TDC 3000 / TPS platform has accumulated decades of installed base. Many facilities operate these systems well beyond their original design horizon because the cost and risk of a full DCS migration outweigh the operational disruption. In this context, the availability of a verified, OEM-specification 51305072-700 module is not a convenience; it is a maintenance-critical procurement that directly affects plant uptime and process safety.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51305072-700 implements a layered signal-processing architecture that addresses three distinct engineering challenges: electrical isolation, signal fidelity, and deterministic data transfer.

Galvanic Isolation and EMC Design: Field wiring in process plants carries ground potential differences, common-mode noise from variable-frequency drives, and transient surges from switching inductive loads. The 51305072-700 employs transformer-coupled or optocoupler-based galvanic isolation at the field terminal boundary. This isolation barrier — rated to withstand the common-mode voltages typical of industrial field loops — prevents ground loop currents from corrupting the analog signal path and protects the backplane bus from field-side transients. The isolation topology also attenuates high-frequency EMI conducted along cable shields, which is particularly relevant in environments with dense motor cabling or RF-emitting equipment.

Analog Signal Conditioning: For analog input channels, the module performs anti-aliasing filtering ahead of the analog-to-digital converter (ADC). The filter cutoff is matched to the TPS scan cycle rate to prevent aliasing of high-frequency noise into the process variable reading. The ADC resolution and linearity are specified to meet the accuracy requirements of 4–20 mA transmitter loops, where a 1 % full-scale error in the I/O module would propagate directly into the process variable used by the PID control algorithm.

Backplane Bus Arbitration: The PC Card module communicates with the TPS I/O Link via a deterministic token-passing or time-division protocol managed by the I/O Link Extender. This architecture guarantees bounded latency for each module’s data update — a requirement for control loops where the I/O scan period must be predictable to within a defined jitter budget. Unlike Ethernet-based I/O systems that rely on collision-avoidance protocols, the TPS I/O Link architecture provides hard real-time guarantees that are essential for fast-responding control loops such as compressor surge control or fired-heater fuel gas regulation.

Watchdog and Diagnostic Logic: The module incorporates on-board watchdog circuitry that monitors internal processor health. If the module’s firmware execution deviates from its expected timing — due to hardware fault or memory corruption — the watchdog asserts a fault signal to the I/O Link, causing the HPM or AM to place the associated control loops in a defined safe state (typically last-value hold or manual fallback). This fail-safe behavior is a fundamental requirement for SIL-rated process applications.

System Integration Benefits

• Zero-Configuration Replacement: The 51305072-700 is a form-fit-function replacement for existing slots in TPS card cages. No firmware download, no I/O assignment reconfiguration, and no control database modification are required when replacing a failed unit with an identical part number — the module reads its channel configuration from the I/O Link on initialization.
• Backward Compatibility with TDC 3000 Infrastructure: The module operates within legacy TDC 3000 card cage assemblies as well as TPS expanded I/O enclosures, preserving the capital investment in existing field wiring, termination assemblies, and marshalling cabinets.
• Deterministic Scan-Cycle Contribution: Because the I/O Link protocol assigns each module a fixed time slot, the 51305072-700 contributes a known, bounded latency to the overall control loop execution time. This predictability is essential for tuning fast control loops and for verifying that the overall loop dead time remains within the assumptions of the PID tuning parameters.
• Diagnostic Transparency: The module reports channel-level diagnostics — open-circuit detection, out-of-range signal, and internal hardware fault — to the TPS operator console. Maintenance personnel can identify a failing channel without physical inspection of the field wiring, reducing mean time to diagnose (MTTD) during process upsets.
• Reduced Spare Parts Inventory Complexity: A single 51305072-700 part number covers multiple I/O channel assignments within the TPS architecture, allowing maintenance planners to stock fewer unique part numbers while maintaining coverage across a wider range of I/O functions.
• Support for Phased Migration Strategies: Plants executing a phased migration from TDC 3000 to a modern DCS can continue operating existing TPS I/O infrastructure — including the 51305072-700 — during the transition period, avoiding the need for a simultaneous cutover of all I/O points.
• Compatibility with Honeywell Safety Manager Integration: In plants where the TPS process control system interfaces with a Honeywell Safety Manager (SM) for SIS functions, the I/O module’s deterministic data update rate supports the timing requirements of the safety system’s process variable monitoring functions.
• Long-Term Availability from Verified Sources: Honeywell has transitioned TPS to end-of-life support status in many markets. Sourcing verified 51305072-700 units from a specialist supplier with documented inspection procedures is the only reliable path to maintaining I/O redundancy and spare parts coverage for the remaining operational life of the system.

Quality Assurance & Global Logistics

Every 51305072-700 unit supplied by siemensplc.com undergoes a structured pre-shipment verification process before dispatch from Xiamen, China. Visual inspection confirms physical integrity of the PC Card connector, label authenticity against Honeywell OEM markings, and absence of mechanical damage to the module housing. Where test bench infrastructure is available, the module is powered within a compatible card cage and verified for basic I/O link communication and channel response prior to packaging.

Packaging follows ESD-safe handling protocols: anti-static bags rated to ANSI/ESD S20.20, foam-lined inner cartons, and moisture barrier outer packaging with desiccant. This packaging specification is appropriate for air freight and sea freight shipment to any global destination.

Logistics from Xiamen are executed via DHL Express, FedEx International Priority, or SF Express International, with typical transit times of 3–7 business days to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas. Full export documentation — commercial invoice, packing list, certificate of origin, and certificate of conformance — is prepared for each shipment. A 12-month warranty covers verified units against functional failure under normal operating conditions.
