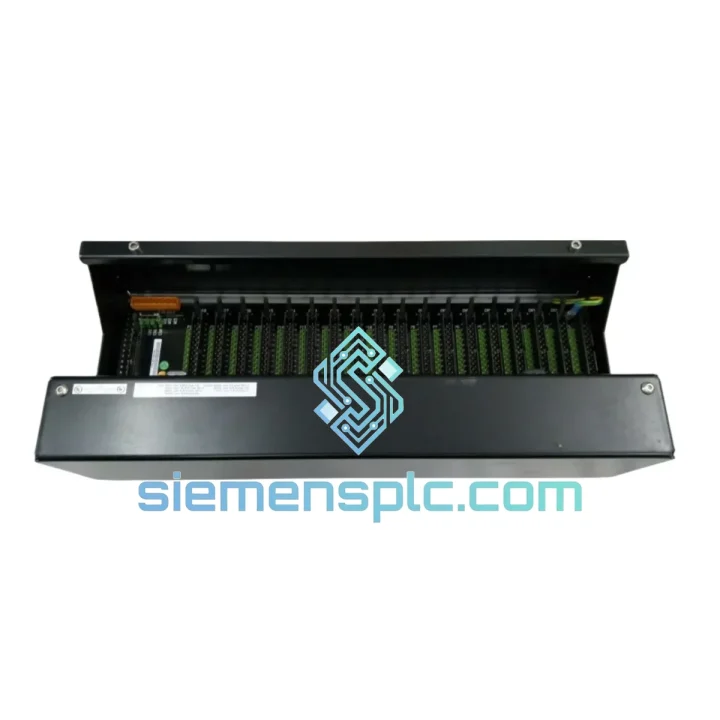

Honeywell 51305341-100 Analog Input Module

Honeywell 51305341-100 — Stop the Clock on Your Downtime. Ship Today.

Every hour your TDC 3000 system sits idle costs real money. A failed Analog Input Module means your control loops are blind — no signal, no feedback, no process. The Honeywell 51305341-100 is one of the most time-critical spares in any TPS/TDC 3000 installation, and when it fails, you need a verified replacement on-site within 24–48 hours, not weeks. We stock it. We ship it today from Xiamen. That’s the only thing that matters right now.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls on TDC 3000 systems teach you the same lessons. Here’s what actually matters when you’re standing in front of a dead AIM at 2 AM:

Common Failure Signatures for 51305341-100:

• All channels reading BAD or OFFLINE simultaneously — almost always the module itself, not the field wiring. Swap the module before chasing individual loops.
• Intermittent signal dropouts on 2–3 channels — check the FTA (Field Termination Assembly) connector seating first. If reseating doesn’t resolve it within one scan cycle, the AIM’s A/D converter section is degrading. Replace the module.
• FAIL LED lit on module faceplate — the module has failed its internal self-test. Do not attempt to reset and continue. Pull it immediately; a partially failed AIM can corrupt adjacent channel data on the backplane.
• UCN communication fault after module swap — 90% of the time this is a backplane slot address conflict. The TDC 3000 AIM uses hardware slot addressing via the chassis backplane — there are no DIP switches on this module. The slot position IS the address. Ensure you’re inserting into the exact same physical slot as the failed unit.
• Firmware mismatch alarm post-replacement — TDC 3000 / TPS systems are revision-sensitive. Confirm the replacement module’s firmware revision matches or is forward-compatible with your system’s LCN/UCN software load. Check the label on the module PCB edge. Contact us with your system’s software version if unsure — we can match the revision.

Step-by-Step Replacement Procedure:

1. Notify the control room operator — place affected loops in manual mode before extraction.
2. Verify the TDC 3000 chassis supports hot-swap for this slot. Most TPS configurations do, but confirm with your site’s system documentation before pulling live.
3. Disconnect the FTA cable from the module front connector. Label it if there’s any risk of confusion with adjacent modules.
4. Release the module ejector levers simultaneously and extract the 51305341-100 straight out — do not rock it side to side.
5. Inspect the backplane connector pins on the chassis slot for bent pins or corrosion before inserting the replacement.
6. Insert the new 51305341-100 firmly until both ejector levers click. The module will begin its self-test sequence (FAIL LED will flash briefly — this is normal).
7. Reconnect the FTA cable. Verify channel status in the operator console — all channels should return to GOOD within 2–3 scan cycles.
8. Return loops to automatic mode one at a time. Monitor PV values against field instrument readings for the first 10 minutes.

Reliability in Harsh Conditions

The 51305341-100 was engineered for the environments where process control actually lives — not a clean lab, but a refinery card room with 45°C ambient, vibration from nearby compressors, and humidity swings that would kill consumer electronics in a week.

Honeywell’s TDC 3000 AIM platform was designed to IEC 61511 functional safety architecture principles, with hardware-level channel isolation that prevents a single field wiring fault from cascading into adjacent measurement loops. The conformal coating on the PCB provides resistance to condensation and airborne contaminants common in coastal and chemical plant environments. Vibration tolerance is validated to IEC 60068-2-6 test profiles — the module won’t develop intermittent connector faults from the mechanical stress of industrial machinery running nearby. For installations in high-EMI environments (near VFDs, large motors, or switchgear), the module’s channel-to-bus isolation architecture provides an additional layer of signal integrity protection that passive filtering alone cannot match.

Units sourced through siemensplc.com are inspected at board level before dispatch: visual check for physical damage, corrosion on connector pins, and component integrity. Each unit is powered on and communication bus response is verified. ESD-safe anti-static packaging with moisture barrier is standard for all international shipments.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary industrial export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. This is not a drop-ship operation. Stock is physically on-hand and orders confirmed before 15:00 CST ship same day.

• DHL Express: Southeast Asia 1–2 days / Europe 2–3 days / Americas 2–4 days
• FedEx International Priority: Available for time-critical shipments with real-time tracking from pickup to delivery
• Documentation: Full commercial invoice, packing list, and certificate of conformance provided with every shipment — no customs delays from incomplete paperwork
• Export Classification: HS Code pre-declared for smooth customs clearance in EU, US, and ASEAN markets
• Emergency Orders: Contact us via WhatsApp for same-day shipping confirmation and tracking number within 2 hours of payment

We have shipped to refineries in Saudi Arabia, chemical plants in Germany, power stations in India, and paper mills in Canada. The logistics process is documented and repeatable. Your part arrives when we say it will.
