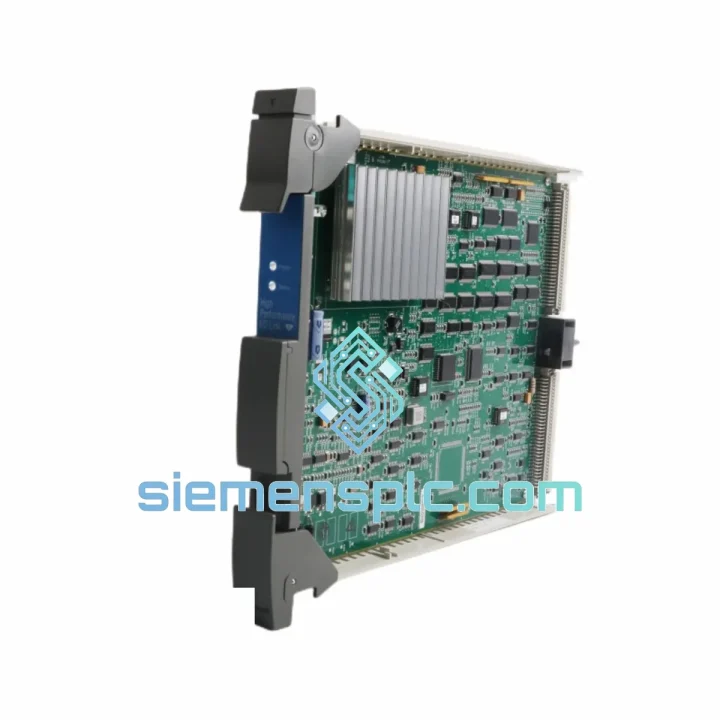

Honeywell 51309276-150 DCS Output Module – TDC 3000 TotalPlant

Honeywell 51309276-150 High Performance Output Module — Control Loop Interface in TDC 3000 / TotalPlant DCS Architecture

The Honeywell 51309276-150 occupies a structurally critical position within the TDC 3000 and TotalPlant Distributed Control System (DCS) signal chain. Its primary function is to receive digitally encoded setpoint commands from upstream controller nodes — specifically the High-Performance Controller (HPC) or Application Module (AM) — and convert those commands into conditioned analog or discrete output signals that drive field actuators: control valves, variable-frequency drives, electro-pneumatic positioners, and solenoid arrays. Without a correctly functioning output module at this layer, the closed-loop integrity of the entire process unit collapses regardless of how accurately the controller calculates its output.

In continuous process industries — petroleum refining, ethylene cracking, ammonia synthesis, LNG compression, and pharmaceutical batch control — the output module is not a passive conduit. It is an active signal conditioning stage that must maintain output accuracy under thermal drift, supply voltage fluctuation, and electromagnetic interference from adjacent high-current field cabling. The 51309276-150 is engineered to meet these demands within the electrical and mechanical envelope of the TDC 3000 I/O subsystem.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51309276-150 implements a multi-stage signal path that begins at the backplane bus receiver and terminates at the field terminal block. Understanding each stage clarifies why this module maintains output fidelity in electrically hostile environments.

Backplane Bus Arbitration: The module communicates with the HPC or AM via Honeywell’s proprietary backplane protocol. Bus arbitration logic within the module ensures that output register updates are applied atomically — partial writes that could produce transient output glitches are prevented at the hardware level. This is particularly relevant in scan-rate-sensitive loops such as compressor anti-surge control, where a 50 ms output transient can trigger an unnecessary surge event.

Digital-to-Analog Conversion Stage: The DAC stage uses a successive-approximation architecture with an internal voltage reference that is thermally compensated. Gain and offset drift across the 0–60 °C operating range is held within the module’s specified accuracy band, eliminating the need for field recalibration during seasonal ambient temperature swings in non-climate-controlled marshalling cabinets.

Output Drive and Short-Circuit Protection: The analog output driver is current-limited and includes a self-resetting protection circuit. A sustained short-circuit on the field wiring does not damage the output stage; the module clamps output current, sets a fault flag in the status register, and continues executing its scan cycle. The fault is reported to the operator console via the LCN diagnostic channel without requiring a module pull-and-replace cycle.

EMC Design — Conducted and Radiated Immunity: The module’s PCB layout routes high-frequency digital logic on inner layers, with analog signal traces on outer layers separated by ground planes. Ferrite beads on the backplane power rails suppress conducted noise from adjacent modules. The card-edge connector includes ground pins positioned to establish chassis ground before signal pins make contact during hot-insertion, preventing electrostatic discharge events from corrupting the output register during live maintenance.

Watchdog and Failsafe Logic: An independent hardware watchdog monitors the module’s internal processor. If the processor fails to service the watchdog within the configured timeout window, the watchdog asserts a failsafe output state — either hold-last-value or drive-to-zero, depending on the system configuration. This behavior is deterministic and does not depend on software execution, ensuring that field actuators reach a safe state even during a firmware exception.

Hot-Swap Mechanical Design: The module’s card-edge connector uses a sequenced pin layout: power pins are longer than signal pins, ensuring power is established before signal connections are made during insertion, and signal connections are broken before power during extraction. This sequencing prevents output transients that could disturb running control loops when the module is replaced under power.

System Integration Benefits

• Deterministic Output Latency: The module’s internal processing pipeline adds a fixed, documented latency between backplane command receipt and field output update. This determinism allows control engineers to account for output module delay in loop tuning calculations, producing tighter PID response without stability margin sacrifice.
• Transparent Diagnostics: Each output channel maintains a status word that encodes open-circuit, short-circuit, out-of-range, and watchdog-fault conditions. These status words are readable by the operator console and by upstream application modules, enabling automated alarm generation without custom ladder logic.
• Zero-Downtime Replacement: Hot-swap capability allows a faulty module to be replaced during live plant operation. The replacement module initializes its output register from the last commanded value held in the controller, minimizing process disturbance during the swap interval.
• Redundancy Architecture Compatibility: The module is compatible with Honeywell’s redundant I/O subsystem configurations. In a redundant pair, the standby module continuously mirrors the active module’s output register. Switchover on active module failure occurs within one scan cycle, with no detectable output step at the field device.
• Backward Compatibility with Legacy TDC 3000 Installations: The 51309276-150 integrates into existing TDC 3000 chassis without firmware upgrades or system builder modifications, protecting the capital investment in installed infrastructure while providing the performance characteristics of a current-production module.
• Reduced Spare Parts Inventory Complexity: A single module revision covers both TDC 3000 and TotalPlant platform deployments, allowing maintenance teams to consolidate spare parts holdings and reduce the risk of stocking an incorrect revision for a specific platform variant.
• Calibration Stability: The thermally compensated DAC reference reduces the frequency of required output calibration checks. In facilities operating under ISO 9001 or IEC 61511 maintenance regimes, fewer calibration events per year directly reduce maintenance labor costs and associated process interruption risk.
• Fault Isolation Without System Shutdown: The module’s per-channel fault reporting allows maintenance personnel to identify a failed output channel and schedule replacement during the next planned maintenance window, rather than initiating an unplanned shutdown to diagnose an undifferentiated I/O fault.

Quality Assurance & Global Logistics

Every Honeywell 51309276-150 unit supplied by siemensplc.com is sourced through verified industrial automation supply channels with documented provenance. Pre-shipment inspection includes visual examination for physical damage, connector pin integrity check, and — where requested — a functional power-on test with test report issued. Units are packed in anti-static bags with humidity indicator cards, placed in foam-lined cartons rated for international air freight handling per ISTA 2A standards.

Shipment originates from our warehouse in Xiamen, China. Standard express delivery via DHL, FedEx, or UPS reaches most destinations in Asia within 2–4 business days, Europe within 3–5 business days, and the Americas within 4–6 business days. EXW, FOB Xiamen, and CIF destination Incoterms are all supported. A Certificate of Conformance (CoC) and commercial invoice with accurate HS code declaration are provided with every shipment to facilitate customs clearance in regulated import markets.

All units carry a 12-month warranty from the date of shipment. Warranty coverage includes functional failure under normal operating conditions. Units that fail within the warranty period are replaced or credited at our discretion following return and inspection. Revision-level confirmation is provided prior to dispatch — specify your required revision when submitting your RFQ to avoid compatibility issues with your installed system.
