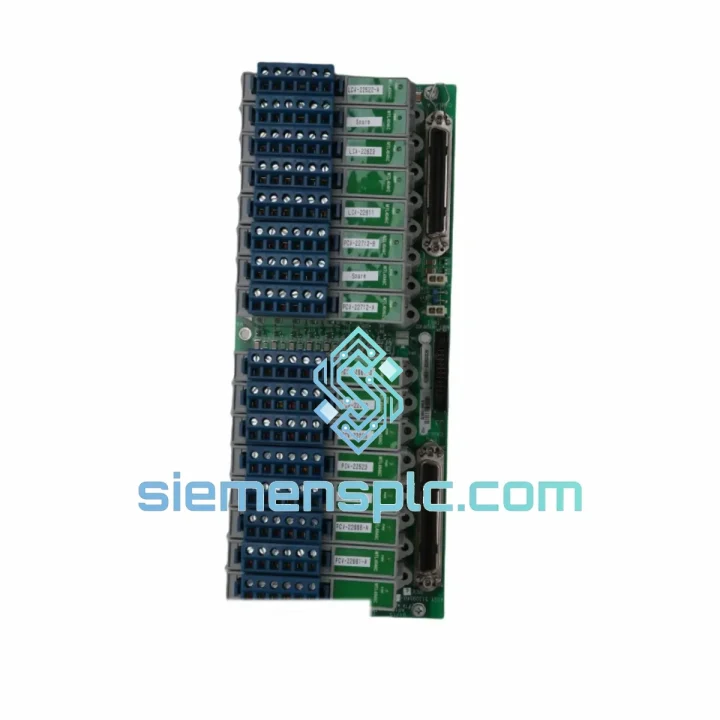

Honeywell 51309540-175 Analog Output Module

Honeywell 51309540-175 TDC 3000 Analog Output Module – Stop the Bleed, Ship Today

Every minute your TDC 3000 system sits offline with a failed analog output card, you’re burning money. A stalled reactor, a tripped boiler loop, a valve that won’t respond — the 51309540-175 is the card that’s down, and you need it back in the rack now. We stock it. We ship it. Same-day dispatch from Xiamen on confirmed orders before 15:00 CST.

This is not a listing page. This is a field replacement resource. Scroll down for swap procedures, fault codes, DIP switch notes, and logistics details. If you’re already convinced, skip to the contact block below.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. These are the failure patterns and swap gotchas that bite engineers on the 51309540-175.

Common Failure Signatures:

• Output frozen at 4 mA or 20 mA: DAC latch-up. The card is alive on the LCN but the output stage is stuck. Swap is the only fix — no firmware reset clears this.
• Intermittent output drift ±0.5 mA: Capacitor aging on the output filter stage. Typically appears after 8–12 years of continuous service. Worsens with ambient temperature swings above 45 °C.
• Card fails self-test at power-up (LED blink code 3-1): Internal RAM fault. The card will not initialize. Replace immediately — do not attempt to re-seat and retry more than twice, as repeated power cycling can corrupt adjacent LCN node tables.
• Sporadic FAIL alarm on HPM console with no field fault: LCN communication timeout. Check backplane connector pins first (oxidation is common in humid environments). If pins are clean, the card’s LCN transceiver is degraded — replace the module.
• Output channel reads correctly in software but field device does not respond: Verify field wiring loop resistance is within the card’s compliance voltage range. If wiring checks out, the output transistor on that channel has failed open.

Replacement Procedure – Key Steps:

• Step 1 – Confirm slot address: Before pulling the card, note the physical slot number in the card cage. The TDC 3000 uses slot-based I/O addressing. The replacement card inherits the slot address automatically — no manual DIP switch setting is required on this module. The HPM re-scans and re-assigns the slot on the next scan cycle after insertion.
• Step 2 – Place outputs in manual: From the operator console, place all control loops sourced from this card’s outputs into manual mode before removal. Do not rely on the HPM’s failsafe output hold — verify each loop is stable in manual.
• Step 3 – De-energize the slot (if your cage supports it): Some TDC 3000 cage configurations support individual slot power isolation. Use it. If not, a full cage power-down may be required per your site safety procedure.
• Step 4 – Swap the card: Handle only by the card ejector handles. Ground yourself via wrist strap. Seat the replacement card firmly until the backplane connector is fully engaged — a partial seat will cause intermittent LCN faults that are difficult to diagnose.
• Step 5 – Firmware match: The 51309540-175 carries onboard firmware. In most TDC 3000 installations, the HPM downloads the operating image to the card on initialization — no manual firmware loading is needed. However, if your system is running a legacy HPM firmware version below R500, verify compatibility with your Honeywell system documentation before inserting a newer hardware revision card.
• Step 6 – Verify outputs: After the card initializes (green RUN LED steady), transfer each loop back to auto one at a time. Confirm output signal at the field device before releasing the loop to automatic control.

Reliability in Harsh Conditions

The TDC 3000 platform was engineered for continuous operation in environments that would kill consumer-grade electronics. The 51309540-175 reflects that design philosophy.

The PCB uses conformal coating on all production runs, providing resistance to condensation, airborne chemical contaminants, and conductive dust — conditions common in petrochemical control rooms and coastal industrial facilities. The output stage components are rated for extended temperature cycling, which is why these cards routinely survive 10–15 years of 24/7 operation in refineries where ambient temperatures in the cable basement regularly hit 50 °C.

Vibration tolerance is built into the card’s mechanical design. The edge connector and backplane interface are specified to withstand the low-frequency vibration profiles typical of compressor halls and turbine decks. Cards that have been properly seated and not physically disturbed rarely fail due to vibration alone — most vibration-related failures trace back to a loose backplane connector, not the card itself.

Humidity is the more common environmental killer. The conformal coating handles moderate humidity, but cards installed in poorly sealed enclosures in tropical or coastal environments can develop corrosion on the backplane connector gold fingers over time. Inspect the connector on your failed card — if you see green oxidation, clean the replacement card’s connector with IPA before insertion and address the enclosure sealing issue to prevent recurrence.

Every unit we ship has been visually inspected under magnification, powered on, and verified for correct output channel response across the full 4–20 mA range before packaging. ESD-safe handling and anti-static packaging are standard — not optional.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct DHL and FedEx Express gateway access. This matters when you’re in an emergency shutdown and every hour counts.

• Same-day dispatch: Orders confirmed with payment before 15:00 CST ship the same business day.
• DHL Express Worldwide: Xiamen to most major industrial hubs in Europe, Middle East, and Southeast Asia in 2–4 business days. North America typically 3–5 business days.
• FedEx International Priority: Available as an alternative carrier. Transit times comparable to DHL. We select the faster option based on your destination at time of booking.
• Full tracking provided: AWB number sent via email within 2 hours of dispatch. Real-time tracking link included.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for customs clearance. HS code pre-declared to minimize customs hold risk.
• Emergency freight: For critical shutdowns requiring next-flight-out or charter freight, contact us directly on WhatsApp. We have handled emergency air freight to offshore platforms and remote sites — we know how to move fast when the situation demands it.

We do not use consolidators or third-party freight forwarders for express shipments. Direct carrier booking means no intermediate handling delays and a clean chain of custody from our warehouse to your receiving dock.
