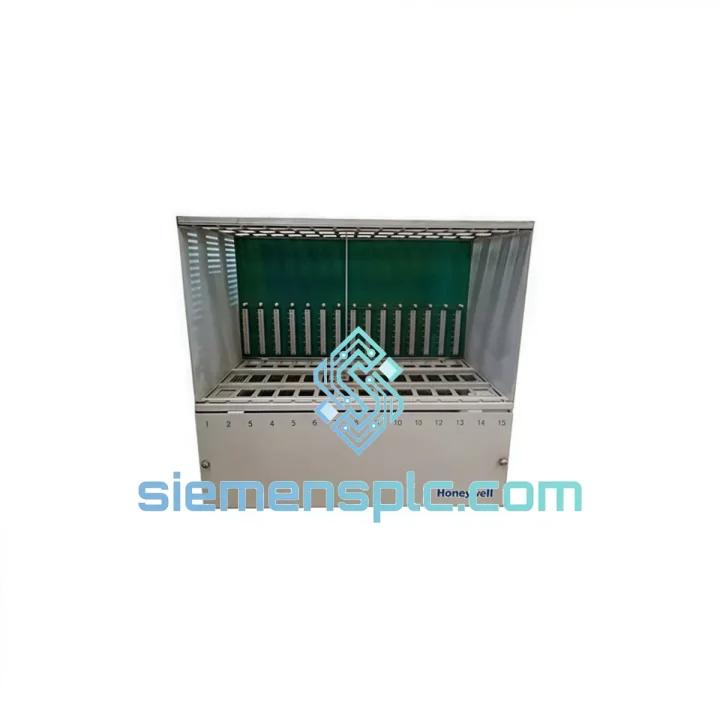

Honeywell 51401546-100 I/O File Chassis Rack

Honeywell 51401546-100 I/O File Chassis Rack — Stop the Clock on Your Downtime

Every minute your TDC 3000 or TPS system sits idle, the losses compound. A failed I/O chassis rack doesn’t just halt one loop — it can take down an entire process segment, triggering cascading alarms, manual overrides, and emergency shutdowns that cost far more than the part itself. The Honeywell 51401546-100 I/O File Chassis Rack is the structural and electrical backbone of your distributed control system’s I/O subsystem. When it fails, you need an exact replacement — not a workaround, not a “compatible” substitute — the real part, tested, traceable, and on a plane to your site within 24 hours.

We stock the 51401546-100 Rev.B at our Xiamen warehouse. No lead-time games, no broker markups, no waiting on factory allocation. If you’re reading this during an active outage, stop scrolling and contact us now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping an I/O chassis rack in a live TDC 3000 environment is not a plug-and-play operation. Here’s what ten years of field work has taught me about getting this right the first time:

1. Confirm the fault before you pull the chassis. A chassis failure typically presents as multiple I/O modules going offline simultaneously — not one card, but a whole file. Check the system console for a cluster of “Module Not Responding” or “I/O Link Failure” alarms on the same file address. If only one module is alarming, the chassis is probably fine; chase the card or the backplane connector first.

2. Document the slot map before removal. Photograph every module position. TDC 3000 uses file/slot addressing for I/O assignment. If modules are reinstalled in the wrong slots, the system will either reject them or — worse — silently map them to the wrong process tags. This is how you get a temperature reading on a flow controller.

3. Rev.B vs Rev.A — don’t mix them blindly. Rev.B introduced improved EMI shielding and a revised chassis ground path. In most installations, Rev.B is a drop-in for Rev.A. However, in older TDC 3000 cabinets with original backplane wiring, verify that the ground lug torque spec matches your cabinet’s bonding scheme. A floating chassis ground in a high-noise environment will cause intermittent comms faults that are nearly impossible to trace.

4. Power sequencing matters. When reinstalling, power the chassis before inserting modules. Hot-inserting cards into an unpowered chassis that then powers up can cause inrush current spikes that damage module input circuits. Bring the chassis up first, confirm backplane voltage rails (24 VDC ±5%), then seat modules one at a time.

5. Firmware alignment check. After replacement, run a full I/O checkout from the engineer’s console. Confirm each module’s firmware version matches the system’s expected baseline. A mismatch won’t always throw an alarm immediately — it may surface as a subtle calibration drift or a sporadic comms timeout under load.

6. Common fault codes to watch:

• “I/O File Offline” — Chassis backplane power loss or failed chassis-to-controller link. Check 24 VDC supply and cable seating.
• “Module Not Responding” (multiple, same file) — Chassis backplane failure. This is your primary indicator for a 51401546-100 replacement.
• “Checksum Error on File X” — Corrupted backplane communication. Can indicate a failing chassis or a grounding issue. Swap chassis first.
• “Redundancy Mismatch” — If running redundant I/O, ensure both chassis are the same revision. Rev.A and Rev.B in a redundant pair can cause handoff failures.

Reliability in Harsh Conditions

Process plants are not data centers. The 51401546-100 was engineered for environments where ambient temperatures swing 40°C between day and night shifts, where vibration from compressors and pumps is constant, and where humidity from steam leaks or coastal air can corrode unprotected electronics within months.

Rev.B’s enhanced EMI shielding addresses a real-world problem: high-voltage drives, motor starters, and welding equipment in adjacent panels generate interference that can corrupt backplane communications on older chassis designs. The revised ground path in Rev.B provides a lower-impedance return for induced currents, keeping signal integrity intact even in electrically noisy cabinets.

For installations in tropical or coastal environments — common in petrochemical and offshore applications — we recommend inspecting the chassis connector pins for oxidation during any planned maintenance window. Honeywell’s conformal coating on the backplane PCB provides baseline protection, but connector interfaces are always the vulnerability. A light application of contact cleaner and a visual inspection takes ten minutes and can prevent a multi-hour outage.

Vibration tolerance is validated to IEC 60068-2-6 standards. In high-vibration environments (compressor skids, rotating equipment platforms), verify that all module locking tabs are fully engaged after installation. A module that vibrates loose from its backplane connector will generate intermittent faults that are extremely difficult to reproduce during a maintenance window.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock parts. Here’s the actual process from your order to your receiving dock:

• Order confirmation: Within 2 hours of payment or PO receipt during business hours (UTC+8, Mon–Sat).
• Export documentation: Commercial invoice, packing list, and Certificate of Conformance prepared same day. For customers requiring EUC or end-user certificates, allow one additional business day.
• Carrier selection: DHL Express or FedEx International Priority, based on destination and customer preference. Both carriers provide door-to-door tracking with customs clearance included.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days | Africa 4–6 days.
• Customs HS code: 8537.10 (Boards, panels, consoles for electric control). We handle all export classification. Import duties are the buyer’s responsibility; we can provide a pro-forma invoice for customs pre-clearance on request.
• Emergency shipments: For active plant outages, contact us via WhatsApp for priority processing. We have shipped parts within 4 hours of order confirmation for critical shutdowns.

We do not use freight forwarders for express shipments. Every urgent order goes direct on DHL or FedEx with a dedicated tracking number provided within 1 hour of dispatch.
