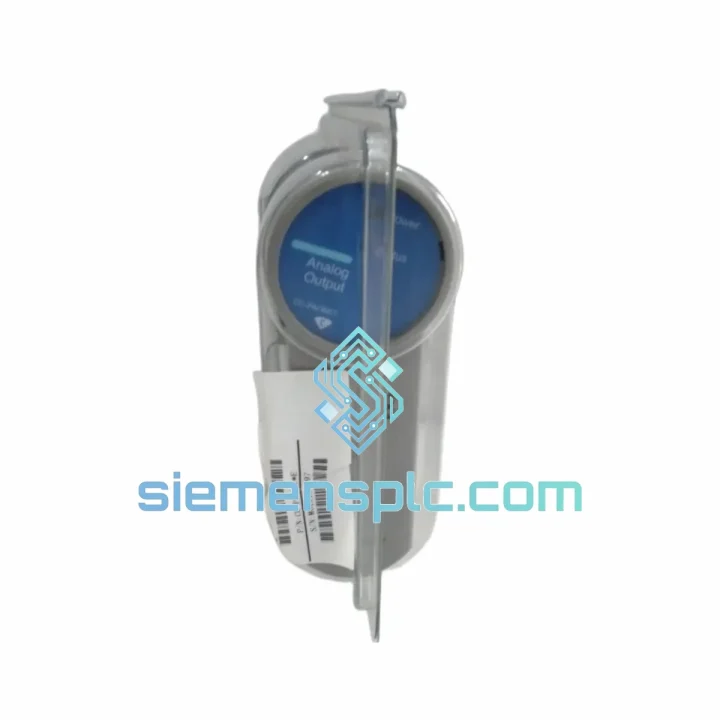

Honeywell CC-PAON01 / 51410070-175 — 8-Channel Analog Output Module for Experion PKS C300 Series C I/O

The CC-PAON01 (manufacturing part number 51410070-175) is Honeywell’s standard 8-channel analog output module within the Series C I/O subsystem, designed exclusively for integration with the Experion PKS C300 Controller platform. Each of its eight channels delivers a precision 4–20 mA current output with 16-bit DAC resolution, providing 65,536 discrete output steps across the full engineering range. This level of resolution translates directly to sub-0.1% positioning accuracy at the field device — a requirement in tight control loops governing valve positioners, I/P transducers, and variable-frequency drive speed references in continuous process plants.

The module occupies a single slot on the Series C I/O Link backplane (CC-PCNT01 or CC-PCNT02) and communicates with the C300 Controller over the redundant C-Link I/O bus. On every controller scan cycle, the C300 transmits updated output setpoints to the CC-PAON01, which converts each digital value to a stable, galvanically isolated 4–20 mA loop current. HART digital signals — conforming to HART 5, 6, and 7 — are superimposed on the analog loop and passed through to the C300 for device-level diagnostics and remote configuration without interrupting the primary control signal. Channel status, loop integrity flags, and self-diagnostic results are returned to the controller on the same scan, with alarm conditions propagated to the Experion operator station in real time.

In process industries where unplanned downtime carries six-figure hourly cost penalties, the CC-PAON01’s architecture addresses three failure modes that account for the majority of analog output incidents: open-loop wire breaks, ground-loop interference, and silent module degradation. Open-loop detection is implemented per channel — a broken field wire or open-circuit condition is flagged within one scan cycle and logged to the Experion historian. Galvanic isolation between channels and between the channel group and the backplane bus eliminates ground-loop currents that would otherwise introduce DC offset errors in electrically noisy environments such as motor control centers and high-voltage switchgear rooms. Continuous on-board self-test routines monitor DAC linearity and power supply rails, reporting module health to the C300 before a degradation event reaches the process.

siemensplc.com maintains verified stock of the CC-PAON01 / 51410070-175 and ships globally from Xiamen, China. Each unit undergoes multi-stage functional verification prior to dispatch, with full traceability documentation provided. A 12-month warranty covers defects in materials and workmanship under normal operating conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CC-PAON01’s internal architecture separates the digital control domain from the analog field domain at two distinct isolation boundaries. The first boundary sits between the C-Link backplane bus and the module’s internal microcontroller: optocouplers rated for ≥2,500 V isolation voltage block any backplane-side transient from reaching the DAC circuitry. The second boundary is implemented between each channel’s output stage and the module’s common analog ground plane, using per-channel DC-DC converters and output optocouplers to achieve channel-to-channel isolation. This two-tier isolation topology means a field-side fault on one channel — such as a wiring short to a high-voltage rail — cannot propagate to adjacent channels or corrupt the backplane bus.

The 16-bit DAC on each channel uses a successive-approximation architecture clocked at a rate that allows full-scale settling within the C300’s minimum scan period. Output current is generated by a voltage-to-current converter with a precision reference resistor in the feedback path; resistor tolerance is laser-trimmed at the factory to achieve the ±0.1% accuracy specification across the operating temperature range. Temperature coefficient of the reference is specified at <10 ppm/°C, ensuring that output drift over the 0–60°C operating range remains within the stated accuracy budget without field recalibration.

HART pass-through is implemented by coupling the HART FSK signal (1,200 Hz / 2,200 Hz) onto the 4–20 mA loop through a band-pass filter network that presents high impedance to the DC current path. The C300 Controller’s HART master function communicates with field devices via this path at 1,200 baud, with the CC-PAON01 acting as a transparent physical layer. No HART modem hardware resides in the module itself — the signal path is purely passive from the HART perspective, which eliminates a potential failure point and ensures compatibility with all HART revisions without firmware dependency.

EMC performance is addressed at the PCB layout level: the analog output traces are routed on inner layers with ground-plane shielding above and below, minimizing capacitive coupling from the digital clock lines on the outer layers. Ferrite beads are placed in series with each channel’s output terminal to attenuate high-frequency common-mode noise injected from long field cable runs. The module meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/burst), and IEC 61000-4-5 (surge) immunity levels appropriate for industrial process control environments.

System Integration Benefits

• Deterministic scan-cycle output update: The C-Link bus protocol guarantees that output values written by the C300 are applied to the DAC within a bounded latency, supporting control loops with scan periods as short as 100 ms without output jitter.
• Per-channel HART diagnostics without multiplexers: All 8 channels support simultaneous HART communication, eliminating the need for external HART multiplexers and reducing panel wiring complexity and associated failure points.
• Transparent fault propagation to operator station: Wire-break, over-range, and module-health alarms are transmitted to the Experion operator station within one scan cycle, enabling operators to respond before a process deviation develops into a trip.
• Hot-swap module replacement: The Series C I/O architecture permits module extraction and insertion under power in non-redundant configurations, reducing maintenance-window duration and eliminating the need for a full controller shutdown to replace a suspect module.
• Redundant I/O architecture compatibility: When paired with a redundant backplane and dual C300 controllers, the CC-PAON01 participates in Honeywell’s Series C redundant I/O scheme, providing bumpless transfer of output control on primary controller failure.
• High channel density reduces cabinet footprint: Eight outputs per module slot versus four on legacy Honeywell analog output cards halves the slot count for equivalent I/O point counts, reducing cabinet size, backplane cost, and field wiring termination labor.
• Integrated self-test reduces undetected failure risk: On-board diagnostics continuously verify DAC linearity and power supply integrity, reporting degradation before it manifests as an out-of-tolerance output — a requirement in SIL-assessed safety instrumented functions.
• Backward compatibility across Experion PKS releases: The CC-PAON01 is supported from Experion PKS R400 through R520 and later, protecting the capital investment in installed I/O hardware across multiple DCS software upgrade cycles.

Quality Assurance & Global Logistics

Every CC-PAON01 / 51410070-175 unit dispatched by siemensplc.com is sourced as genuine Honeywell hardware and subjected to a structured pre-shipment verification protocol. Visual inspection covers board-level examination for physical damage, oxidation on connector contacts, and verification of Honeywell part markings against known-authentic reference samples. Functional bench testing exercises each of the eight output channels across the full 4–20 mA range using calibrated current measurement equipment traceable to national standards; output accuracy is confirmed against the ±0.1% specification and recorded in a per-unit test report. HART pass-through is verified on all channels using a HART 7 communicator. Firmware revision is documented and cross-referenced against Honeywell’s compatibility matrix for the customer’s stated Experion PKS release.

Shipments originate from Xiamen, China, using DHL Express, FedEx International Priority, or UPS Express Saver, with full tracking provided from collection to delivery. Standard transit times are 3–5 business days to major destinations in Southeast Asia, the Middle East, and Europe; 5–7 business days to North America and South America. Export documentation — commercial invoice, packing list, certificate of origin, and packing declaration — is prepared for each shipment to facilitate customs clearance. For customers requiring pre-shipment inspection reports or third-party inspection, arrangements can be made upon request. The 12-month warranty covers functional defects under normal operating conditions and is supported by siemensplc.com’s technical team, who can assist with installation verification and compatibility questions post-delivery.
