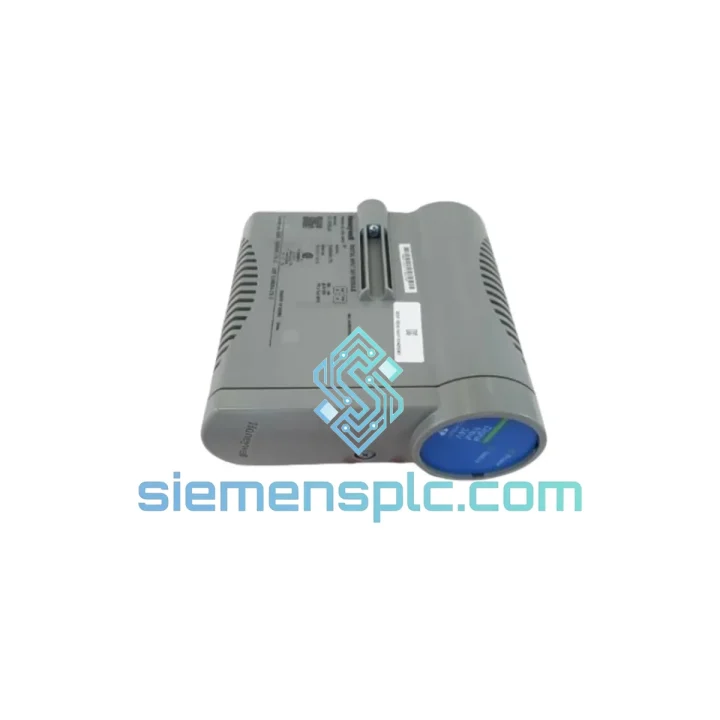

Honeywell CC-PAON01 51410070-176 Analog Output Module – Experion PKS C300

Honeywell CC-PAON01 51410070-176 – Precision Analog Output Interface for Experion PKS C300 Distributed Control Systems

The CC-PAON01 (catalog reference 51410070-176) is a dedicated analog output module within Honeywell’s Series C I/O subsystem, engineered to serve as the terminal signal-conditioning stage between the C300 controller’s digital command domain and the 4–20 mA field bus that drives final control elements. In a regulatory control loop, the module’s function is unambiguous: it receives a 16-bit digital word from the C300 controller over the FTE (Fault Tolerant Ethernet) backplane, converts it through an internal D/A stage, and sources a precision current output to the field device — whether a control valve positioner, a variable-frequency drive reference input, or an electro-pneumatic transducer. The accuracy and stability of that conversion directly determines loop performance: offset error, gain drift, and settling time in the output stage translate one-for-one into steady-state deviation and dynamic response error in the controlled variable.

Within the Experion PKS architecture, the CC-PAON01 occupies a Series C I/O carrier slot and communicates with the C300 controller via the CIOM-A (C300 I/O Module Adapter) bus segment. The module does not operate as a standalone device; it is a subordinate node whose configuration, diagnostics, and output values are entirely managed by the C300 controller’s control execution environment. This tight architectural coupling means that module health — channel fault status, output saturation flags, and communication loss detection — is surfaced directly in the Experion Station operator display and in the system’s alarm management layer, giving maintenance engineers a single-pane view of I/O integrity without requiring field-side instrumentation checks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CC-PAON01’s internal architecture reflects the design priorities of a process-industry output module: deterministic conversion latency, robust galvanic isolation, and fault-transparent operation. Several hardware design decisions are worth examining in detail.

Galvanic Isolation Architecture: Each output channel is isolated from the module’s internal logic bus and from adjacent channels using optocoupler-based isolation barriers. This topology prevents ground loop currents — common in large industrial installations where field cable shields may be grounded at multiple points — from introducing offset errors into the D/A conversion chain. The isolation barrier also limits the propagation of field-side transients (induced by nearby motor starts, contactor switching, or lightning events) into the controller backplane, protecting the C300 and adjacent I/O modules from damage.

D/A Conversion and Output Drive Stage: The 16-bit D/A converter provides a theoretical resolution of approximately 0.0015% of full scale (0.24 µA per LSB across the 4–20 mA span). The output drive stage is a precision voltage-to-current converter (V/I) that maintains the programmed current independent of load resistance variations within the specified compliance voltage range. This current-source topology is inherently more immune to resistive cable losses than voltage-output alternatives, which is why 4–20 mA remains the dominant signal standard in process instrumentation at cable runs exceeding 100 m.

EMC Design: The module’s PCB layout incorporates ground plane segmentation to separate the analog output circuitry from the digital logic section, reducing capacitive coupling of high-frequency switching noise from the CIOM-A bus transceiver into the D/A output stage. Ferrite bead filtering on the power supply rails attenuates conducted emissions from the backplane power bus. These measures allow the module to meet IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels appropriate for industrial cabinet installation.

Watchdog and Fail-Safe Output Behavior: If communication between the C300 controller and the CC-PAON01 is interrupted — due to a controller fault, a carrier bus error, or a planned controller switchover in a redundant configuration — the module’s internal watchdog logic drives each output channel to a pre-configured fail-safe state. The fail-safe value (typically 4 mA, 20 mA, or hold-last-value) is configured in the Experion PKS Control Builder and stored in the module’s non-volatile memory, ensuring that field devices receive a defined signal even during controller maintenance windows.

System Integration Benefits

• Deterministic Output Update Rate: The CC-PAON01 updates its output channels synchronously with the C300 controller’s execution cycle, ensuring that analog output values track controller setpoints without inter-cycle lag — a requirement for fast regulatory loops such as flow and pressure control where process time constants are measured in seconds.
• Online Diagnostics Without Process Interruption: The module continuously reports channel status — including open-circuit detection, output saturation, and communication health — to the Experion PKS system without requiring the loop to be taken out of service. Maintenance engineers can assess I/O health from the operator station during normal operation.
• Hot-Swap Replacement: The Series C I/O architecture supports online module replacement. A faulty CC-PAON01 can be extracted from its carrier and replaced with a spare while the C300 controller continues to execute other control strategies, limiting the scope of any maintenance-induced process disturbance to only the loops served by the replaced module.
• Redundant Controller Compatibility: In C300 redundant controller configurations, the CC-PAON01 participates in bumpless switchover. The standby controller maintains a synchronized copy of all output values; upon primary controller failure, the standby assumes control and the module’s outputs transition without a step change that would disturb the process.
• Unified Engineering Environment: Module configuration — channel scaling, engineering units, fail-safe values, and alarm limits — is performed entirely within Honeywell Control Builder. There is no separate module-level configuration tool, reducing the risk of configuration inconsistencies between the controller database and the physical I/O hardware.
• Alarm and Event Integration: Channel-level faults detected by the CC-PAON01 are propagated as system alarms within the Experion PKS alarm management framework, with configurable priority levels and suppression logic. This integration ensures that I/O faults appear in the same alarm rationalization workflow as process alarms, rather than in a separate maintenance system that operators may not monitor continuously.
• Scalable I/O Expansion: The Series C I/O subsystem supports multiple carriers per C300 controller, allowing the analog output channel count to be expanded incrementally as the control system scope grows — without requiring a controller upgrade or architectural redesign.
• Long-Term Platform Availability: The Experion PKS C300 platform has been in production since the mid-2000s and remains Honeywell’s primary DCS offering for continuous process industries. The CC-PAON01 is a current-production module with an established spare parts supply chain, reducing the lifecycle risk associated with obsolescence planning for long-duration plant assets.

Quality Assurance & Global Logistics

Every CC-PAON01 unit supplied by siemensplc.com is sourced as genuine Honeywell original hardware. Authenticity verification includes cross-referencing the module’s part number label, revision code, and date code markings against Honeywell’s published documentation. Units undergo visual inspection for physical integrity — connector pin condition, PCB surface condition, and label legibility — prior to packaging.

Modules are packed in ESD-safe anti-static bags, placed in rigid foam-lined cartons, and sealed with moisture-barrier desiccant packs for international transit. This packaging specification is appropriate for both air freight and sea freight shipment modes. Export documentation — commercial invoice, packing list, and certificate of conformity — is prepared for each shipment to facilitate customs clearance in the destination country.

Logistics operations are based in Xiamen, China, with established partnerships with DHL Express, FedEx International Priority, and freight forwarding agents for LCL and FCL sea freight. Typical air freight transit times from Xiamen to major industrial hubs: Europe 3–5 business days, Southeast Asia 2–3 business days, Middle East 3–4 business days, North America 4–6 business days. A tracking number is issued upon dispatch for every shipment.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are handled directly by siemensplc.com; defective units are replaced or credited without requiring the customer to engage Honeywell’s service organization directly.
