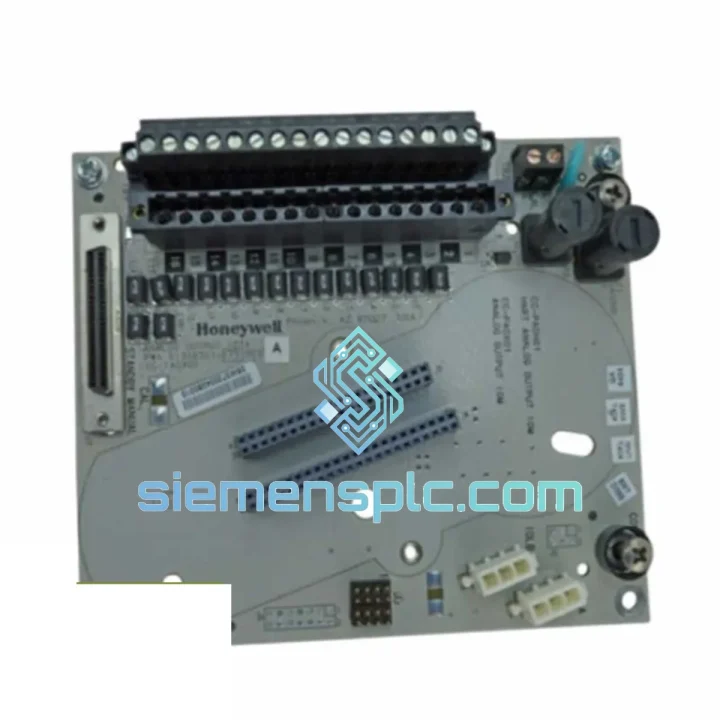

Honeywell CC-TAOX01 51308351-175 Analog Output Module

CC-TAOX01 51308351-175 — Stop the Bleed: Every Hour of DCS Downtime Costs You More Than This Module

Your C300 controller is throwing faults. The AO module is dead. The board is screaming. You’ve already lost one shift and the plant manager is on your radio. You don’t need a brochure — you need a module on a plane tonight. That’s exactly what we do.

The Honeywell CC-TAOX01 (51308351-175) is in stock at our Xiamen warehouse. We’ve shipped this exact part to refineries in Malaysia, chemical plants in Saudi Arabia, and power stations in Eastern Europe — all on emergency timelines. We know what’s at stake when this card fails.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most Common Failure Modes on the CC-TAOX01:

1. Channels Stuck at 4 mA or 20 mA (Rail Saturation)
This is the most frequent field complaint. The DAC output stage fails open or shorted, pinning one or more channels at the rail. In Experion Control Builder, you’ll see the AO point status flip to BAD with a Hardware Fault sub-status. Check the FIM (Fault Isolation Module) LED on the carrier — solid amber on the AO slot confirms the module, not the field wiring. Before condemning the card, verify loop resistance is under 750 Ω and there’s no wiring short on the terminal block.

2. HART Communication Loss
If HART pass-through drops while the 4–20 mA loop is still live, suspect the HART modem section of the module. FDM (Field Device Manager) will show the device as Not Communicating. Confirm the issue is the module and not the field device by temporarily connecting a HART communicator directly at the terminal block. If the handheld talks to the device but FDM doesn’t, the CC-TAOX01’s HART modem has failed.

3. Intermittent Output Drift
Thermal cycling in high-ambient cabinets (above 50°C) can cause the internal reference voltage to drift, producing ±0.5–2% output error that wanders with temperature. This often gets misdiagnosed as a PID tuning issue. Log the output mA value against cabinet temperature over a shift — if they correlate, the module is failing thermally.

Replacement Procedure — Step by Step:

Step 1 — Pre-Swap Verification
Document the current hardware revision (HW Rev) and firmware version from the module label and from Experion Control Builder → Module Properties. The CC-TAOX01 has had multiple hardware revisions; confirm your replacement unit matches or is a qualified upgrade. Mismatched firmware between the C300 and the AO module can cause the controller to reject the card on insertion.

Step 2 — Hot-Swap Protocol
The Series C I/O architecture supports online module replacement without a full controller shutdown — but only if the I/O carrier remains powered and the C300 is in RUN mode. Place the affected AO channels in Manual mode in Experion before pulling the card. This holds the last output value at the field device and prevents actuator bump. Do NOT pull the module while channels are in Auto — you will get a step-change to the configured fault state (typically 4 mA or hold-last-value depending on your FO configuration).

Step 3 — Physical Swap
Press the module release latch, slide the CC-TAOX01 straight out of the carrier. Inspect the backplane connector on the carrier for bent pins or corrosion before inserting the replacement. Seat the new module firmly until the latch clicks. The C300 will detect the new module within 5–15 seconds and begin the self-addressing handshake — no DIP switches, no manual address configuration. Series C I/O is auto-addressed via the carrier slot position.

Step 4 — Post-Swap Commissioning
In Control Builder, navigate to the module and verify the status returns to OK. Check that all 8 AO channels report GOOD quality. Perform a loop check on each channel: command 4 mA, 12 mA, and 20 mA from the Experion faceplate and verify at the field device with a calibrated mA meter. If HART devices are connected, confirm FDM re-establishes communication within 2 minutes of module insertion.

Step 5 — Firmware Compatibility Check
If the replacement module has a different firmware version than the failed unit, run a compatibility check in Control Builder. Experion R400 and later will flag firmware mismatches automatically. In most cases, the system will accept the module and operate normally; however, certain HART diagnostic features may require a firmware update performed through the Experion server — not field-programmable via the module itself.

Reliability in Harsh Conditions

The CC-TAOX01 was designed for continuous operation in process plant environments where air conditioning is a luxury, not a guarantee. The module’s conformal-coated PCB resists condensation and airborne chemical contaminants common in coastal refineries and chemical processing facilities. Vibration tolerance meets IEC 60068-2-6 test profiles — the module stays seated and operational on platforms subject to pump and compressor-induced structural vibration.

Channel-to-channel isolation is not just a spec-sheet number. In real installations with mixed grounding schemes across a large terminal block, isolation prevents a ground fault on one actuator circuit from corrupting the output of adjacent channels — a failure mode that can cascade into a multi-loop upset if the module lacks proper isolation architecture.

The operating temperature ceiling of 60°C is validated under continuous load, not just bench conditions. In practice, modules installed in poorly ventilated marshalling cabinets in tropical climates have demonstrated multi-year MTBF when ambient temperatures are managed below this threshold. We recommend cabinet cooling audits as part of any CC-TAOX01 replacement project in high-ambient environments.

All units we ship are inspected for physical integrity: connector pin condition, label legibility, housing cracks, and backplane connector cleanliness. Hardware revision and any visible firmware label are documented before dispatch. We do not ship modules with damaged connectors or missing identification labels — these are non-negotiable quality gates for B2B industrial supply.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental: it gives us same-day handoff to DHL Express and FedEx International Priority for most emergency orders placed before 14:00 CST.

Standard Emergency Shipment Timeline:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx IP
• Transit to Southeast Asia (SG, MY, TH, ID): 1–2 business days
• Transit to Middle East (AE, SA, KW, QA): 2–3 business days
• Transit to Europe (DE, NL, GB, FR): 3–4 business days
• Transit to Americas (US, CA, BR, MX): 3–5 business days
• Transit to Australia / New Zealand: 3–4 business days

All shipments include a commercial invoice, packing list, and country-of-origin certificate. For orders requiring ATA Carnet, CITES documentation, or specific customs commodity codes (HS 8537.10 for PLC/DCS modules), we prepare the paperwork in advance to prevent customs clearance delays — a common bottleneck that adds 24–48 hours to emergency deliveries when documentation is incomplete.

We provide real-time tracking numbers within 2 hours of dispatch. For critical shipments, our logistics team monitors the consignment through customs clearance and proactively contacts the destination broker if a hold is flagged. You will not be chasing a tracking number while your plant sits idle.
