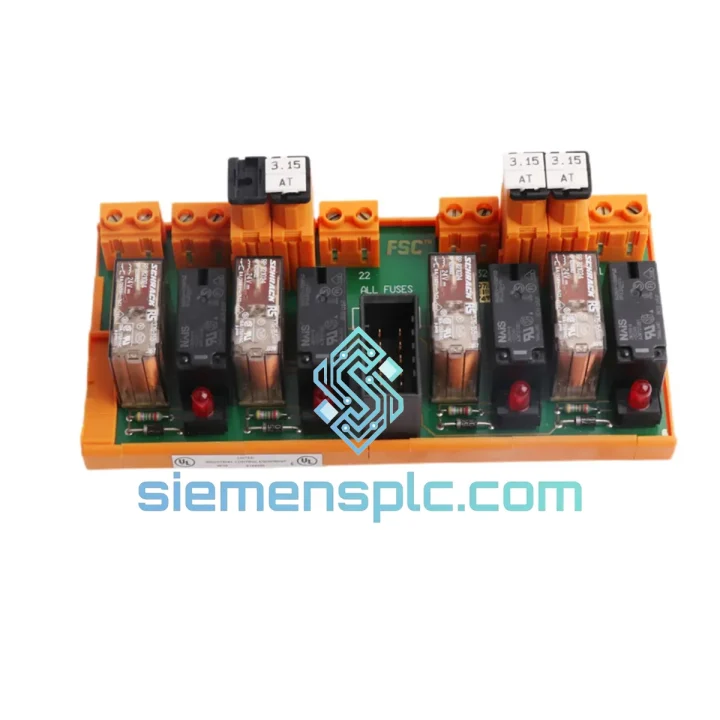

Honeywell FTA-T-08 Field Termination Assembly – TDC 3000 TPS

Honeywell FTA-T-08: 8-Channel Discrete Output Termination Interface for TDC 3000 and TotalPlant DCS Architectures

Within the Honeywell TDC 3000 and TotalPlant Solution (TPS) distributed control system hierarchy, the Field Termination Assembly occupies the boundary layer between controller logic and physical process devices. The FTA-T-08 is the 8-channel discrete output variant of this interface tier. Its function is unambiguous: it receives binary command states from the High-Performance Process Manager (HPM) digital output I/O card via the backplane bus and drives eight independent field terminals to the corresponding switched voltage state. Every solenoid valve actuation, motor starter enable signal, and alarm relay command in a TDC 3000 loop passes through this assembly before reaching the field device.

The FTA-T-08 is not a general-purpose relay board. It is a purpose-engineered termination assembly validated within the Honeywell TDC 3000 hardware ecosystem. Its backplane connector pinout, channel mapping, and electrical characteristics are defined by Honeywell’s I/O Subsystem Design Guide (Doc. No. EP-DS-0002) and product datasheet 51304485. Substituting a generic relay module in its place introduces undefined behavior at the I/O card interface and voids the hardware qualification basis of the control loop.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FTA-T-08 operates on a split-architecture principle: the logic side interfaces with the HPM I/O card via the backplane connector, while the field side presents eight independently switched terminals to the marshalling cabinet wiring. These two domains are galvanically isolated, which prevents field-side transients — common in solenoid coil de-energization events — from propagating into the I/O card’s signal conditioning circuitry.

The solid-state output stage eliminates the mechanical contact wear inherent in relay-based FTAs. In high-cycle applications such as sootblower sequencing or burner management system (BMS) valve actuation, relay contacts in comparable assemblies can degrade within 1–3 million switching cycles under inductive load conditions. The FTA-T-08’s solid-state topology removes this failure mode from the maintenance schedule entirely.

Per-channel electronic current limiting is implemented in hardware, not firmware. When a field device presents a short-circuit or low-impedance fault, the output driver clamps current at the rated threshold and asserts a diagnostic flag to the HPM I/O card without requiring a controller scan cycle to detect the fault. This hardware-level response time is measured in microseconds, not milliseconds — a distinction that matters in ESD-integrated loops where fault propagation speed affects safety function response time.

The removable terminal block design separates field wiring from the active electronics. During module replacement, the terminal block — with all field conductors pre-terminated — can be unplugged from the FTA body and transferred to the replacement unit without disturbing individual wire terminations. This reduces mean time to repair (MTTR) in live marshalling environments and eliminates the re-termination errors that account for a significant fraction of post-maintenance loop faults.

EMC performance is achieved through a combination of PCB-level filtering on each output channel, ground plane continuity across the backplane connector, and shielded housing geometry. The assembly meets the conducted and radiated emission limits of EN 55011 Class A and the immunity requirements of EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/burst), and EN 61000-4-5 (surge) — the three dominant EMC threat vectors in industrial marshalling environments adjacent to variable-frequency drives and high-current motor feeders.

System Integration Benefits

• Zero firmware compatibility risk: As a native TDC 3000 / TPS hardware component, the FTA-T-08 requires no driver updates, firmware patches, or I/O card reconfiguration when installed as a like-for-like replacement. The HPM I/O card recognizes the assembly at power-up without operator intervention.
• Deterministic output response: The solid-state output stage switches field terminals within one HPM scan cycle (typically 100–500 ms depending on controller configuration), with no additional latency introduced by mechanical contact bounce or relay coil energization delay.
• Diagnostic transparency: Per-channel fault status is reported to the HPM I/O card and propagated to the DCS operator station as a discrete alarm point. Maintenance personnel can identify a faulted output channel from the control room without physical inspection of the marshalling cabinet.
• Hot-swap capability in non-SIL loops: The removable terminal block allows module replacement without de-energizing field wiring, reducing planned maintenance windows and eliminating the need for loop isolation permits in non-safety-rated applications.
• Cross-site spares standardization: The FTA-T-08 form factor and backplane pinout are consistent across TDC 3000 hardware revisions. A single spare part number covers multiple plant sites running different HPM generations, reducing the total number of unique spare part numbers in the warehouse.
• SIL 2 loop compatibility: When paired with a Honeywell FSC safety-rated I/O module and assessed per IEC 61511, the FTA-T-08 can be incorporated into a SIL 2 safety instrumented function. Full Honeywell factory test records and certificates of conformance are available to support the PFD calculation and proof test documentation package.
• Reduced marshalling cabinet footprint: The 8-channel density in a single FTA slot reduces the number of discrete relay modules, terminal strips, and inter-wiring runs required in the marshalling cabinet, directly lowering cabinet heat load and wiring labor cost per I/O point.
• Long-term supply chain continuity: With TDC 3000 and TPS installations operating across 20–30 year plant lifecycles, the FTA-T-08 is available through verified surplus channels long after original equipment manufacturer (OEM) production has ended, ensuring continued hardware availability for brownfield maintenance programs.

Quality Assurance & Global Logistics

Every FTA-T-08 unit offered through siemensplc.com is sourced from verified supply channels — authorized distributors and documented surplus from decommissioned Honeywell TDC 3000 / TPS installations. Units do not enter inventory without completing a four-stage incoming inspection protocol:

1. Visual and mechanical inspection: PCB surface, terminal block contacts, backplane connector pins, and housing are examined for physical damage, oxidation, flux residue, or evidence of field abuse. Units with bent connector pins, cracked housings, or corroded terminals are rejected at this stage.
2. Part number and revision verification: The Honeywell part number, hardware revision level, and date code are confirmed against the FTA-T-08 product family matrix. Units with unverifiable provenance or mismatched labels are quarantined pending further investigation.
3. Functional bench test: Each of the eight output channels is exercised under rated resistive and inductive load conditions. Output voltage compliance, switching response time, and current limiting behavior are measured and recorded per channel. Units that fail any channel test are removed from saleable inventory.
4. ESD-safe cleaning and packaging: Accepted units are cleaned with IPA-based solution, packaged in anti-static bags with desiccant and humidity indicator cards, and sealed in rigid cartons with foam cushioning rated for air freight vibration profiles.

Shipments originate from Xiamen, China — a major international logistics hub with direct air freight connections to Amsterdam Schiphol, Frankfurt, Dubai, Singapore Changi, Los Angeles, and Chicago O’Hare. Standard transit times are 3–5 business days to Europe and North America via DHL Express or FedEx International Priority. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. Full export documentation — commercial invoice, packing list, certificate of origin, and ECCN classification — is prepared for every cross-border shipment.
