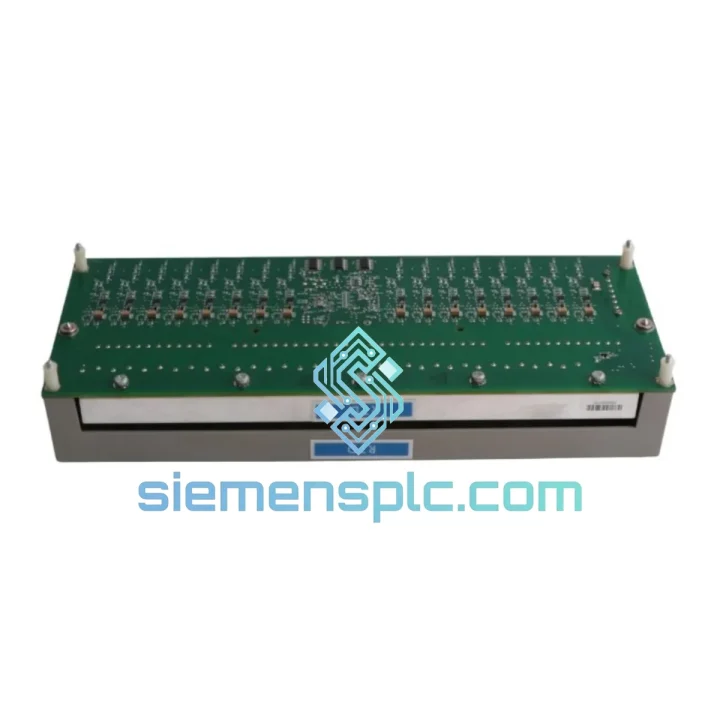

Honeywell MC-TAMR04 51305907-175 Analog Input Multiplexer

MC-TAMR04 51305907-175: Stop the Clock on Your Downtime — Ship Within 24 Hours

Your distillation column is blind. Your boiler’s thermocouple array is returning bad data. The DCS alarm is screaming and your shift supervisor is already on the phone. Every hour this UCN Low Level Analog Input Multiplexer stays offline costs you real money — in lost throughput, emergency labor, and potential safety exposure. We stock the Honeywell MC-TAMR04 (51305907-175) and we ship it fast. Not in weeks. Not after a factory lead time. Within 24 hours of order confirmation, your unit leaves Xiamen.

This is not a catalog listing. This is a field-ready replacement module, inspected, firmware-verified, and packed for export — because we know you don’t have time for surprises when you crack open the box at 2 AM during a forced outage.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most Common Failure Modes on the MC-TAMR04:

1. UCN Node Offline / Card Not Recognized
The most frequent call I get in the field. Before you condemn the card, check the UCN coax terminator resistance at both ends of the segment — it should read 75 Ω. A cracked terminator or a loose BNC connector will take down the entire UCN node and make a perfectly good MC-TAMR04 look dead. If terminators check out, pull the card, inspect the backplane connector pins for bent contacts or corrosion, reseat firmly, and watch the UCN status LED sequence on power-up. A solid green after 30 seconds means the card has joined the UCN network. Flashing amber means it’s in configuration download — wait it out. Solid red means firmware mismatch or hardware fault.

2. All Channels Reading Maximum or Minimum Span
Ninety percent of the time this is an open thermocouple circuit, not a failed module. Before swapping the card, go to the field junction box and verify continuity on each thermocouple pair with a milliohm meter. Extension cable alloy mismatch (e.g., copper wire spliced into a Type K run) will cause a systematic offset that looks like a calibration drift but is actually a CJC error. The MC-TAMR04’s on-board CJC compensates at the module terminals — any dissimilar metal junction upstream introduces an uncompensated EMF. Fix the wiring first.

3. Single Channel Drifting or Noisy
Isolate the channel by disconnecting the field wiring and shorting the input terminals with a precision resistor. If the channel reads correctly with a known source, the problem is upstream — check IS barrier output impedance (should be <300 Ω for the MC-TAMR04 input), shield grounding at one end only, and cable routing away from VFD power cables. If the channel is still noisy with a shorted input, the input amplifier on that channel has degraded — the card needs replacement.

Replacement Procedure — Step by Step:

1. Notify the control room operator: the UCN node will go offline for 2–5 minutes. Confirm all loops on this node are in manual or have redundant measurement.
2. In TPS/GUS, navigate to the UCN node status display and note the current firmware revision shown for the MC-TAMR04 slot.
3. Verify the replacement module’s firmware label matches or is a compatible upgrade per Honeywell’s UCN compatibility matrix. We document this for every unit we ship.
4. Power down is not required for UCN hot-swap — but confirm your site’s MOC procedure. Some facilities require a permit for any card pull in a SIL loop.
5. Pull the failed card straight out — do not rock it side to side, the backplane connector is fragile. Insert the replacement with firm, even pressure until the ejector clips engage.
6. Watch the UCN status LED: flashing green = configuration download in progress (normal, takes 30–90 seconds). Solid green = card online, channels active.
7. In TPS, verify all 4 channel PVs are reading correctly against known process values or a calibrated mV source. Check the UCN diagnostic display for any channel fault flags.
8. Return loops to automatic. Document the swap in your maintenance management system with the replacement module’s serial number and firmware revision.

Configuration Notes: The MC-TAMR04 downloads its channel configuration (thermocouple type, range, engineering units, alarm setpoints) automatically from the TPS database on UCN initialization. No DIP switch or jumper settings are required for channel type selection — all configuration is software-defined in the TPS builder. The only hardware setting is the UCN node address, which is set via the rotary address switch on the card edge. Confirm the replacement card’s address switch matches the failed card before insertion.

Reliability in Harsh Conditions

The MC-TAMR04 was designed for the environments where instrumentation failures hurt the most. Honeywell’s UCN card family is qualified to operate continuously at 60 °C ambient — relevant in non-air-conditioned marshalling rooms in tropical refineries and outdoor substations. The conformal-coated PCB resists condensation and airborne contaminants including H₂S, SO₂, and chlorine at concentrations typical of refinery and chemical plant control rooms per ISA-71.04 G3 severity level.

Vibration immunity is validated to IEC 60068-2-6 — the card survives the mechanical shock of compressor and pump vibration transmitted through steel-frame marshalling cabinets. The differential input architecture provides high common-mode rejection, which is the real-world defense against the 50/60 Hz ground noise that plagues thermocouple circuits near large motors, transformers, and electric arc furnaces. In EAF environments where common-mode interference can reach 100 V or more, the MC-TAMR04’s CMRR keeps mV-level thermocouple signals clean without additional filtering hardware.

Every unit we ship has been powered on, channel-tested with calibrated mV sources, and inspected at board level for corrosion, component damage, and counterfeit indicators. We do not ship untested modules. If a unit fails incoming inspection at your site within 30 days, we replace it — no argument, no RMA delay.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the most connected export hubs in Asia, with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

• Day 0 (Order Confirmed): Module is pulled from stock, re-inspected, packed in anti-static bag with desiccant, placed in foam-lined export carton. Commercial invoice, packing list, and certificate of conformance are prepared.
• Day 1 (Dispatch): Shipment handed to DHL Express or FedEx International Priority. Tracking number sent to you within 2 hours of pickup scan.
• Day 2–4 (Transit): Typical transit to Southeast Asia, Middle East, and Europe. Day 3–5 to North America and South America. Customs clearance documentation is pre-prepared to minimize broker delays.
• Delivery: DHL and FedEx both offer door-to-door delivery with real-time tracking. For urgent shipments, we can arrange Saturday delivery and remote-area surcharge coverage — ask when you inquire.

We have shipped Honeywell UCN modules to refineries in Saudi Arabia, power plants in India, chemical facilities in Germany, and paper mills in Canada. Export compliance is handled — HS code classification, country-of-origin documentation, and dual-use screening are completed for every shipment. You receive a complete export document package with the shipment.

For orders placed before 14:00 CST, same-day dispatch is available. Contact us to confirm cut-off for your destination.
