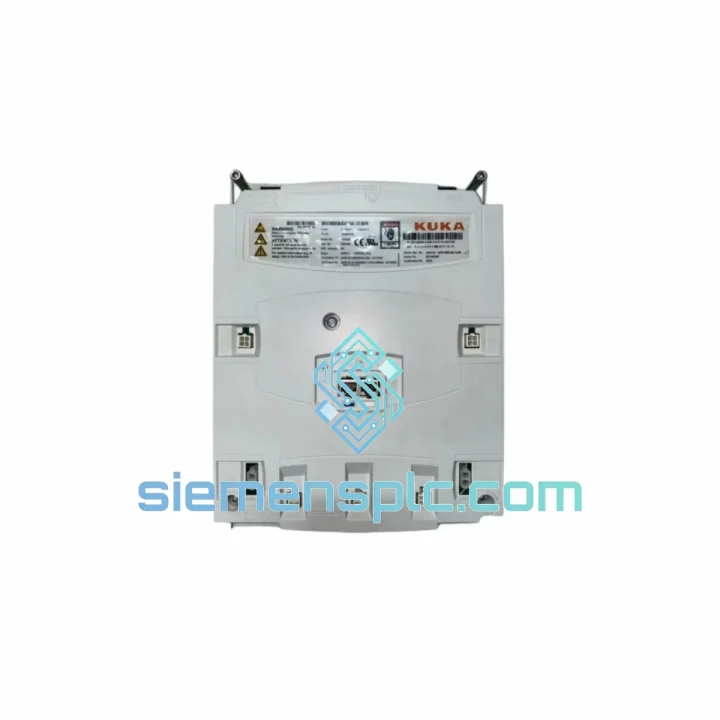

KUKA KSP 600-3X64 KPP 600-20 1X64 KPP 600-20 2X40 UL Servo Drive

KSP 600-3X64 / KPP 600-20 1X64 / KPP 600-20 2X40 UL — Stop the Clock on Your Downtime

Every minute a KR C4 cabinet sits dead on the floor, you’re bleeding production output. A failed servo drive or cabinet power supply in this assembly doesn’t just halt one axis — it takes the entire robot offline. The KUKA KSP 600-3X64 / KPP 600-20 1X64 / KPP 600-20 2X40 UL is a matched-set power architecture that feeds both the servo axes and the cabinet bus simultaneously. When it fails, there is no partial workaround. You need the right part, fast.

We stock this exact assembly in Xiamen and ship globally via DHL Express and FedEx International Priority. From order confirmation to airway bill: typically under 12 hours on business days. That’s the difference between a 48-hour recovery and a week-long production crisis.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

This is where most engineers lose time. The KSP/KPP assembly in the KR C4 cabinet has a few failure modes that are frequently misdiagnosed — and a replacement procedure that has several non-obvious steps.

Common Fault Codes That Point to This Assembly:

• KSS Error 1024 / 1025 — Cabinet Power Supply Undervoltage: The KPP 600-20 is not delivering stable DC bus voltage. Before condemning the KPP, check the 3-phase input at X1 for phase imbalance. A single-phase dropout will trigger this fault without fully killing the cabinet.
• KSS Error 2050 / 2051 — Servo Drive Overcurrent / Short Circuit: Often caused by a failed motor winding on the connected axis, not the KSP itself. Disconnect motor cables one axis at a time and attempt a reset. If the fault clears on disconnection, the motor is the root cause. If the fault persists with all motors disconnected, the KSP 600-3X64 is the culprit.
• KSS Error 1040 — DC Bus Overvoltage: Typically triggered by a failed braking resistor or a KPP that has lost its regenerative discharge path. Check the braking resistor continuity before replacing the KPP.
• Cabinet Powers On But Axes Won’t Enable (No Fault Code): Check the KSP enable signal from the KR C4 safety circuit. A tripped safety relay or an open E-stop loop will prevent the KSP from enabling even if the hardware is fully functional.

Replacement Procedure — Critical Steps:

• 1. Full cabinet power-down and LOTO: The DC bus in a KR C4 cabinet holds charge for up to 5 minutes after mains disconnect. Verify bus voltage at the KSP test points is below 50 V before touching any connectors.
• 2. Document firmware version before removal: Navigate to KUKA smartPAD → About → System Info and photograph the KSS version and drive firmware revision. The replacement KSP/KPP must be compatible with the installed KSS version. Mismatched firmware between KSS 8.2 and 8.6 has caused axis initialization failures post-replacement.
• 3. Connector labeling: The KPP 600-20 connectors X1 (mains), X2 (DC bus out), and X3 (cabinet bus) are physically similar. Mislabeling during removal is a common error. Use colored tape or a marker before disconnecting.
• 4. No DIP switch or address configuration required: Unlike some third-party servo drives, the KSP/KPP assembly in the KR C4 uses automatic address assignment via the cabinet backplane bus. No manual addressing is needed after installation.
• 5. First power-on sequence: After installation, perform a cold start (full power cycle, not a warm restart). The KR C4 will re-enumerate the drive assembly on the internal EtherCAT bus. If the controller does not recognize the new module within 60 seconds, check the backplane connector seating — partial engagement is the most common cause of post-replacement communication faults.
• 6. Firmware update check: If the replacement unit ships with an older firmware revision than the installed KSS requires, KUKA WorkVisual will flag a mismatch on first connection. Have a laptop with WorkVisual and the correct firmware package ready before the replacement window.

Reliability in Harsh Conditions

Automotive body shops, foundry floors, and food-processing lines are not gentle environments. The KSP 600-3X64 / KPP 600-20 assembly is engineered to operate continuously in conditions that would degrade consumer-grade electronics within weeks.

The KSP 600-3X64 is rated for continuous operation at ambient temperatures up to 45°C inside the cabinet, with peak thermal tolerance during short-cycle duty exceeding 55°C. The internal thermal management relies on forced-air cooling through the cabinet’s integrated fan assembly — a blocked or failed cabinet fan is one of the leading causes of premature KSP failure in high-cycle applications. If you’re seeing repeated KSP failures in a hot environment, check the cabinet fan before assuming the drive is defective.

Vibration resistance is validated to IEC 60068-2-6 standards, covering sinusoidal vibration profiles typical of press-shop and stamping-line installations where floor-transmitted vibration is constant. The backplane connector system uses a positive-locking mechanism that maintains contact integrity under sustained vibration — a design advantage over earlier KR C2 drive architectures that used friction-fit connectors prone to micro-arcing under vibration.

Humidity tolerance is rated to 95% relative humidity, non-condensing. In coastal or high-humidity environments, condensation inside the cabinet during thermal cycling is a real risk. If your facility experiences significant temperature swings between shifts, consider cabinet heater strips to prevent condensation from forming on the KPP bus capacitors — capacitor degradation from moisture ingress is a slow failure mode that presents as intermittent DC bus undervoltage faults before catastrophic failure.

All units we ship are stored in climate-controlled warehousing in Xiamen and packed in anti-static, moisture-barrier bags with desiccant inserts. Long-term storage of power electronics without humidity control accelerates electrolytic capacitor aging — we do not stock units in uncontrolled environments.

Global Express Logistics

Our logistics operation is built around one priority: getting critical industrial parts to the plant floor before the production loss compounds. We ship from Xiamen, China — a major international cargo hub with direct DHL and FedEx gateway connections.

• DHL Express Worldwide: Typical transit time 2–4 business days to Europe, North America, Southeast Asia, and the Middle East. Shipments are booked on the next available flight departure after order confirmation and payment — we do not batch orders to save on freight costs.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has a transit-time advantage. We compare rates and transit times at booking and select the faster option unless the customer specifies a preference.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. HS code 8537.10 (control panels for voltage ≤1000V) is applied by default — if your customs authority requires a different classification, notify us at order placement.
• Tracking: Airway bill number is sent via email within 2 hours of carrier pickup. Real-time tracking links are provided for both DHL and FedEx shipments.
• Customs Clearance: We declare accurate commercial values on all export documents. We do not undervalue shipments. For customers in the EU, we can provide EORI-compatible documentation. For US imports, HTS binding rulings are available on request for repeat buyers.
• Emergency Same-Day Dispatch: For orders confirmed before 14:00 CST on business days, same-day dispatch is available. Contact us via WhatsApp to confirm stock and initiate priority processing.
