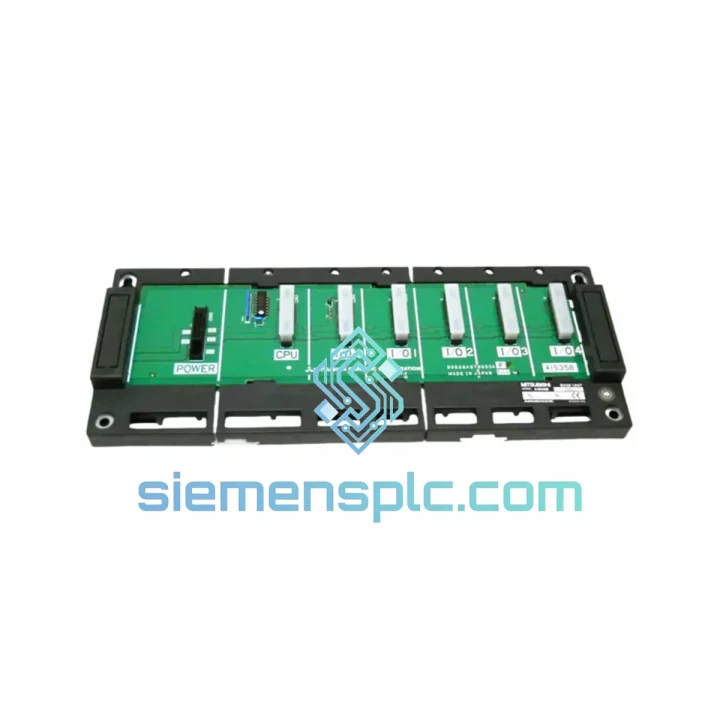

Mitsubishi A1S35B PLC Base Unit – MELSEC-AnS Series

Mitsubishi A1S35B 5-Slot Base Unit: Backplane Architecture and Control Loop Role in MELSEC-AnS Systems

The Mitsubishi A1S35B is a 5-slot base unit (rack) engineered for the MELSEC-AnS compact PLC platform. Within a programmable controller system, the base unit is not a passive mechanical carrier — it is the electrical backbone that defines the data transfer topology, power distribution integrity, and module addressing scheme for every card installed in the rack. The A1S35B provides five module slots plus one dedicated CPU slot, supporting the full range of AnS-series CPU modules, I/O modules, intelligent function modules, and communication adapters. Its backplane bus operates as a parallel data highway, coordinating synchronous data exchange between the CPU and peripheral modules at each scan cycle.

In a closed-loop control architecture, the base unit determines the physical latency floor of the I/O refresh cycle. The A1S35B’s internal bus structure supports the AnS-series parallel bus protocol, which transfers 16-bit data words across the backplane with deterministic timing. This is critical in applications where the CPU must read analog input values, execute PID calculations, and write updated output setpoints within a single scan — typically in the 1–10 ms range for AnS-series CPUs. Any impedance mismatch, connector degradation, or slot contamination on the base unit directly translates into bus errors, watchdog faults, or erratic module behavior. The A1S35B’s gold-plated edge connectors and reinforced slot guides are designed to maintain contact resistance below 30 mΩ across the rated service life.

The unit accommodates DIN rail mounting and panel surface mounting, with a compact footprint suited to space-constrained control cabinets. Its power bus distributes 5 VDC logic power and 24 VDC field power from the installed power supply module (A1S61P / A1S62P / A1S63P series) to all installed modules, with individual slot fusing to isolate fault conditions without shutting down the entire rack.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A1S35B’s backplane is a passive bus structure, but its electrical design incorporates several features that directly affect system reliability in industrial environments.

Bus Termination and Signal Integrity: The AnS-series backplane bus uses controlled-impedance PCB traces with matched termination resistors at both ends of the bus. This prevents signal reflections that would otherwise cause data corruption at high scan rates. The trace geometry is designed for a characteristic impedance of approximately 50 Ω, consistent with the bus driver output impedance of the AnS-series CPU modules.

EMC Design and Chassis Ground Architecture: The A1S35B chassis is constructed from zinc-coated steel with multiple chassis ground bonding points. Each module slot’s shield plane is directly bonded to the chassis ground rail, providing a low-impedance return path for high-frequency noise currents induced by adjacent variable-frequency drives, contactors, or switching power supplies. This multi-point grounding topology suppresses common-mode noise on the bus lines, reducing susceptibility to conducted and radiated EMI in accordance with IEC 61000-4-4 (EFT) and IEC 61000-4-5 (surge) test levels applicable to the MELSEC-AnS platform.

Slot Addressing and Module Recognition: Each slot position on the A1S35B is assigned a fixed hardware address via physical slot select lines on the backplane. The CPU reads these address lines during the initial power-on sequence to build the module map. If a module is absent or returns an unexpected ID code, the CPU logs a slot error in the special relay/register area (SM/SD) and can be configured to either halt or continue operation depending on the parameter settings. This deterministic slot-addressing scheme eliminates the ambiguity of software-assigned addresses and simplifies fault isolation during maintenance.

Power Bus Isolation: The 5 VDC logic bus and 24 VDC field bus are routed on separate copper planes within the backplane PCB, with no shared return path. This isolation prevents load transients on the 24 VDC field bus (caused by output module switching) from coupling into the 5 VDC logic bus and inducing CPU resets or memory errors. Individual slot fuses on the 5 VDC bus provide overcurrent protection per slot, so a shorted module does not collapse the bus voltage for adjacent modules.

Connector Durability: The edge connectors use gold-plated contacts rated for a minimum of 50 insertion/removal cycles without measurable increase in contact resistance. In maintenance-intensive environments where modules are frequently swapped, this rating ensures reliable electrical contact throughout the service life of the base unit.

System Integration Benefits

• Deterministic I/O Refresh Timing: The fixed parallel bus architecture of the A1S35B ensures that I/O refresh latency is bounded and predictable, enabling the CPU to meet hard real-time deadlines in motion control and process regulation loops without jitter introduced by arbitration delays.
• Modular Slot Flexibility: Five expansion slots allow engineers to configure the rack with any combination of digital I/O, analog I/O, high-speed counter, positioning, and communication modules from the full MELSEC-AnS catalog, without requiring a larger chassis or additional base unit extension cables.
• Transparent Fault Diagnostics: Slot-level error detection via the CPU’s SM/SD special register area provides module-specific fault codes readable by GX Developer or GX Works2, reducing mean time to repair (MTTR) by pinpointing the defective slot without requiring physical inspection of each module.
• Compact Panel Footprint: The AnS-series form factor is significantly smaller than the A-series large-format racks, allowing the A1S35B to be installed in control panels where DIN rail space is limited, without sacrificing the processing capability of the AnS CPU modules.
• Backward Compatibility with AnS Ecosystem: The A1S35B is electrically and mechanically compatible with the complete MELSEC-AnS module library, including legacy I/O modules, communication adapters (CC-Link, MELSECNET/Mini-S3), and analog modules, protecting existing investments in AnS-series hardware.
• Simplified Grounding Compliance: The chassis ground bonding architecture of the A1S35B is designed to comply with IEC 60204-1 (Safety of Machinery – Electrical Equipment) grounding requirements, simplifying CE marking documentation for machine builders integrating the rack into new equipment.
• Reduced Wiring Complexity: By consolidating CPU, I/O, and communication modules on a single backplane, the A1S35B eliminates the inter-module wiring harnesses required in distributed I/O architectures, reducing panel assembly time and potential wiring fault points.
• Long-term Spare Parts Availability: The A1S35B remains available through specialist industrial automation suppliers, supporting legacy system maintenance programs where replacing the entire PLC platform is not economically justified. Stocking a spare base unit eliminates the risk of extended downtime caused by backplane failure in a production-critical system.

Quality Assurance & Global Logistics

Every Mitsubishi A1S35B unit supplied by siemensplc.com is sourced as genuine Mitsubishi Electric hardware, manufactured in Japan to Mitsubishi’s ISO 9001-certified production standards. Prior to dispatch, each unit undergoes a physical inspection covering label authenticity, connector condition, PCB marking verification, and housing integrity. Units showing evidence of counterfeit labeling, unauthorized repair, or physical damage are rejected and not offered for sale.

Shipments originate from our warehouse in Xiamen, China, a major logistics hub with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard transit times are 3–7 business days to most destinations in North America, Europe, Southeast Asia, the Middle East, and Australia. For urgent requirements, next-flight-out options are available upon request. All shipments include a commercial invoice, packing list, and airway bill. Export classification: HS Code 8537.10. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.
