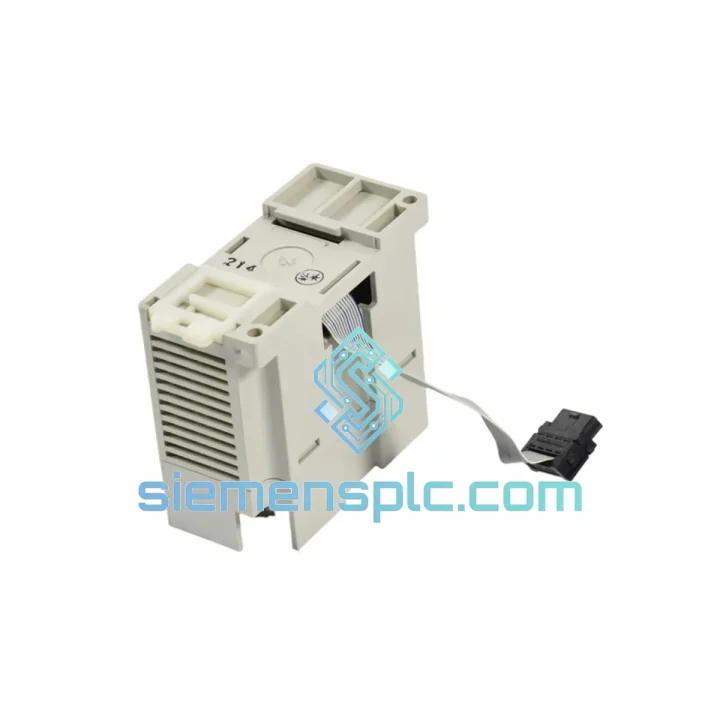

Mitsubishi FX0N-8EYT PLC Output Module

FX0N-8EYT Down? Every Minute of Downtime Is Money Bleeding Out — We Ship Today

Your FX0N-8EYT transistor output module has failed. The line is stopped. Maintenance is waiting. Management is calling. You don’t need a sales pitch — you need the part in your hands, fast. We stock the Mitsubishi FX0N-8EYT in Xiamen and ship globally via DHL/FedEx express. Most orders clear customs and land on your dock within 3–5 business days. No waiting weeks for factory lead times. No compromises on authenticity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 15 years of field work across packaging lines, injection molding cells, and conveyor systems, here are the failure patterns I see most often with the FX0N-8EYT — and what to check before you even pull the module:

1. Outputs stuck ON or not switching
The transistor output stage is the first casualty of inductive load spikes. If you’re driving solenoid valves or relay coils without flyback diodes across the load, the output transistors will fail over time — sometimes silently. Check: are the output LEDs on the module lit but the field device not responding? That’s a blown transistor, not a wiring fault. Replace the module. Add suppression diodes to your load wiring before reinstalling.

2. Module not recognized by base unit after swap
The FX0N series uses automatic I/O address assignment — there are no DIP switches or rotary address selectors on the FX0N-8EYT. The base unit auto-detects expansion modules at power-up via the right-side bus connector. If the new module isn’t recognized: (a) power cycle the entire system — do not hot-swap; (b) inspect the bus connector pins on both the module and base unit for bent or corroded contacts; (c) verify you’re using an FX0N-8EYT and not an FX2N-8EYT — the bus protocols are incompatible.

3. Output address mapping after replacement
FX0N assigns output addresses sequentially from the base unit outward. A single FX0N-8EYT connected to an FX0N-24MR (which has Y0–Y13 onboard) will occupy Y14–Y21. If you’re replacing a failed module in a multi-expansion configuration, confirm the address block in your GX Developer or GX Works2 program matches the physical slot position. A mismatched address will cause the new module’s outputs to drive the wrong field devices — a dangerous condition on live machinery.

4. Firmware / software compatibility
The FX0N-8EYT has no onboard firmware — it is a passive I/O expansion with no CPU. No firmware update is required. However, if you’re migrating from an older FX0N base unit to a newer revision, verify the base unit’s hardware version supports the expansion bus current draw of the full module stack. Overloaded bus power rails cause intermittent module dropouts that are notoriously difficult to diagnose.

5. Common fault codes to cross-reference
The FX0N base unit will flag a hardware error (LED indicator pattern: RUN off, ERROR on) if the expansion bus detects a module fault. Use GX Developer’s diagnostic function to read the special register D8060–D8069 range — these registers log I/O hardware errors. A value in D8061 pointing to the output expansion slot confirms module failure rather than a program or wiring issue.

Replacement checklist before powering up:

• Power down the entire FX0N system — never hot-swap expansion modules
• Inspect bus connector on base unit for damage before inserting new module
• Verify load wiring polarity — NPN sink outputs require load connected between output terminal and +24V, with 0V common
• Check total expansion module count — FX0N supports max 2 expansion modules
• Power up and confirm RUN LED on base unit; check output address mapping in program
• Test each output point individually before returning line to production

Reliability in Harsh Conditions

The FX0N-8EYT was engineered for the realities of the factory floor — not a climate-controlled server room. Mitsubishi Electric’s MELSEC FX0N platform has accumulated decades of field deployment across environments that would destroy lesser hardware.

Vibration resistance: The module’s DIN-rail snap-mount and direct bus connector eliminate the vibration-induced contact failures common in ribbon-cable expansion systems. Units installed on press machines and compressors — environments with continuous 10–57 Hz vibration at 0.075 mm amplitude — have demonstrated multi-year MTBF without connector fatigue.

Thermal performance: Rated for continuous operation at 55 °C ambient. In practice, the transistor output stage generates minimal heat compared to relay-output equivalents, keeping the module’s internal temperature well below the derating threshold even in poorly ventilated enclosures. Storage down to -25 °C means the module survives cold-start conditions in outdoor or unheated facilities.

Humidity and contamination: The conformal coating on the PCB provides baseline protection against condensation and airborne particulates. In high-humidity environments (foundries, food processing, coastal installations), the module’s 5–95% RH non-condensing rating covers the vast majority of industrial use cases. For environments with active condensation or chemical splash, install the module in an IP54 or higher rated enclosure.

EMC immunity: CE-marked to the EMC Directive, the FX0N-8EYT meets EN 61000-4 series immunity requirements for conducted and radiated interference. In high-noise environments — VFD-heavy panels, large motor starters, welding equipment nearby — ensure proper panel grounding and use shielded cable on long output runs to maintain signal integrity.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected export hubs in Asia. When your production line is down, the last thing you need is a parts supplier who ships by sea freight on a weekly consolidation. Our process is built around your emergency timeline:

Order cutoff and same-day dispatch: Orders confirmed before 15:00 CST are packed and handed to DHL or FedEx the same business day. We maintain pre-printed commercial invoices and packing declarations for FX0N-series modules to eliminate customs documentation delays.

Transit times by region (DHL/FedEx Express):

• Southeast Asia (Vietnam, Thailand, Indonesia, Malaysia): 2–3 business days
• South Asia (India, Pakistan, Bangladesh): 3–4 business days
• Middle East (UAE, Saudi Arabia, Turkey): 3–5 business days
• Europe (Germany, Italy, Poland, Netherlands): 4–6 business days
• Americas (USA, Mexico, Brazil): 5–7 business days
• Australia / New Zealand: 3–5 business days

Customs clearance: All shipments include a properly completed commercial invoice with HS code 8538.90 (parts for switchgear/control apparatus), declared value, and country of origin documentation. For import-sensitive markets, we can provide a Certificate of Origin on request. We have zero tolerance for misdeclared shipments — every package is compliant.

Packaging: The FX0N-8EYT ships in anti-static bag inside a rigid foam-lined carton. The outer carton is double-walled corrugated. We’ve shipped to construction sites in the Middle East, offshore platform supply vessels, and remote mining operations — the module arrives in the same condition it left our warehouse.

Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp. If a shipment is delayed at customs, we proactively contact the consignee with documentation support.
