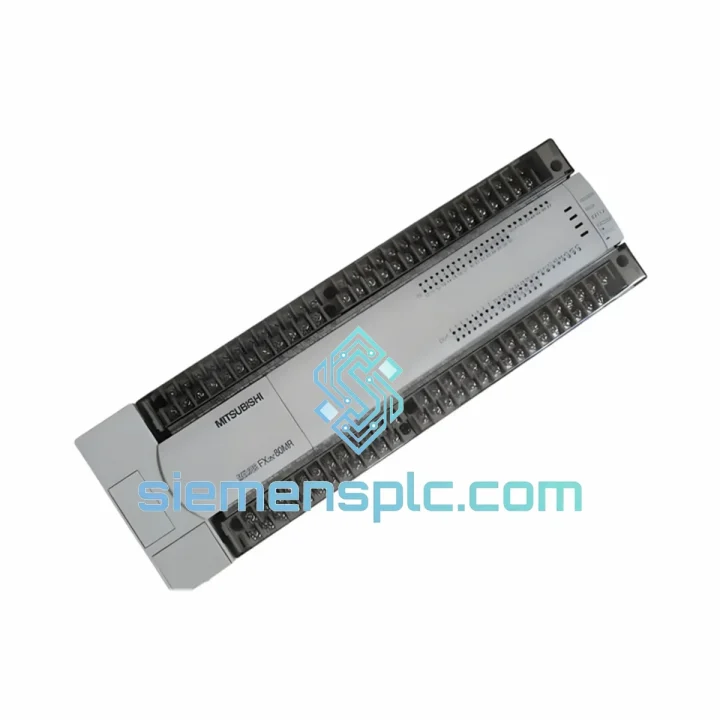

Mitsubishi FX2N-80MR-001 Programmable Logic Controller

FX2N-80MR-001 Line Down? Cut Your Recovery Time to Hours — Not Weeks

You’re not browsing a catalog. You’re here because a machine stopped and every hour it stays down has a dollar figure attached to it. The Mitsubishi FX2N-80MR-001 is a workhorse that rarely fails — but when it does, the standard supply chain will quote you 8 to 14 weeks. That timeline is not acceptable on a live production floor. We hold physical stock of the FX2N-80MR-001 in our Xiamen warehouse, inspected, tested, and ready to move the same day you confirm. DHL Express or FedEx International Priority — your call. We’ve put this exact module on plant floors in Germany, Thailand, Saudi Arabia, and Brazil inside 72 hours from order confirmation. That’s the only metric that matters when your production manager is standing behind you.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most FX2N failures fall into three categories: CPU hardware death, program corruption, and output relay burnout. Before you condemn the unit and order a replacement, spend five minutes confirming which one you’re dealing with — it changes your recovery path entirely.

Read the LEDs first. POWER solid, RUN off, ERROR flashing = watchdog trip or corrupted program. POWER solid, RUN solid, outputs not responding = relay contact failure on a specific output group, not a CPU fault. POWER off = check the AC supply fuse on the terminal block before touching anything else. The FX2N has a replaceable fuse — it’s the cheapest fix on the board.

Pull error codes before pulling the unit. If the CPU still responds to GX Developer via SC-09 or USB-SC09-FX, read Special Data Registers D8060 through D8069. D8060 = 0 means no hardware fault. D8061 non-zero = program syntax error — re-download the ladder, don’t replace the hardware. D8064 non-zero = parameter file corruption — restore parameters from backup. Only D8060 values in the 6100–6199 range confirm a CPU hardware fault requiring unit replacement.

Back up the program before power-down. A partially responsive CPU may still allow a full program upload via GX Developer → PLC → Read from PLC. Save the .gxw file immediately. If the CPU is dead, check the option cassette slot — an FX-EEPROM-8 cassette retains the program without power indefinitely. An FX-RAM-8 cassette retains only while the backup battery (FX2N-BAT) holds charge, typically 5 years from installation.

Replacement sequence — do it in order. (1) Remove 24 V DC field power to all output loads. (2) Remove AC mains to the PLC. (3) Wait 30 seconds — the internal supercapacitor needs to discharge. (4) Disconnect the expansion bus connector before removing the base unit from the DIN rail. (5) Install the replacement FX2N-80MR-001. (6) Transfer the memory cassette from the failed unit if it was fitted. (7) Reconnect expansion modules — they auto-address sequentially, no DIP switches, no configuration. (8) Restore AC mains. (9) Download program if no cassette was fitted. (10) Restore field power and verify I/O.

Output wiring trap. The MR relay variant groups outputs in sets of 8 sharing a common (COM) terminal. COM0 covers Y0–Y7, COM1 covers Y8–Y15, and so on. Each COM can carry a different voltage — AC on one group, DC on another — but mixing voltages within the same COM group destroys contacts. Verify the COM wiring diagram on the inside of the terminal cover before energizing. This is the most common field mistake on FX2N relay variants.

I/O addressing. The FX2N-80MR-001 base unit uses fixed octal addressing: inputs X000–X047, outputs Y000–Y047. There are no DIP switches or self-addressing jumpers on the base unit. Extension modules auto-address from the next available octal address outward. If your program references X050 or higher, those points live on an extension module — confirm the extension module is seated and the bus connector is fully engaged before assuming an I/O fault.

Reliability in Harsh Conditions

The FX2N-80MR-001 was not designed for a climate-controlled server room. It was designed for the kind of environment where the floor vibrates, the ambient temperature climbs past 40 °C in summer, and the humidity makes your multimeter fog up. The conformal coating on the main PCB resists airborne oils, cutting fluid mist, and the corrosive atmosphere common in chemical processing and coastal facilities. This is not a marketing claim — it’s why you still find FX2N units running 24/7 in automotive stamping plants that were commissioned in the early 2000s and never touched since.

The relay output stage is rated for 200,000 switching operations per contact under resistive load at rated current. On a packaging line cycling at one operation per second, that’s 55+ hours of continuous switching per contact before you reach the halfway point of rated mechanical life. In practice, inductive loads (solenoids, motor starters) reduce contact life — always fit a snubber or flyback diode across inductive loads on relay outputs. This single step extends contact life by a factor of three to five in high-cycle applications.

Vibration tolerance to IEC 61131-2 — 10 to 57 Hz at 0.075 mm displacement, 57 to 150 Hz at 9.8 m/s² — means the unit can be mounted directly on a machine frame subject to conveyor and motor vibration without isolation mounts, provided the DIN rail is properly grounded and the unit is secured with end stops. Units that fail prematurely from vibration almost always show loose DIN rail clips, not PCB fatigue.

In high-humidity environments, the 85% RH non-condensing rating holds as long as the enclosure prevents condensation cycles. The failure mode in humid climates is not PCB corrosion — it’s oxidation on the RS-422 connector pins and the expansion bus edge connector. Clean these with isopropyl alcohol and a fine brush during annual preventive maintenance and you will not see humidity-related failures.

Global Express Logistics

Our dispatch point is Xiamen, Fujian — a primary export gateway with direct DHL Express, FedEx International Priority, and UPS Worldwide Express access. The process from your order confirmation to the module leaving our warehouse is measured in hours, not days.

• Same-day cutoff: 15:00 CST. Payment confirmed before 15:00 CST on business days = same-afternoon dispatch. After cutoff = next morning, first flight out.
• Packaging standard: Double-wall corrugated carton, 50 mm closed-cell foam on all six faces, anti-static bag on the unit. Commercial invoice and packing list inside the carton and in an external document pouch. No exceptions.
• Export documentation: Commercial invoice with HS Code 8537.10, country of origin (Japan), packing list. Certificate of Conformance or factory test report available on request — specify at order time.
• Estimated transit (business days): Southeast Asia 2–3 | Europe 3–5 | North America 3–5 | Middle East 4–6 | South America 5–7 | Africa 5–8.
• Tracking: DHL or FedEx tracking number issued by email within 2 hours of dispatch. We monitor the shipment and notify you proactively of any customs holds or delays.
• Import duties: Declared at accurate commercial value. Buyer is responsible for destination country import duties and VAT. We can advise on typical rates for your country before you order.

Emergency orders have cleared customs and reached plant floors in under 72 hours. When your line is down and your production manager needs an ETA every 30 minutes, that response time is the only specification that matters.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
Response within 30 minutes, 09:00–18:00 CST, Monday–Saturday.
