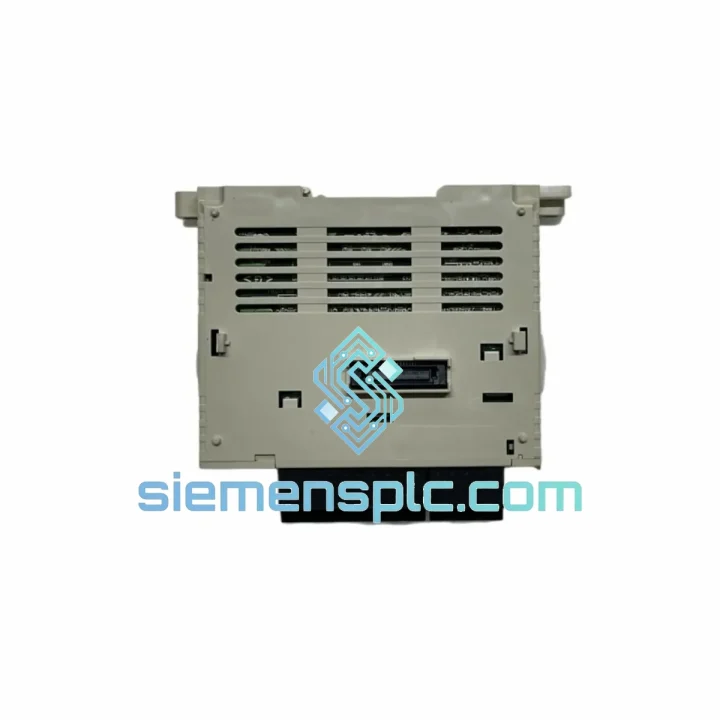

Mitsubishi FX3U-485ADP-MB Communication Module

FX3U-485ADP-MB Down? Every Minute of Downtime Costs You Money — We Ship Same Day

Your FX3U-485ADP-MB has failed mid-shift. The RS-485 bus is dead, Modbus RTU slaves are offline, and your production line is standing still. You’ve already rebooted the PLC twice. The module isn’t responding. You need a replacement — not tomorrow, not next week. Now.

At siemensplc.com, we stock the Mitsubishi FX3U-485ADP-MB as a live, shelf-ready unit. No lead time. No backorder excuses. We pull it, test it, pack it, and hand it to DHL or FedEx the same business day you order. From our Xiamen warehouse to your plant floor — that’s the only metric that matters when you’re down.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Failure Symptoms & Root Causes

1. SD/RD LEDs completely dark, no communication at any baud rate
Classic internal transceiver failure — typically caused by a wiring fault that drove voltage beyond the RS-485 ±7 V common-mode limit. Check the terminal block for shorted SDA/SDB lines or a missing termination resistor that caused destructive reflections. The module is gone; replacement is the only path forward.

2. Intermittent Modbus timeouts — error code 7100 or 7101 in GX Works2
Measure bus voltage between SDA and SDB at idle. It should sit between +1.5 V and +5 V. If floating near 0 V, termination resistors are missing or the master isn’t asserting bias. Add 560 Ω pull-up/pull-down resistors at the master end. If voltage is correct but timeouts persist, check D8120 — a firmware update or accidental parameter write can silently reset it to a non-Modbus format.

3. Module recognized by PLC but Modbus slaves not responding
Verify D8400 (communication protocol selection). For Modbus RTU master mode, D8400 must be H0086. A common mistake after a CPU swap is restoring a backup configured for MC Protocol — D8400 ends up at H0000 and the module ignores all Modbus frames without any error indication.

4. “Special Adapter Error” on startup after module swap
The FX3U-485ADP-MB self-identifies to the PLC — there is no DIP switch or address selector. If this error appears with a new module, the cause is almost always a bent pin on the adapter connector or debris in the slot. Power down completely, inspect under magnification, and reseat firmly.

Replacement Procedure

1. Document first. Photograph terminal wiring and record D8120, D8400, D8401, D8402 from the failed PLC if it still powers up.
2. Full power-off. No hot-swapping — the internal adapter bus is not rated for live insertion.
3. Label terminals before disconnecting. Reversing SDA/SDB is the most common commissioning error after a swap.
4. Remove failed module. Slide straight out from the left side. Inspect base unit connector pins for damage.
5. Install replacement. Seat firmly until latch clicks. Reconnect terminals in documented order.
6. Restore communication parameters. Write D8120 and D8400–D8402 back via GX Works2 device monitor before running the program.
7. Verify bus termination. 110 Ω at both physical ends of the RS-485 cable run — mandatory above 9,600 bps.
8. Power on and monitor. SD blinking + RD responding = bus live. SD blinking + RD dark = slave address or baud rate mismatch.

Reliability in Harsh Conditions

The FX3U-485ADP-MB is tested to IEC 60068-2-6 vibration profiles — 10–57 Hz at 0.075 mm amplitude, 57–150 Hz at 9.8 m/s². That covers direct machine-frame mounting next to servo motors and conveyor drives. The PCB carries conformal coating that resists condensation, cutting fluid mist, and the fine metallic particulates that kill unprotected boards in machining environments within months.

Thermal performance is where the gap between genuine Mitsubishi and grey-market alternatives becomes measurable. The FX3U-485ADP-MB operates at full specification to 55 °C ambient — not derated, not with reduced baud rate, not with a fan blowing on it. The RS-485 transceiver maintains its ±7 V common-mode rejection across the entire temperature range, which is critical when your cable runs share conduit with 400 V motor leads. Modules that use lower-grade transceivers start dropping frames above 40 °C ambient — you won’t see an error code, just intermittent timeouts that get blamed on the network.

Humidity tolerance at 95% RH non-condensing covers coastal facilities, unheated warehouses in tropical climates, and food processing plants where washdown creates temporary high-humidity events. Every unit in our Xiamen stock is stored in climate-controlled conditions with humidity indicator cards in each anti-static bag. What arrives at your site has not been thermally or humidity-stressed before installation.

Global Express Logistics

Same-Day Cut-Off: Orders confirmed before 15:00 CST are dispatched the same business day. No queue, no exceptions.

Carrier: DHL Express Worldwide or FedEx International Priority, selected based on destination and current transit performance. Typical transit times: Southeast Asia 2–3 days, Europe and Middle East 3–5 days, North America 4–6 days.

Documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing. ECCN classification or end-user statements available on request — contact us before ordering to avoid dispatch delays.

Tracking: Waybill number sent to your email within 2 hours of carrier pickup. Customs holds are managed by our logistics team directly with the broker — you are not left chasing it.

Packaging: Original Mitsubishi carton inside double-wall outer box with foam inserts. Anti-static bag. Drop-test certified. The module arrives in the same condition it left our shelf.

Emergency Options: Charter air freight and hand-carry courier to major hubs available for critical situations. WhatsApp us for a quote — response under 30 minutes during business hours.
