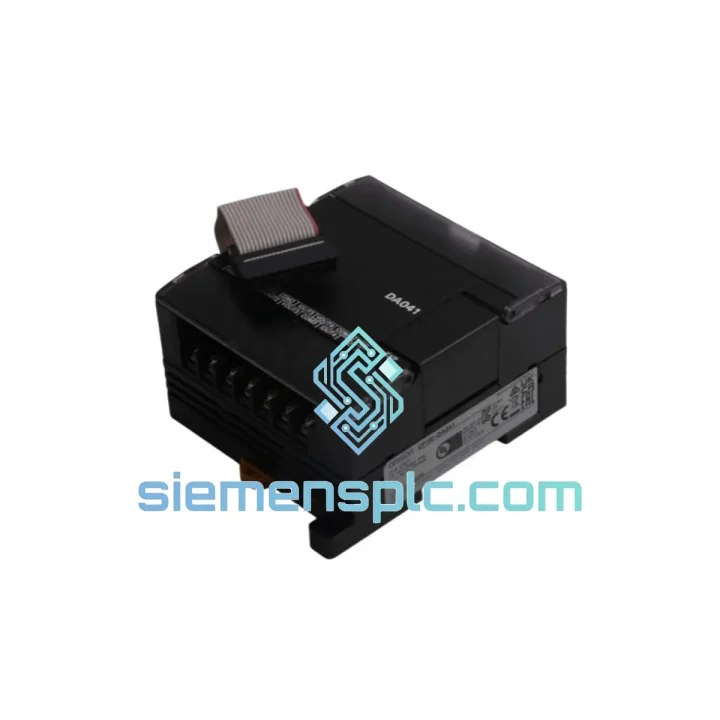

OMRON CP1W-DA041 Analog Output Module

CP1W-DA041 In Stock Now — Every Hour of Downtime Has a Price Tag

Your CP1L or CP1H just lost analog output. The VFD is coasting blind, the proportional valve is stuck, and your process engineer is already on the phone. You don’t need a lecture on specifications — you need a replacement CP1W-DA041 on a plane today. We stock it. We ship it. Same-day dispatch from Xiamen via DHL or FedEx Express, door-to-door in 2–5 business days to most industrial regions worldwide.

The CP1W-DA041 is OMRON’s 4-channel analog output expansion unit for the CP1W modular bus — the workhorse behind closed-loop control in chemical dosing lines, food processing cells, HVAC systems, and packaging machinery across six continents. When this module fails, the entire analog output tier of your control architecture goes dark. There is no workaround. You need the exact part, verified original, tested before it ships.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Step 1 — Confirm the fault is the DA041, not the bus. Before pulling the module, check the CP1L/CP1H expansion bus error flags in CX-Programmer (PLC Setup → Expansion Unit Error). A bus communication fault (ERR LED solid on the expansion unit) often points to a failed module, but can also indicate a loose side-bus connector or a corrupted I/O table. Power-cycle the PLC with the suspect DA041 disconnected. If the bus error clears, the module is confirmed faulty.

Step 2 — Note the slot position before removal. The CP1W bus assigns I/O words sequentially from left to right starting at the first expansion slot. The DA041 occupies 2 output words (CIO 102–103 for slot 1, for example). If you’re replacing a module in slot 2 or 3, your program references those specific word addresses. Swapping the module into a different slot without updating the program will cause incorrect analog output mapping — a silent fault that can drive a valve or VFD to an unintended setpoint.

Step 3 — Check the output mode selector switch. The CP1W-DA041 has a physical DIP switch on the module body that sets each channel’s output type: voltage or current. Before installing the replacement, match the switch positions to the original module’s configuration. If you don’t have a photo of the original, check the PLC program’s analog output scaling parameters — they will tell you whether each channel was configured for 0–10 V, ±10 V, or 4–20 mA.

Step 4 — Re-register the I/O table. After physical installation, go online with CX-Programmer and execute I/O Table → Create. The CP1L/CP1H will re-scan the expansion bus and register the new module. If you skip this step, the CPU will flag an I/O verification error and the analog outputs will not activate.

Step 5 — Verify analog output scaling in the program. The DA041 uses a linear conversion between the PLC’s internal data word value and the physical output signal. Confirm that the scaling parameters in your program (typically in a SCL or MOV instruction feeding the output word) match the field device’s input range. A misconfigured scale factor will produce a correct-looking output word value but a wrong physical signal — the kind of fault that takes hours to trace without an oscilloscope.

Common fault codes to watch:

• ERR LED on DA041 (solid): Module hardware fault or bus communication failure. Replace the module.
• ERR LED on DA041 (flashing): Output wire break detected on a current output channel (4–20 mA open circuit). Check field wiring before condemning the module.
• CX-Programmer I/O Verification Error after swap: I/O table not re-created after module replacement. Run Create I/O Table online.
• Analog output stuck at 0 V / 4 mA after replacement: DIP switch output mode mismatch, or program output word not being written (check PLC RUN mode and program scan).

Reliability in Harsh Conditions

The CP1W-DA041 is not a lab instrument — it was designed for the factory floor. OMRON’s CP1W series is rated for continuous operation at 55°C ambient without derating, which covers the majority of enclosed control panel environments even in tropical climates or near heat-generating drives. The module’s internal analog circuitry is shielded against the conducted and radiated EMI that VFDs, contactors, and servo amplifiers inject into the panel environment — the same noise sources that corrupt analog signals on lesser hardware.

Vibration resistance meets IEC 60068-2-6 standards: 10–57 Hz at 0.075 mm amplitude, 57–150 Hz at 9.8 m/s². In practice, this means the module survives installation on machine frames subject to spindle vibration, press impact, and conveyor-induced resonance without connector fatigue or PCB cracking. The side-bus connector uses a positive-locking mechanism that maintains contact integrity even under sustained vibration — a detail that matters when a loose bus connection is indistinguishable from a failed module without a scope.

Humidity tolerance of 10–90% RH non-condensing covers coastal industrial facilities, food processing environments with steam washdown in adjacent areas, and outdoor-rated enclosures in humid climates. The conformal coating on the PCB provides an additional barrier against moisture ingress that can cause leakage currents and analog output drift over time.

Every unit we ship has been stored in a climate-controlled warehouse in Xiamen, in sealed ESD-safe packaging with desiccant. We do not sell modules that have been sitting in uncontrolled storage — humidity cycling degrades electrolytic capacitors and causes subtle analog accuracy drift that won’t show up on a bench test but will cause process deviation over months of operation.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx Express gateway access. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. The module leaves Xiamen that evening on an express air freight flight.
• DHL Express / FedEx International Priority: Transit time 2–4 business days to Europe, North America, Southeast Asia, and the Middle East. 3–5 days to South America and Africa.
• Full tracking provided: AWB number sent within 2 hours of dispatch. You can track the shipment in real time from Xiamen to your door.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for customs clearance. HS code 8537.10 applied for smooth import processing in most jurisdictions.
• Customs support: For shipments to regions with complex import requirements (India, Brazil, Russia), our logistics team prepares additional documentation on request to prevent customs holds.

We have shipped CP1W modules to manufacturing facilities in Germany, the United States, Malaysia, Saudi Arabia, Mexico, and Australia — all cleared customs without delay. When your line is down, the last thing you need is a shipment stuck at customs because of incomplete paperwork. We handle it.
