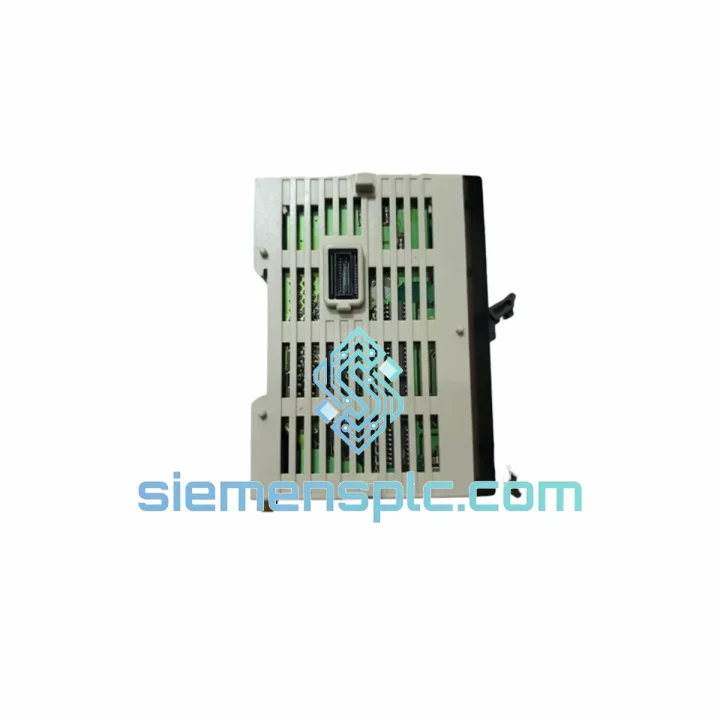

OMRON CPM2C-32EDTM I/O Expansion Module – CPM2C Series

CPM2C-32EDTM: Bus-Powered 32-Point Discrete I/O Expansion for OMRON CPM2C Compact PLC Systems

The OMRON CPM2C-32EDTM is a 32-point mixed discrete I/O expansion unit engineered for direct integration with the CPM2C compact PLC platform. It provides 16 channels of 24 VDC digital input and 16 channels of NPN open-collector transistor output within a single 62 mm-wide housing. The module connects to the host CPU via OMRON’s proprietary CPM2C expansion bus, drawing its 5 VDC logic supply directly from the bus rail — no external module power supply is required. This architecture reduces panel wiring complexity and eliminates one power distribution node from the control cabinet design.

I/O word allocation is handled automatically by the CPM2C CPU at power-up. Each expansion unit in the chain is assigned one input word and one output word in the CPU’s data memory table based on its physical position. This deterministic addressing scheme removes the need for DIP switch configuration or software node assignment, which are common sources of commissioning errors in manually addressed distributed I/O architectures. Up to three CPM2C expansion units — of any supported type — can be cascaded from a single CPU unit, extending the system’s discrete I/O capacity by up to 96 additional points without requiring a CPU upgrade or changes to the existing ladder program structure.

The CPM2C-32EDTM is suited for machine control applications where panel space is constrained, I/O response time must be bounded, and field-side isolation from the CPU logic bus is a design requirement. Typical deployment contexts include packaging machinery, conveyor control panels, injection molding auxiliaries, and assembly line sequencing systems operating in environments with moderate conducted EMI from adjacent motor drives and switching power supplies.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CPM2C-32EDTM’s signal path architecture is organized around a dual-plane PCB layout that physically separates field-side I/O circuitry from the expansion bus logic layer. Each of the 16 input channels is conditioned through a dedicated optocoupler preceded by a 3.3 kΩ series resistor. This resistor sets the channel’s nominal current draw at 7 mA at 24 VDC while simultaneously establishing the ON/OFF voltage thresholds at 14.4 V and 5.0 V respectively — a 9.4 V hysteresis band that provides substantial noise margin against common-mode interference generated by variable-frequency drives, contactor coil switching, and inductive load transients sharing the same 24 VDC supply rail.

On the output side, each NPN transistor channel uses an open-collector configuration with an integrated flyback suppression diode. When the output drives an inductive load — relay coil, solenoid valve, motor brake — the diode clamps the back-EMF transient to within the transistor’s collector-emitter breakdown voltage, preventing the spike from propagating to adjacent output channels or coupling into the output common rail. The 300 mA per-channel ceiling with a 900 mA per-common constraint means that simultaneous activation of more than three outputs in a common group requires load current budgeting during the ladder logic design phase; this is a standard constraint in NPN transistor output modules of this class and must be reflected in the I/O load schedule.

The expansion bus interface operates as a synchronous parallel register transfer between the CPM2C CPU’s I/O controller ASIC and the expansion unit’s local I/O register file. During each CPU scan cycle, the I/O refresh phase reads all 16 input channel states into the assigned input word and writes the 16 output channel states from the assigned output word in a single atomic operation. This tight coupling to the scan cycle bounds I/O latency to the CPU’s scan time — typically 0.5 ms to 2 ms for CPM2C programs of moderate instruction count — rather than introducing the variable latency of an asynchronous serial fieldbus. The practical result is that I/O response time is predictable and consistent across operating conditions, which is a prerequisite for closed-loop control tasks implemented in ladder logic.

EMC performance is further reinforced by the module’s chassis grounding path. The DIN rail mounting clip provides a low-impedance connection between the module’s metal housing and the panel earth bus. High-frequency common-mode noise coupled onto the field wiring is shunted to chassis ground through the module’s internal Y-capacitor network before it reaches the optocoupler input stage. In panels with significant conducted EMI — such as those containing multiple servo amplifiers or large soft starters — this chassis ground path is the primary mechanism preventing noise injection into the CPU logic bus through the expansion connector.

System Integration Benefits

• Automatic I/O Word Assignment at Power-Up: The CPM2C CPU assigns input and output memory words to each expansion unit based on physical chain position during initialization. No rotary switches, DIP banks, or software node configuration are involved, removing a documented source of field commissioning errors in manually addressed I/O systems.
• Bus-Powered Logic Eliminates Dedicated Module Supply: The 5 VDC logic supply is sourced entirely from the CPM2C expansion bus. This removes one 24 VDC output from the panel power supply load calculation, simplifies the power distribution wiring diagram, and eliminates a potential single-point failure in the module power path.
• Full Photocoupler Isolation Across All 32 Channels: Galvanic separation between field wiring and CPU bus logic prevents ground loop formation and blocks field-side transients from reaching the CPU backplane. This is particularly relevant in mixed-voltage enclosures where 24 VDC control circuits share a cabinet with 400 VAC motor circuits and their associated leakage currents.
• Scan-Synchronous I/O Refresh Provides Bounded Latency: I/O data exchange occurs within the CPU’s deterministic scan cycle, not through an asynchronous communication protocol. This eliminates the jitter associated with token-passing or CSMA/CD fieldbus architectures and makes the module suitable for time-sensitive sequencing tasks.
• 62 mm Width Delivers High I/O Density per Panel Unit: Thirty-two discrete I/O points in a 62 mm housing width is a competitive density figure for bus-powered expansion modules. For OEM machine builders working within fixed enclosure dimensions, this directly reduces the panel width required per I/O point and lowers enclosure material cost.
• NPN Output Topology Compatible with Standard 24 VDC Sensor Ecosystems: Open-collector NPN outputs interface directly with the majority of 24 VDC inductive proximity sensors, photoelectric sensors, relay coils, and indicator lamps used in Asian and European industrial markets without requiring signal conditioning or polarity conversion hardware.
• Three-Unit Cascade Supports Incremental I/O Expansion: Adding up to three CPM2C expansion units to a single CPU allows the system’s discrete I/O capacity to grow in 32-point increments without CPU replacement. Existing ladder logic addressing is unaffected by adding expansion units beyond the current chain, protecting the software investment in established machine programs.
• 0.1 ms Output ON Response Supports High-Cycle Pneumatic Applications: The transistor output’s 0.1 ms ON response time is sufficient for driving pneumatic valve solenoids in packaging and assembly machinery where actuator cycle rates exceed 60 operations per minute. Relay output alternatives with 10 ms response times are not suitable for these applications.
• Integrated Flyback Diodes Remove External Suppression Requirement: Built-in flyback protection on each output channel eliminates the need for external RC snubbers or metal oxide varistors on inductive loads. This reduces the component count on the output terminal strip and removes a wiring step that is frequently omitted during field installation, leading to premature output transistor failure.
• 0–55°C Operating Range Covers Non-Climate-Controlled Environments: The continuous operating temperature ceiling of 55°C accommodates deployment in non-air-conditioned production floors in tropical climates and in enclosures with limited ventilation, without requiring forced-air cooling or derating of the output current specifications.

Quality Assurance & Global Logistics

All CPM2C-32EDTM units supplied through siemensplc.com are genuine OMRON OEM product procured through verified distribution channels. Units arrive in original OMRON anti-static packaging with intact factory seals, manufacturer date codes, and lot number labels. Each unit undergoes a pre-shipment inspection covering housing and connector integrity, label verification against the purchase order SKU, and continuity testing of the expansion bus connector pins before dispatch.

Lot numbers and date codes are recorded at inbound inspection and are available upon request for customer quality audit documentation. For projects requiring component traceability — including automotive, semiconductor fabrication, and pharmaceutical automation installations — full lot documentation is provided with the shipment as standard practice.

Logistics operations are based in Xiamen, China. International shipments are dispatched via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to major destinations in Southeast Asia, Europe, the Middle East, and North America. For volume orders, EXW Xiamen Incoterms are available to accommodate customer-nominated freight forwarder arrangements. Standard shipping documentation includes commercial invoice, packing list, and certificate of origin. FORM E preferential origin certificates are available upon request for shipments to ASEAN member states.

A 12-month warranty against manufacturing defects applies to all units. Dead-on-arrival units are eligible for replacement dispatch within 7 business days of confirmed fault verification. Warranty claims are handled directly by our technical team, who provide fault diagnosis support prior to initiating any return authorization.
