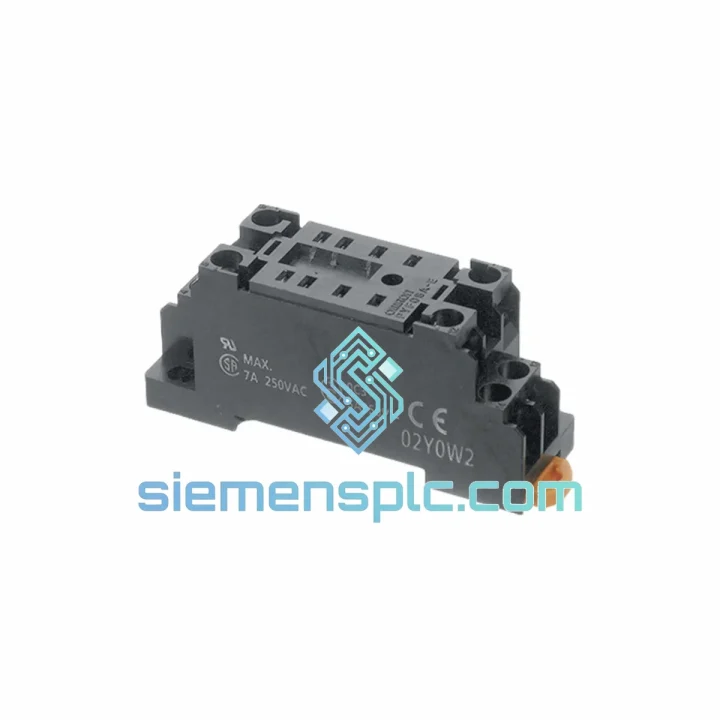

OMRON PYF08A-E Relay Socket – PYF Series

OMRON PYF08A-E — 8-Pin Octal Relay Socket: Structural Role in Industrial Control Circuits

The OMRON PYF08A-E is an 8-pin octal-base relay socket engineered as the fixed wiring interface for OMRON MY2 and MK2 series DPDT relays. Within a control loop, this socket performs a function that is often underestimated: it decouples the relay coil and contact assembly from the panel wiring, enabling field replacement of the relay element without disturbing any conductor termination. In high-cycle automation environments — conveyor sequencing, motor interlock circuits, PLC discrete output expansion — this architectural separation directly reduces mean time to repair (MTTR) and eliminates the risk of terminal damage caused by repeated wire removal and reinsertion.

The PYF08A-E accepts both DIN rail clip mounting and direct panel screw mounting, giving panel builders flexibility in enclosure layout. Its screw-clamp terminals accommodate AWG 22–14 (0.3–2.5 mm²) conductors, covering the full range of control-circuit wire gauges used in 24 V DC and 120/240 V AC applications. The silver-alloy contact inserts within the socket body are rated at 10 A continuous, with a dielectric withstand of 2,000 V AC between adjacent terminals — a margin that supports deployment in mixed-voltage panels where creepage and clearance distances are critical.

From a system architecture perspective, the PYF08A-E functions as a standardized node in the relay output tier of a PLC-driven control system. Each socket provides a mechanically keyed interface that prevents incorrect relay insertion, a feature that becomes operationally significant during night-shift maintenance when visual verification conditions are poor. The locking lever integrated into the socket body retains the relay under vibration loads consistent with IEC 60068-2-6 test profiles, making the assembly suitable for mobile equipment, compressor skids, and other mechanically dynamic installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PYF08A-E is built around an octal-base contact architecture in which all eight pins are arranged in a circular pattern with 11.2 mm center-to-center spacing. This geometry is not arbitrary — it is derived from the IEC 61810 standard for relay bases and ensures interoperability across the OMRON PYF product family. The mechanical keying notch on the socket body enforces a single valid insertion orientation, eliminating the 180° misalignment failure mode that occurs with non-keyed sockets in high-turnover maintenance environments.

The screw-clamp terminal block within the PYF08A-E uses a captive-screw design with a torque specification of 0.5 N·m. This value is calibrated to achieve the contact force required for a stable, low-resistance junction (target: <5 mΩ per terminal at rated current) without deforming the conductor strands — a balance that is particularly important when using fine-stranded flexible cable in mobile panel applications.

From an EMC standpoint, the socket body is constructed from glass-filled polyamide (PA66-GF30), a material selected for its dimensional stability across the full operating temperature range and its resistance to tracking under high-humidity conditions. The UL 94 V-0 flammability rating of the housing material ensures that any localized thermal event caused by a high-resistance contact does not propagate to adjacent wiring. The silver-alloy contact inserts exhibit a contact resistance that remains below 50 mΩ after 100,000 mechanical operations under rated load — a figure derived from OMRON’s published endurance test data for the PYF series.

The DIN rail clip mechanism uses a spring-steel latch rated for 1,000 insertion/removal cycles without measurable degradation in retention force. This is relevant in panel retrofit projects where sockets may be repositioned multiple times during commissioning. The clip geometry conforms to EN 60715 (35 mm × 7.5 mm top-hat rail), ensuring compatibility with standard DIN rail profiles from all major panel hardware suppliers.

System Integration Benefits

• Zero-rewire relay replacement: The socket-relay separation architecture allows a failed relay to be extracted and replaced in under 30 seconds without touching any wired terminal, reducing unplanned downtime in production-critical circuits.
• Deterministic contact geometry: The keyed octal base guarantees correct pin-to-terminal mapping on every insertion, eliminating wiring errors that would otherwise require continuity testing after each relay swap.
• Broad voltage compatibility: Rated for 250 V AC and 300 V DC contact circuits, the PYF08A-E covers the full spectrum of industrial control voltages — from 24 V DC PLC output circuits to 240 V AC motor contactor pilot circuits — within a single socket model.
• Vibration-resistant retention: The integrated locking lever maintains relay seating under mechanical vibration, preventing intermittent contact faults in installations on compressor skids, mobile equipment, or near large rotating machinery.
• Standardized panel footprint: The 35 mm DIN rail pitch and fixed socket dimensions allow panel designers to calculate exact rail space allocation without per-project measurement, accelerating panel layout and BOM generation.
• Mixed-mounting flexibility: Support for both DIN rail and direct panel screw mounting allows the same socket model to be used across enclosure types — from standard DIN rail cabinets to custom sheet-metal panels — without stocking two separate part numbers.
• Diagnostic transparency: The transparent or semi-transparent relay body (when used with OMRON MY2 series) allows visual inspection of contact state and coil energization indicator without opening the enclosure, supporting walk-by diagnostic routines in manned facilities.
• Regulatory compliance coverage: UL listing, CE marking, and RoHS compliance allow the PYF08A-E to be incorporated into equipment destined for North American, European, and Asian markets without requiring socket-level re-certification, simplifying the machine builder’s compliance documentation.

Quality Assurance & Global Logistics

Every OMRON PYF08A-E unit supplied through siemensplc.com is sourced directly from OMRON’s authorized distribution network. Each unit undergoes incoming inspection covering physical integrity of the socket body, pin alignment within tolerance, terminal screw torque verification, and label authenticity cross-check against OMRON’s published part marking standards. Units are stored in ESD-safe, climate-controlled warehousing in Xiamen, China, maintaining ambient conditions within the storage temperature specification of −40 °C to +70 °C.

Xiamen’s geographic position — a major port city in Fujian Province with direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables same-day dispatch for orders confirmed before 15:00 CST. International shipments are routed via DHL Express, FedEx International Priority, or UPS Worldwide Expedited depending on destination and customer preference, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include commercial invoice, packing list, and certificate of origin documentation to support customs clearance. Bulk orders (>100 units) are eligible for consolidated sea freight via Xiamen Port with full container load (FCL) or less-than-container load (LCL) options.

Each shipment is covered by a 12-month warranty from the date of dispatch. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or credit issued upon confirmation of manufacturing defect. Our technical team — staffed by engineers with hands-on experience in OMRON relay system integration — provides pre-sales cross-reference support and post-sales commissioning assistance at no additional charge.
