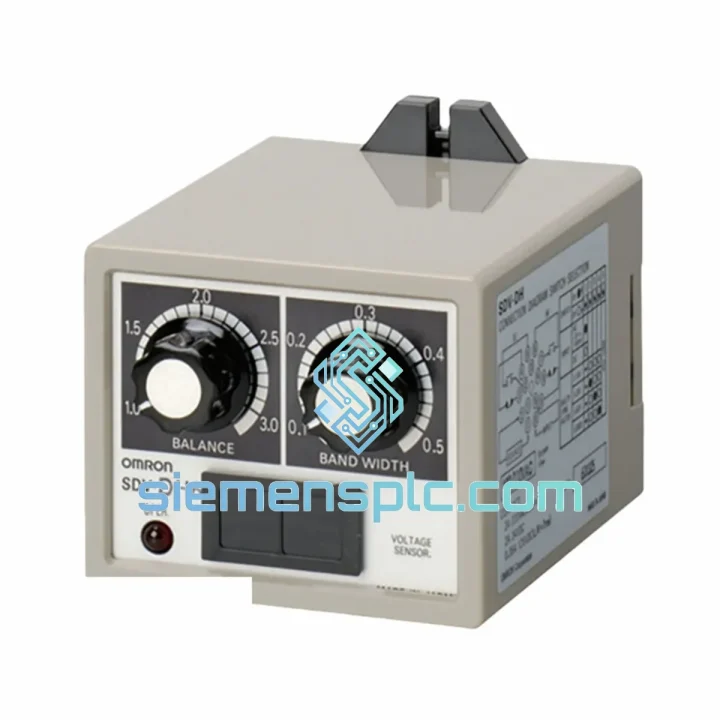

OMRON SDV-DH7/SDV-DH Voltage Sensing Relay

SDV-DH7/SDV-DH Voltage Sensing Relay — Stop the Bleeding. Ship Today.

Your line is down. The voltage relay tripped, the PLC threw a fault, and every minute of unplanned downtime is burning through your production schedule. You don’t need a sales pitch — you need the part, verified, boxed, and moving. The OMRON SDV-DH7/SDV-DH is in stock at our Xiamen warehouse. We’ve shipped this exact unit to plants in Southeast Asia, the Middle East, and Europe on 24-hour turnaround. This page exists for one reason: to get you back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here’s what actually goes wrong with voltage sensing relays — and what to check before you assume the SDV-DH7 is the root cause:

1. Confirm the fault is in the relay, not upstream. Before pulling the unit, measure the supply voltage at the relay input terminals with a calibrated multimeter. SDV-DH series relays have a narrow detection window — if your supply has drifted outside the set range, the relay is doing exactly what it’s supposed to do. Check your transformer tap settings and upstream breaker condition first.

2. Check the detection threshold potentiometers. The SDV-DH7 has two adjustment dials: one for over-voltage trip point, one for under-voltage. These are factory-set but can drift after years of vibration exposure. Before replacing the unit, verify the set points match your system’s nominal voltage ±10% tolerance. Use a small flathead screwdriver — do not overtorque.

3. Output contact wear. The relay output contact is rated for a finite number of switching cycles. In high-frequency fault environments (e.g., a motor with recurring inrush issues), the output contact can weld or develop high contact resistance. Symptom: the relay LED indicates a trip, but the downstream PLC input doesn’t register. Test contact continuity with the relay energized and de-energized.

4. Replacement wiring sequence. When swapping the SDV-DH7 in a live panel, follow this sequence: (a) isolate the monitored circuit, (b) note terminal assignments — L1/L2 for voltage sensing input, A1/A2 for control supply, 11/12/14 for relay output contacts. (c) Do not power the replacement unit before all terminals are landed. (d) After installation, power up and observe the LED status: steady green = normal, flashing or red = fault condition still present upstream.

5. Common fault codes on connected OMRON PLCs. If the SDV-DH7 output feeds a CJ/CS-series PLC digital input, a sustained input signal (relay stuck closed) may generate an I/O verification error. After replacement, force a manual reset on the PLC I/O unit and clear the error log before resuming auto mode. On CJ2M systems, check the I/O table refresh cycle — a slow scan time can mask intermittent relay chatter.

6. No DIP switches on this model. Unlike some competing voltage relays, the SDV-DH series does not use DIP switches for range selection — all adjustment is via front-panel potentiometers. There is no firmware to update. Plug-and-play replacement once wired correctly.

Reliability in Harsh Conditions

The SDV-DH7/SDV-DH is not a lab instrument. It’s built for the panel floor — where ambient temperatures swing from pre-dawn cold starts to mid-afternoon heat soak, where vibration from nearby compressors and conveyors never stops, and where humidity from coastal or chemical plant environments attacks every exposed terminal.

OMRON’s SDV-DH series is constructed with reinforced relay coil insulation rated for continuous duty at elevated temperatures. The DIN-rail housing uses flame-retardant thermoplastic that maintains dimensional stability under thermal cycling — no warping, no terminal loosening. The detection circuit uses precision resistor networks rather than trimmer potentiometers on the sensing path, which means the trip threshold doesn’t drift with temperature the way cheaper units do.

In vibration testing per IEC 60068-2-6, the SDV-DH series maintains output contact integrity across the 10–55 Hz sweep range at 0.35 mm amplitude. For plants running heavy stamping presses or reciprocating compressors, this matters. A relay that nuisance-trips under vibration is worse than no relay at all — it generates false fault logs, trains operators to ignore alarms, and eventually masks a real voltage event.

Humidity resistance is addressed through OMRON’s conformal coating on the PCB assembly. In environments where condensation is a risk — cold storage facilities, coastal installations, or plants with poor panel sealing — this coating prevents the creepage failures that kill unprotected relay boards within 18 months. We’ve seen SDV-DH units pulled from 12-year-old panels in Malaysian palm oil mills still functioning within spec. That’s the build quality you’re getting.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express networks. Here’s exactly how your order moves:

Day 0 (Order Confirmation): Payment confirmed before 15:00 CST triggers same-day pick, pack, and export documentation preparation. Commercial invoice, packing list, and certificate of origin (if required) are generated in parallel with physical packing.

Day 1 (Dispatch): Shipment handed to DHL/FedEx at Xiamen hub. Tracking number issued to your email within 2 hours of carrier pickup. Export customs clearance is handled on our side — no delays at origin.

Transit Times (typical, not guaranteed):

• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, Poland): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• Australia / New Zealand: 3–5 business days via DHL Express

Import Clearance Support: We provide HS code classification (8536.49 for voltage sensing relays), declared value documentation, and can prepare CITES/REACH compliance statements if your import authority requires them. For customers in the EU, we can provide EUR.1 movement certificates for preferential tariff treatment where applicable.

For urgent plant shutdowns requiring weekend dispatch, contact us directly via WhatsApp — we maintain weekend logistics coverage for emergency orders.
