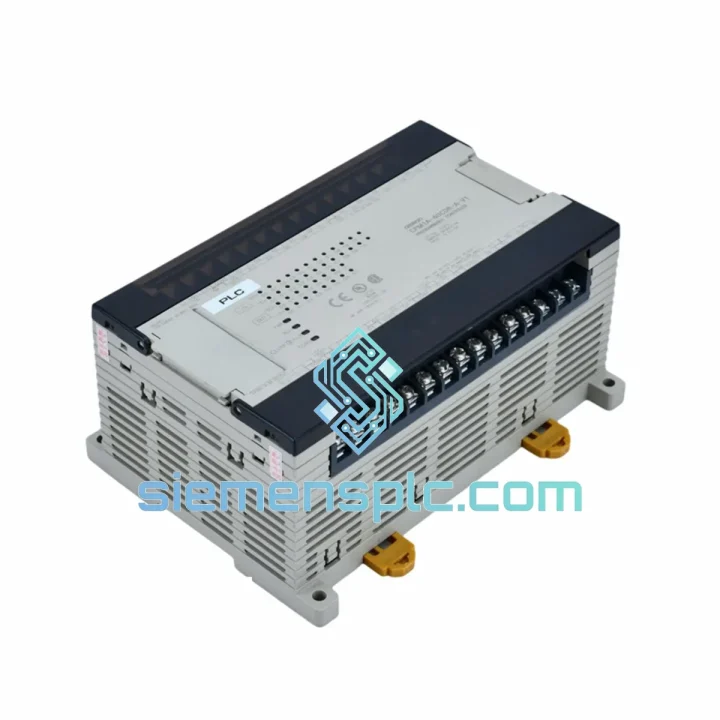

OMRON TPM1A-40CDR-A Programmable Logic Controller

OMRON TPM1A-40CDR-A — Stop the Bleeding: Every Minute of Downtime Costs You Money

Your line is down. The CPM1A-based panel is dead. Maintenance is standing by. Procurement is calling. You already know the TPM1A-40CDR-A is the unit you need — the question is who has it right now and can get it to your dock before the next shift.

We stock the OMRON TPM1A-40CDR-A in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 15:00 CST go out the same day. No broker delays, no grey-market risk — 100% original OMRON CPM1A Series hardware, traceable to factory batch.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a CPM1A unit in the field is straightforward if you know where the traps are. Here is what bites engineers most often:

1. Program Backup Before You Touch Anything
If the original CPU is still partially alive, connect CX-Programmer via the RS-232C peripheral port immediately and upload the ladder program. The TPM1A-40CDR-A has no battery-backed flash — program memory is volatile on power loss. If the unit is completely dead, check whether a Memory Cassette (CPM1-EMU01-V1) was installed; it retains the program independently of the CPU.

2. TPM1A vs CPM1A — Are They the Same?
Yes. The TPM1A prefix is an OMRON regional OEM/distribution variant. Hardware, firmware revision, and I/O mapping are identical to the standard CPM1A-40CDR-A. Programs transfer without modification. Expansion units (CPM1A-20EDR1, CPM1A-8ED, etc.) connect and auto-address identically.

3. Expansion Unit Auto-Addressing
CPM1A expansion units self-address based on physical connection order — no DIP switches, no manual node assignment. Connect units left-to-right in the order your program expects them. If the sequence is wrong, I/O mapping will be offset and outputs will fire on incorrect channels. Verify the expansion chain order against the original panel drawing before powering up.

4. Common Fault Codes on CPM1A

• ERR LED solid ON — Fatal CPU error. Cycle power. If it persists after program reload, the CPU is hardware-failed. Replace the unit.
• ALM LED flashing — Non-fatal alarm: I/O bus error, memory error, or watchdog timeout. Check expansion unit connections and re-download the program.
• PWR LED OFF with AC present — Internal power supply failure. The AC input fuse (internal, non-user-replaceable) may have blown due to a surge. Unit requires replacement.
• Outputs not switching despite correct ladder logic — Verify output common terminal wiring. Relay commons are grouped; a missing common wire will silence an entire output group silently.
• CX-Programmer cannot connect — Check COM port settings: 9600 baud, 7 data bits, 2 stop bits, even parity. Use a genuine CS1W-CN226 cable or a verified USB-serial adapter (FTDI chipset recommended).

5. Firmware Compatibility
The TPM1A-40CDR-A ships with factory firmware. No field firmware update is required or supported on CPM1A hardware — firmware is mask-ROM based. If a replacement unit exhibits different behavior from the original, verify the program was uploaded correctly and check for any DM (Data Memory) area values that the original program relied on as persistent configuration data.

Reliability in Harsh Conditions

The CPM1A platform was designed for the factory floor, not the server room. The TPM1A-40CDR-A carries an operating temperature range of 0–55 °C and withstands humidity up to 90% RH non-condensing — covering the majority of tropical and coastal industrial environments without additional climate control.

Vibration resistance is rated to IEC 60068-2-6: 10–57 Hz at 0.075 mm amplitude, 57–150 Hz at 9.8 m/s². In practical terms, this covers conveyor frames, compressor skids, and pump station panels where mechanical vibration is continuous. The relay output contacts are rated for 100,000 electrical operations at rated load — in a typical packaging line cycling at 60 operations per minute, that translates to over 27 hours of continuous switching per contact before wear becomes a factor.

The unit’s IP20 enclosure rating means it requires a sealed control cabinet in dusty or wet environments — standard practice for any DIN-rail PLC. Internal conformal coating on the PCB provides additional protection against condensation during temperature cycling, a common failure mode in outdoor pump stations that experience day-night thermal swings.

OMRON’s manufacturing process for the CPM1A series includes 100% burn-in testing at elevated temperature before shipment. Units that reach the field have already survived the infant mortality phase of the bathtub curve. Mean time between failures (MTBF) for the CPM1A CPU is rated at over 100,000 hours under standard operating conditions — roughly 11 years of continuous operation.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UF Express international gateways. Here is exactly how your order moves:

• Order Confirmed → Same-Day Pick & Pack — Orders placed and payment confirmed before 15:00 CST are picked, inspected, and packed the same business day. Anti-static bubble wrap, foam-lined carton, and humidity indicator card included as standard.
• Export Documentation — Commercial invoice, packing list, and HS Code 8537.10 declaration prepared same day. For customers requiring a Certificate of Origin or specific customs valuation documentation, notify us at order time.
• DHL Express Worldwide — Transit time: 2–4 business days to Europe, North America, Southeast Asia, and the Middle East. Real-time tracking from pickup to delivery.
• FedEx International Priority — Available for customers with FedEx account numbers or for destinations where DHL coverage is limited. Comparable transit times.
• Customs Clearance — We declare accurate commercial values. DAP (Delivered At Place) is our standard Incoterm — you handle import duties at destination. DDP available on request for select countries.
• Emergency Air Freight — For multi-unit orders or oversized shipments, we coordinate with freight forwarders for next-flight-out air cargo. Contact us directly for a quote within 2 hours.

We have shipped OMRON CPM1A hardware to manufacturing plants in Germany, Thailand, Mexico, Saudi Arabia, and Australia within 72 hours of order confirmation. If your plant is down, time is the only variable we can still control — and we take that seriously.
