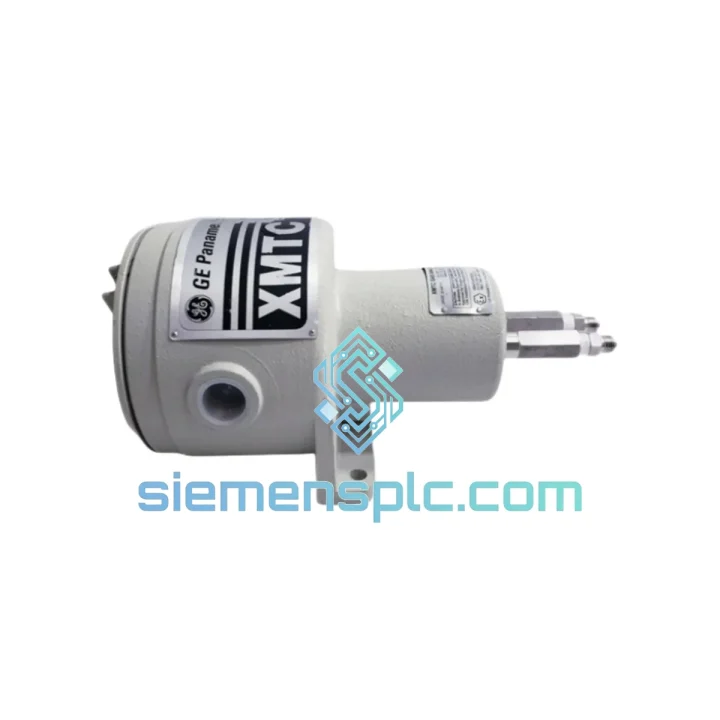

Panametrics XMTC-62-21 Conductivity Transmitter

XMTC-62-21 Conductivity Transmitter: Stop the Clock on Your Unplanned Shutdown

Every hour your process line sits idle costs real money — lost throughput, idle labor, contractual penalties. When a Panametrics XMTC-62-21 conductivity transmitter fails, you don’t have time to chase a 6-week lead time through standard distribution. We stock this unit in Xiamen and ship globally via DHL/FedEx Express. From your purchase order to a tracking number in your inbox: typically under 24 hours.

The XMTC-62-21 is a loop-powered 4–20 mA conductivity transmitter from the Panametrics XMTC Series — a workhorse found in water treatment, pharmaceutical CIP loops, power plant feedwater circuits, and chemical dosing systems worldwide. When it goes down, your entire measurement loop goes blind. Get it back online fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience — here’s what to check before and after swapping an XMTC-62-21:

Common Failure Symptoms:

• Fixed 4 mA output (0% reading): Usually a wiring fault or failed internal power supply. Check loop continuity first. If loop is intact and 24 VDC is confirmed at terminals, the transmitter is likely dead.
• Fixed 20 mA output (100% / saturated): Sensor short-circuit or process conductivity genuinely off-scale. Disconnect the sensor and check transmitter output in air — if it drops to ~4 mA, the sensor is the culprit, not the transmitter.
• Erratic / noisy signal: Ground loop interference is the #1 cause. Verify shield grounding at one end only. Check for nearby VFD or high-current cable runs inducing noise on the signal pair.
• HART communication failure: Confirm loop resistance is between 230–600 Ω for HART to function. A 250 Ω resistor in series with the loop is standard practice.

Replacement Procedure (Field Checklist):

1. Isolate the loop: de-energize the 24 VDC supply and confirm zero voltage at transmitter terminals with a multimeter.
2. Document the existing wiring configuration — photograph terminal connections before removal.
3. Note the current zero/span calibration values from the DCS historian or local display if available.
4. Remove the old unit. Inspect the conduit entry and terminal block for moisture ingress or corrosion — address before installing the replacement.
5. Install the XMTC-62-21 replacement. Reconnect wiring per the original configuration. Torque terminal screws to spec (typically 0.5–0.6 Nm).
6. Re-energize the loop. Verify 4 mA output with the sensor in air or a known-conductivity reference solution.
7. Perform a two-point calibration (zero and span) using the local keypad or HART communicator. Match the calibration range to your process specification.
8. Confirm the DCS/PLC is receiving the expected signal. Check for any active alarms or diagnostic messages.
9. Document the replacement in your maintenance log with the new unit’s serial number and calibration date.

Configuration Notes: The XMTC-62-21 does not use DIP switches for address assignment — all configuration is performed via the front keypad or HART handheld. If replacing a unit that was HART-configured, use a HART communicator (e.g., Emerson 475) to clone the device configuration from your asset management system before commissioning.

Reliability in Harsh Conditions

The XMTC Series was engineered for environments that destroy lesser instruments. The IP65 / NEMA 4X enclosure is not a marketing claim — it’s a sealed, gasketed housing that has been validated against sustained water jets and particulate ingress. In coastal chemical plants and offshore platforms where salt-laden air accelerates corrosion, the XMTC-62-21’s stainless-steel hardware and conformal-coated PCBs maintain signal integrity where aluminum-housed competitors fail within 18 months.

Vibration is the silent killer of field instruments. The XMTC-62-21 is rated for continuous vibration exposure per IEC 60068-2-6, making it suitable for installation on pump skids and compressor packages without additional isolation mounts. Internal components are potted and mechanically secured — no loose connectors to work free under cyclic stress.

Thermal cycling is equally demanding. From a cold winter startup at –20°C to a summer afternoon in an unventilated enclosure pushing +55°C, the transmitter’s electronics maintain measurement accuracy within specification. The wide operating temperature range eliminates the need for heat tracing or cooling fans in most installations, reducing auxiliary infrastructure cost and one more potential failure point.

Humidity and condensation are addressed through the IP65 seal and the use of hydrophobic materials in the enclosure design. Units stored in our Xiamen warehouse are maintained in climate-controlled conditions and individually bagged with desiccant to ensure they arrive in the same condition they left the factory.

Global Express Logistics

Our Xiamen warehouse is positioned for fast access to major international air freight hubs — Xiamen Gaoqi International Airport handles daily DHL and FedEx freighter operations, giving us same-day handover capability for orders confirmed before 14:00 CST.

Standard Express Workflow:

1. Order Confirmation: Purchase order or proforma invoice accepted. Payment via T/T bank wire or PayPal.
2. Export Documentation: Commercial invoice, packing list, certificate of origin, and HS code declaration prepared within 2 hours of payment confirmation.
3. Carrier Handover: DHL Express or FedEx International Priority pickup scheduled same day for orders confirmed before 14:00 CST.
4. Tracking Issued: AWB number sent to your email within 1 hour of carrier pickup.
5. Delivery Estimates: Europe 2–3 business days | North America 3–4 business days | Southeast Asia 1–2 business days | Middle East 3–5 business days.

For time-critical shutdowns, we can arrange door-to-door DHL Express with customs clearance assistance. We have experience shipping to over 60 countries and maintain a library of country-specific import documentation templates to prevent customs delays. If your plant is in a remote location, we coordinate with local freight forwarders to ensure last-mile delivery.

All shipments are fully insured. In the rare event of transit damage, we initiate a replacement shipment immediately while the insurance claim is processed — your downtime is not held hostage to a claims process.
