Pepperl+Fuchs KFD2-STC4-EX1.20 Transmitter Power Supply – KFD2 Series

Pepperl+Fuchs KFD2-STC4-EX1.20 — Single-Channel SMART Transmitter Power Supply with 3-Way Galvanic Isolation for IEC 60079 Zone 0/1/2 Hazardous Environments

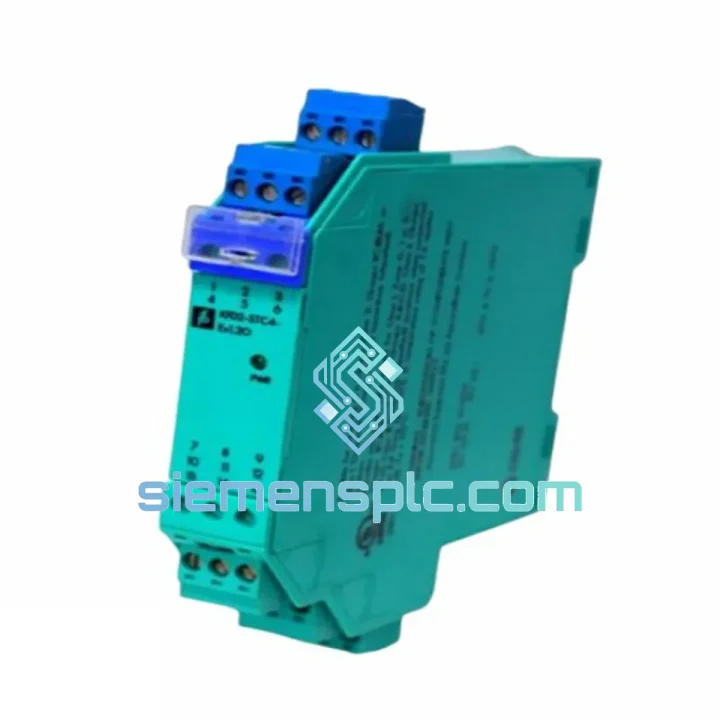

The KFD2-STC4-EX1.20 is a single-channel, DIN-rail-mounted SMART transmitter power supply designed by Pepperl+Fuchs for interfacing 2-wire HART-compatible field transmitters located in IEC 60079-classified explosive atmospheres with safe-area control systems. It delivers a galvanically isolated 4–20 mA analog output to the DCS or PLC input card while simultaneously maintaining bidirectional HART signal transparency — all within a 20 mm wide housing that integrates directly onto the KF-bus power rail.

In process industries where loop integrity is a functional safety prerequisite, the KFD2-STC4-EX1.20 addresses three concurrent engineering requirements: intrinsic safety energy limitation on the field side, complete electrical decoupling between field and safe-area circuits, and unobstructed HART protocol passage for remote diagnostics and asset management. These three functions are delivered in a single module without external zener barriers, without additional HART modem hardware, and without compromising the 4–20 mA signal accuracy that SIL-rated loops depend on.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KFD2-STC4-EX1.20 is built around a transformer-coupled isolation topology rather than optocoupler-based isolation. This architectural choice has measurable consequences for HART signal fidelity. Optocoupler-based designs introduce nonlinear frequency response above 2 kHz, which can attenuate or distort the FSK-modulated HART carrier (1,200 Hz / 2,200 Hz). The transformer-coupled path in the KFD2-STC4-EX1.20 maintains a flat frequency response across the HART band, preserving signal amplitude margins and reducing bit-error rates in long-cable installations where cable capacitance already degrades the HART waveform.

On the field side, the intrinsic safety circuit limits available energy to levels below the minimum ignition energy of the target gas group. For Group IIC (hydrogen, acetylene), this is the most restrictive classification in IEC 60079-11, requiring the lowest permissible open-circuit voltage (Uo) and short-circuit current (Io). The KFD2-STC4-EX1.20 achieves this through a combination of series resistors and shunt zener diodes embedded in the field terminal circuit, forming a certified entity parameter set that must be verified against the connected transmitter’s Um and Ci/Li values during loop design.

The 3-way galvanic isolation architecture separates three electrical domains: the hazardous-area field loop, the safe-area 4–20 mA output circuit, and the module’s internal DC power domain. This prevents any single ground fault — whether on the field cable, the DCS input card, or the power rail — from propagating across isolation barriers. In practice, this eliminates the ground-loop currents that corrupt 4–20 mA signals in large plants where field instruments and control rooms share different earth potential references, a common source of unexplained measurement drift in non-isolated barrier designs.

EMC performance is addressed through internal filtering on both the field and safe-area terminals. The module meets EN 61326-1 for industrial electromagnetic environments, including conducted and radiated immunity per IEC 61000-4-2 through IEC 61000-4-6. The compact 20 mm housing uses a metal backplane contact through the KF-bus rail, providing a low-impedance chassis ground path that supplements the internal filtering and reduces susceptibility to high-frequency transients from variable-frequency drives and switching power supplies commonly installed in the same cabinet.

System Integration Benefits

• Direct DCS AI Card Compatibility: The 4–20 mA output is compatible with standard analog input cards from Emerson DeltaV, Honeywell Experion PKS, ABB 800xA, Siemens PCS 7, and Yokogawa CENTUM VP without signal conditioning adapters, reducing BOM complexity and cabinet wiring labor.
• HART Asset Management Enablement: Bidirectional HART pass-through allows the connected transmitter to be accessed by HART multiplexers, handheld communicators (e.g., Emerson 475/475), and AMS Device Manager or FieldCare without loop interruption or additional hardware taps.
• SIL Loop Contribution: The module’s low systematic failure fraction and documented failure mode data support its use in SIL 2 safety instrumented functions when applied per IEC 61511. Consult the Pepperl+Fuchs SIL data sheet for PFDavg and λDU values applicable to your proof-test interval.
• KF-Bus Power Rail Integration: Modules draw supply from the shared KF-bus rail, eliminating individual power wiring to each module. A single power supply unit feeds an entire marshalling rack, reducing terminal count and simplifying power distribution design.
• Plug-and-Play Replacement: The KFD2-STC4-EX1.20 occupies the same 20 mm DIN-rail slot and uses the same terminal assignment as earlier KFD2-STC4-EX1 variants, enabling in-service replacement without rewiring — a critical advantage during turnaround maintenance windows where downtime is measured in hours.
• Diagnostic Transparency: Because HART communication is unmodified by the module, all transmitter diagnostic variables — including sensor degradation flags, loop current saturation alerts, and device status bytes — reach the host system intact. This supports predictive maintenance programs without requiring additional field visits.
• Reduced Ground Loop Risk: The 3-way isolation eliminates the need for careful earth bonding between field instrument ground and DCS analog input ground, simplifying installation in brownfield plants where grounding infrastructure is inconsistent or undocumented.
• Scalable Marshalling Architecture: The 20 mm form factor allows up to 24 channels per 480 mm DIN-rail segment. Combined with KF-bus power distribution, this supports high-density I/O marshalling in compact junction boxes or remote I/O enclosures without increasing cabinet footprint.
• Wide Operating Temperature Range: The −20 °C to +60 °C rating covers both arctic outdoor junction boxes and high-ambient control rooms in tropical climates, eliminating the need for cabinet heating or cooling in most standard installations.

Quality Assurance & Global Logistics

Every KFD2-STC4-EX1.20 unit supplied through siemensplc.com is sourced from verified distribution channels with documented supply chain traceability. Units are inspected upon receipt for intact ATEX/IECEx certification labels, correct model number markings, undamaged housing and terminal blocks, and original Pepperl+Fuchs packaging integrity. Batch records and serial number documentation are retained to support your plant’s audit and traceability requirements.

Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct air freight connections to Frankfurt, Dubai, Singapore, Los Angeles, and Amsterdam. Standard export documentation includes a commercial invoice, packing list, and certificate of conformity. For projects requiring additional documentation — material test reports, country-of-origin certificates, or third-party inspection — these are arranged at the quotation stage.

Typical dispatch for in-stock units is within 1–3 business days of purchase order confirmation. Air freight transit times to most destinations in Europe, the Middle East, and Southeast Asia range from 3–7 business days. For time-critical MRO requirements, expedited courier options (DHL Express, FedEx Priority) are available and quoted on request. All shipments are fully insured and tracked from dispatch to delivery confirmation.
