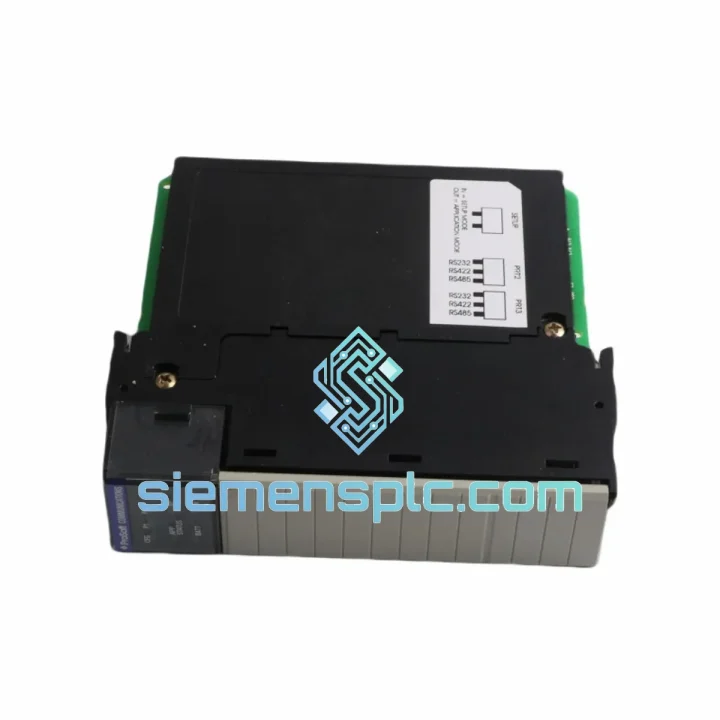

ProSoft MVI56-GSC PLC Communication Module – MVI56 Series

ProSoft MVI56-GSC: Dual-Port ASCII Serial Gateway for ControlLogix Backplane Integration

The ProSoft MVI56-GSC is a two-port, full-duplex ASCII serial communication module designed to occupy a single slot in any Rockwell Automation 1756 ControlLogix chassis. Its primary function is to act as a protocol bridge between the deterministic ControlLogix backplane and external serial peripherals that communicate using raw ASCII character streams — a category that includes barcode scanners, weigh-scale indicators, RFID readers, serial printers, gas analyzers, flow computers, and a broad range of legacy instrumentation. Unlike gateway solutions that require an external DIN-rail-mounted converter and additional wiring infrastructure, the MVI56-GSC draws power directly from the 1756 backplane at 800 mA / 5 VDC and exchanges data with the ControlLogix processor through the standard backplane data transfer mechanism at up to 5,000 words per program scan — eliminating Ethernet latency and external power supply dependencies from the signal path.

Each of the two serial ports is independently configurable for RS-232, RS-422, or RS-485 electrical standards. Port-level parameters — baud rate (110 bps to 115,200 bps), data bits (5/6/7/8), parity (None/Even/Odd), stop bits (1/2), and flow control (RTS/CTS hardware or XON/XOFF software) — are set individually, allowing Port 0 to serve a 9,600-baud RS-232 barcode scanner while Port 1 simultaneously drives a 115,200-baud RS-485 multi-drop instrument network. Message framing is equally flexible: end-of-message detection can be triggered by a fixed character count, an elapsed inter-character timeout, or a user-defined termination character sequence, accommodating virtually any ASCII framing convention without custom ladder logic.

Data exchange with the ControlLogix processor is handled through a structured tag database exposed as Add-On Instructions (AOI) within Studio 5000 Logix Designer. Inbound ASCII strings are parsed and deposited into controller tags; outbound strings are assembled from tag values and transmitted on demand or on a configurable cyclic schedule. The module supports both solicited (master-initiated) and unsolicited (slave/listener) communication modes on each port independently, enabling bidirectional data flows with devices that push data spontaneously — such as weigh scales that transmit a weight reading upon stabilization — as well as devices that require a poll command before responding.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MVI56-GSC is built around a dedicated embedded processor that runs the serial communication stack independently of the ControlLogix CPU scan cycle. This architectural separation is significant: the module’s internal firmware handles character-level reception, message assembly, buffer management, and transmission queuing autonomously, then presents completed message objects to the backplane interface for atomic transfer to the controller tag database. The ControlLogix processor therefore never stalls waiting for a slow serial device — a 9,600-baud instrument with a 200 ms response time imposes zero jitter on the PLC scan.

Each serial port driver implements a hardware UART with a dedicated 4,096-byte receive FIFO and a 4,096-byte transmit FIFO. The FIFO depth prevents character overrun even when the embedded processor is momentarily occupied servicing the backplane DMA transfer, which is critical for high-baud-rate RS-485 multi-drop networks where inter-character gaps are measured in microseconds. The RS-485 driver includes automatic transmit-enable (TX-EN) assertion and de-assertion with configurable propagation delay compensation, eliminating the half-duplex bus contention that plagues software-managed TX-EN implementations.

From an EMC standpoint, the module’s serial port circuitry incorporates opto-isolation on the RS-422 and RS-485 signal lines, providing galvanic separation between the ControlLogix backplane ground reference and the field wiring ground. This isolation barrier — rated to withstand common-mode transients — suppresses ground loop currents that are endemic in large industrial facilities where cable runs span multiple electrical panels. The RS-232 port includes TVS diode protection on all signal lines (TD, RD, RTS, CTS) to clamp ESD events and inductive transients from relay-switched equipment in the same cabinet.

The backplane interface uses the standard 1756 local I/O data transfer protocol, which is a time-deterministic, token-based mechanism managed by the ControlLogix chassis backplane controller. Data integrity is guaranteed by the backplane’s CRC-checked transfer protocol; the MVI56-GSC does not require application-layer checksums for backplane data exchange. Configuration parameters are stored in non-volatile flash memory on the module, so the module resumes operation with the correct port settings immediately after a power cycle without requiring a download from the ControlLogix processor.

System Integration Benefits

• Zero External Hardware Overhead: The module installs directly into the 1756 chassis, drawing backplane power and communicating over the backplane bus — no external power supply, no Ethernet switch port, and no DIN-rail footprint are consumed by the serial gateway function.
• Deterministic Backplane Latency: Backplane data transfer completes within a single ControlLogix scan cycle (typically 5–20 ms for most applications), providing a predictable, bounded latency between serial device data and controller tag values — a property that Ethernet-based gateways cannot guarantee due to TCP/IP stack variability.
• Independent Port Operation: Both serial ports operate under separate firmware task contexts. A communication fault, buffer overflow, or device timeout on Port 1 does not affect the data flow on Port 0, improving overall system availability in multi-device configurations.
• Flexible Message Framing: Three end-of-message detection modes (character count, inter-character timeout, termination character sequence) allow the module to interface with devices that use non-standard or proprietary ASCII framing without requiring custom ladder logic or function block code in the ControlLogix program.
• Studio 5000 AOI Integration: ProSoft-supplied Add-On Instructions expose all module data — received strings, transmit buffers, port status, error counters, and diagnostic flags — as structured controller tags within Studio 5000 Logix Designer, enabling engineers to access serial device data using standard tag-based programming without writing MSG instruction ladder rungs.
• Diagnostic Transparency: The module maintains per-port counters for characters received, characters transmitted, message framing errors, parity errors, overrun events, and CRC faults. These counters are mapped to controller tags and can be trended in FactoryTalk View or any OPC-DA/UA client, providing continuous visibility into serial link health without requiring a laptop connected to the serial port.
• Bidirectional Communication Modes: Each port independently supports master (solicited polling) and slave (unsolicited receive) modes. This allows a single MVI56-GSC to simultaneously poll a flow computer on Port 0 while listening for spontaneous weight readings from a scale indicator on Port 1 — a configuration that would otherwise require two separate gateway devices.
• Field Firmware Upgrades: ProSoft Configuration Builder (PCB) supports in-field firmware updates over the RS-232 port without removing the module from the chassis. This capability allows bug fixes and feature additions to be applied during scheduled maintenance windows without hardware replacement, reducing lifecycle cost.
• RS-485 Multi-Drop Network Support: Port 1 (and optionally Port 0) can be configured for RS-485, supporting up to 32 addressable nodes on a single twisted-pair bus at cable lengths up to 1,200 m at low baud rates. The automatic TX-EN management eliminates the need for external RS-485 repeaters or bus arbitration hardware in most industrial multi-drop topologies.
• Broad Environmental Tolerance: The 0 °C to +60 °C operating range and 5–95 % RH non-condensing humidity rating cover the majority of industrial panel environments without requiring additional climate control, and the −40 °C storage rating accommodates cold-chain warehousing and outdoor equipment enclosures during shipping and installation.

Quality Assurance & Global Logistics

Every ProSoft MVI56-GSC unit supplied through siemensplc.com is sourced from verified industrial distribution channels with full traceability to authorized ProSoft Technology distributors. Each unit undergoes a structured incoming inspection protocol prior to dispatch: visual examination of housing, label, and connector integrity; serial number verification against ProSoft’s product database; and a functional power-on test confirming backplane communication initialization and port driver enumeration. Units are supplied new-in-original-box (NIB) with factory-sealed packaging, original ProSoft documentation, and the ProSoft Configuration Builder (PCB) software download reference.

All shipments originate from our warehouse in Xiamen, China — a major logistics hub with direct access to international air freight services via Xiamen Gaoqi International Airport and sea freight via Xiamen Port. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for every shipment. DHL Express, FedEx International Priority, and UPS Worldwide Express are available for time-critical orders, with transit times of 3–5 business days to North America and Europe. Sea freight consolidation is available for volume orders. All units ship with a 12-month warranty against manufacturing defects, with advance replacement available for qualified accounts.
