ProSoft Technology MVI56-PDPS PROFIBUS-DP Slave Module – MVI56 Series

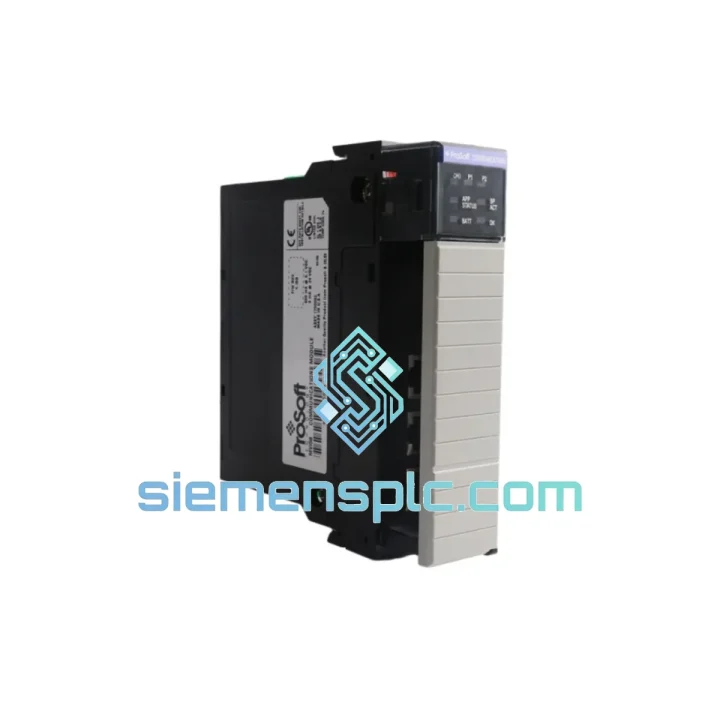

ProSoft Technology MVI56-PDPS: PROFIBUS-DP Slave Interface for Allen-Bradley ControlLogix Backplane

The MVI56-PDPS is a single-slot communication module designed to operate as a PROFIBUS-DP slave device within an Allen-Bradley ControlLogix chassis. It implements the DP-V0 cyclic data exchange layer as defined by EN 50170 and IEC 61158, enabling a ControlLogix controller to participate as a subordinate node on any PROFIBUS-DP master network — regardless of the master’s manufacturer. The module occupies one slot in the 1756 backplane and communicates with the ControlLogix CPU via the standard backplane messaging protocol, exchanging up to 244 bytes of input data and 244 bytes of output data per PROFIBUS scan cycle.

In process industries where Siemens S7-300, S7-400, or S7-1500 PLCs serve as PROFIBUS-DP masters, the MVI56-PDPS provides a deterministic, standards-compliant bridge to ControlLogix-based subsystems. The module’s GSD file is imported directly into STEP 7 or TIA Portal, and the slave node address is software-configurable from 1 to 125 — eliminating hardware DIP switch dependencies. Baud rate auto-detection covers the full PROFIBUS-DP range from 9.6 kbps to 12 Mbps, allowing the module to synchronize to the master’s network speed without manual intervention.

The MVI56-PDPS draws 800 mA at 5 VDC from the ControlLogix backplane. It operates across an ambient temperature range of 0°C to 60°C and carries CE, UL, and cUL certifications. Configuration is performed using ProSoft Configuration Builder (PCB), a free Windows-based utility that generates the module’s configuration file and provides sample RSLogix 5000 / Studio 5000 ladder logic with Add-On Instructions (AOIs) for rapid integration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MVI56-PDPS is built around a dedicated PROFIBUS-DP ASIC — a purpose-designed silicon layer that handles the physical layer framing, token-ring arbitration timing, and cyclic data exchange state machine independently of the module’s onboard processor. This architectural separation is significant: the PROFIBUS-DP ASIC maintains slave synchronization and responds to master poll cycles with deterministic latency, while the onboard CPU manages backplane messaging to the ControlLogix controller. The two subsystems operate asynchronously, with a dual-port RAM buffer serving as the data handoff zone. This design prevents backplane communication jitter from propagating into the PROFIBUS-DP cycle timing — a critical requirement in high-speed networks operating at 12 Mbps where the inter-frame gap is measured in microseconds.

EMC performance is addressed at the PCB layout level. The PROFIBUS-DP physical layer circuitry — including the RS-485 transceiver, bus termination resistors, and signal conditioning components — is isolated from the digital logic ground plane using a split-plane topology. Transient suppression diodes (TVS) are placed at the DB9 connector pins to clamp voltage spikes induced by cable inductance during hot-plug events or network faults. The module’s metal faceplate provides a continuous Faraday shield path to chassis ground, attenuating radiated emissions from the internal switching regulators that generate the isolated 5 V rail for the RS-485 driver.

The backplane interface uses the standard ControlLogix 1756 backplane protocol. The MVI56-PDPS appears to the ControlLogix CPU as a generic I/O module, exchanging data through MSG instructions or through the module’s defined I/O connection. The module’s internal memory map exposes the PROFIBUS-DP input and output data arrays as contiguous integer arrays in the controller tag database, with no proprietary driver required on the ControlLogix side. Diagnostic status words — including slave state, communication error counters, and last-received baud rate — are mapped to dedicated read-only tag elements, providing real-time visibility into the PROFIBUS-DP link health from within the Studio 5000 environment.

System Integration Benefits

• Vendor-Neutral Slave Compliance: The MVI56-PDPS conforms to the DP-V0 standard without proprietary extensions, making it compatible with PROFIBUS-DP masters from Siemens, ABB, Schneider Electric, Yokogawa, and other vendors. The GSD file provided by ProSoft is accepted by all major engineering tools including STEP 7, TIA Portal, Unity Pro, and System 800xA.
• Deterministic Cycle Response: The dedicated PROFIBUS ASIC responds to master poll requests within the guaranteed Tsdr (Station Delay of Responder) window, ensuring the slave does not introduce cycle overruns on high-speed networks. This is measurable with a PROFIBUS analyzer and is critical for motion-coordinated applications.
• Zero-Configuration Baud Rate Adaptation: Auto-detection across all ten standard PROFIBUS-DP baud rates eliminates a common commissioning error source. The module locks to the master’s baud rate within the first few poll cycles after power-up, with no parameter change required in the ControlLogix program.
• Transparent Tag-Based Data Access: Input and output data arrays are directly accessible as ControlLogix controller tags. Engineers can reference PROFIBUS-DP process values in ladder logic, function block diagrams, or structured text without intermediate data conversion routines.
• Integrated Diagnostic Transparency: Communication error counters, slave state flags, and network status bits are exposed as readable tags. Fault isolation during commissioning or production incidents does not require external PROFIBUS diagnostic hardware — the ControlLogix HMI can display live link health data.
• Multi-Module Scalability: Multiple MVI56-PDPS modules can be installed in the same ControlLogix chassis, each assigned a unique PROFIBUS-DP node address. This supports architectures where a single ControlLogix rack must participate as a slave on multiple independent PROFIBUS-DP master networks simultaneously.
• Reduced Engineering Time via Sample Code: ProSoft Configuration Builder includes tested sample ladder logic and AOIs for the MVI56-PDPS. Engineers can import these directly into Studio 5000, reducing the integration effort from days to hours for standard applications.
• Long-Term Platform Stability: The MVI56 series has been in continuous production for over 15 years. Firmware updates are available through ProSoft’s support portal, and the module’s hardware design has remained backward-compatible across ControlLogix firmware revisions — protecting the capital investment in installed systems.

Quality Assurance & Global Logistics

Every MVI56-PDPS unit supplied through siemensplc.com is sourced from verified industrial distribution channels with full manufacturer traceability. Incoming units undergo a structured inspection protocol: visual examination of the PCB, faceplate, and connector integrity; label and date-code authentication against ProSoft Technology’s published part number records; and a functional power-on verification confirming that the module initializes correctly and that the onboard status LEDs cycle through the expected startup sequence.

Units are dispatched from our warehouse in Xiamen, China. Xiamen is served by Xiamen Gaoqi International Airport (XMN) with direct cargo connections to major logistics hubs in Europe, North America, Southeast Asia, and the Middle East. Standard international shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to most destinations. For time-critical requirements, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include commercial invoice, packing list, and certificate of origin documentation to support customs clearance. Export classification and HS code documentation are provided on request.

Each unit is shipped in anti-static packaging with foam cushioning. A 12-month warranty against manufacturing defects is included with every unit. Warranty claims are processed with a target response time of one business day, and replacement units are dispatched from Xiamen stock where available.
