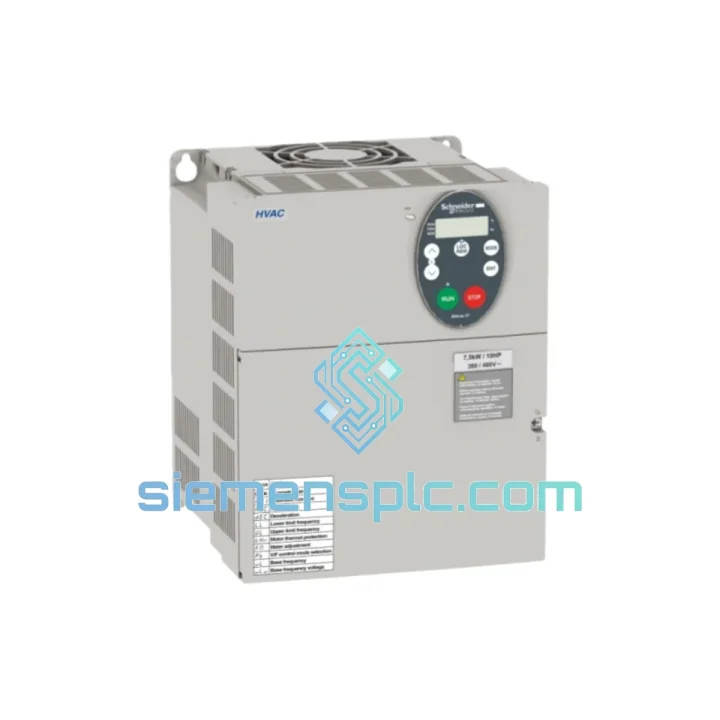

Schneider ATV21HD18N4 Variable Frequency Drive

ATV21HD18N4 Down? Every Minute of Downtime Costs You Money — We Ship Same Day

Your HVAC system is offline. The AHU is dead. The pump won’t start. You’ve traced the fault to the drive — and the part number stamped on the chassis reads ATV21HD18N4. You don’t have a spare. Your local distributor quotes 3–6 weeks. That’s not acceptable.

We stock the Schneider Electric ATV21HD18N4 — 18.5kW, 380–480V three-phase, Altivar 21 series — and we ship from Xiamen within 24 hours of order confirmation. DHL Express to most destinations in 2–5 business days. No waiting, no excuses.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on Altivar drives, here are the failure modes I see most often on the ATV21HD18N4 — and what to watch for when you swap it out.

Common Fault Codes:

• OHF (Overheating Fault): Fan failure or blocked ventilation. Before condemning the drive, clean the heatsink fins and verify the internal fan spins freely. If the drive is genuinely failed, check that the replacement unit’s ambient temperature rating matches your panel conditions — ATV21 is rated to 40°C without derating.
• OCF (Overcurrent Fault): Usually a motor winding issue or a mechanical jam on the load side. Megger the motor before energizing the new drive. A shorted winding will kill a replacement unit within minutes.
• PHF (Phase Loss Fault): Upstream contactor or fuse issue. Verify all three input phases are present and balanced before blaming the drive.
• CFF (Configuration Fault): Parameter mismatch after replacement. The ATV21 does not auto-detect motor parameters — you must manually enter motor nameplate data (rated voltage, current, frequency, speed, power factor) during commissioning.
• SCF (Short Circuit Fault): Check output cable insulation. Any phase-to-phase or phase-to-ground fault on the motor cable will trigger this immediately on power-up.

Replacement Checklist — Do This Before You Power Up:

• Photograph the existing terminal wiring before disconnecting anything. ATV21 terminal layout is straightforward but field modifications are common.
• Note the existing parameter settings if the drive still powers up (even partially). Key parameters: motor rated current (LFr), acceleration time (ACC), deceleration time (dEC), max frequency (HSP), and any PID setpoints.
• Verify the control voltage: ATV21 logic inputs operate at 24VDC. Confirm your control circuit matches.
• Check the analog reference signal: 0–10V or 4–20mA. Set the AI1 configuration parameter accordingly on the new unit.
• If the original unit had an optional communication card (CANopen, BACnet, LON), confirm the card is physically transferred or a new card is ordered — the base unit ships with Modbus RTU only.
• After parameter entry, run a motor autotuning sequence (tUn parameter) before returning to full-load operation.

Reliability in Harsh Conditions

The ATV21HD18N4 was designed for continuous duty in commercial and light industrial environments — but field conditions are rarely ideal. Here’s what the hardware is built to handle, and where the limits are.

The drive’s power stage uses IGBT modules rated for industrial thermal cycling. The internal heatsink is aluminum-extruded with forced-air cooling via an internal fan — this fan is a known wear item on units with 5+ years of runtime. When sourcing a replacement, we inspect and test the cooling fan on every unit before dispatch.

Vibration tolerance meets IEC 60068-2-6 standards — 1.5mm displacement at 2–13Hz, 1g at 13–200Hz. For installations on pump skids or compressor bases where vibration is significant, ensure the drive is mounted on anti-vibration isolators and that all terminal screws are torqued to spec (M4 terminals: 1.2 N·m).

Humidity tolerance is 5–95% non-condensing. In coastal or high-humidity environments, the IP20 enclosure provides no moisture protection — the drive must be housed in a sealed cabinet with appropriate ingress protection. We’ve seen corrosion on the control board terminal blocks in tropical installations where this was overlooked.

Operating temperature range is 0°C to +40°C at full rating. Above 40°C, derate output current by 2.2% per degree Celsius. Storage temperature: -25°C to +70°C.

All units we ship are tested under load prior to dispatch. We do not ship untested stock.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways.

Standard Dispatch Process:

• Order Confirmed Before 14:00 CST: Same-day dispatch. Tracking number issued by 18:00 CST.
• Order Confirmed After 14:00 CST: Next business day dispatch.
• Packaging: Anti-static foam insert, double-wall corrugated carton, moisture barrier bag. Drive is secured against movement — no rattling, no contact damage in transit.
• Documentation: Commercial invoice, packing list, and certificate of conformity included. HS Code 8504.40 declared for customs clearance.

Estimated Transit Times (DHL Express):

• Southeast Asia (SG, MY, TH, VN): 2–3 business days
• Middle East (AE, SA, QA): 3–4 business days
• Europe (DE, NL, PL, UK): 3–5 business days
• North America (US, CA): 4–6 business days
• Australia / New Zealand: 3–5 business days

For shipments requiring import permits, CITES documentation, or specific customs declarations, contact us before ordering. We handle the paperwork — you focus on getting your plant back online.
