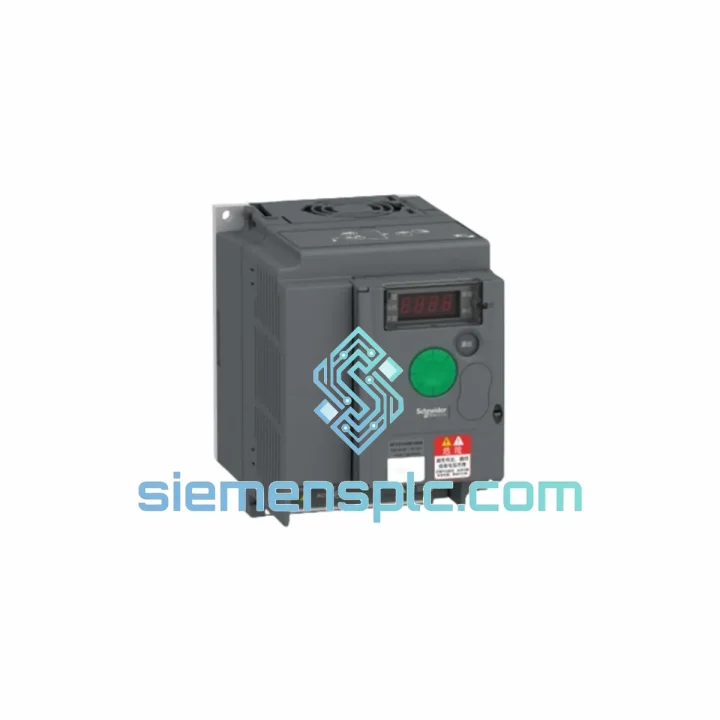

Schneider ATV310HU40N4 Variable Frequency Drive

ATV310HU40N4 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your line stopped. The ATV310HU40N4 tripped and won’t reset. Maintenance is on-site, the production manager is calling every five minutes, and the clock is running. This is exactly the scenario we built siemensplc.com to solve. We stock the Schneider Electric ATV310HU40N4 — the Altivar 310 4 kW / 400 V three-phase variable frequency drive — and we ship same-day from Xiamen via DHL Express. No waiting on distributor lead times. No minimum order quantity. One unit, out the door, tracked to your door.

The ATV310HU40N4 is a workhorse in pump, fan, conveyor, and compressor applications across water treatment, HVAC, food processing, and OEM machinery. When it fails, there is no acceptable substitute for speed of response. We have handled hundreds of emergency VFD replacements across Southeast Asia, the Middle East, and Europe. We know what you need and we move fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Altivar drives, these are the failure modes and replacement pitfalls that catch engineers off guard on the ATV310HU40N4:

Common Fault Codes You’ll See Before Total Failure

• OHF (Overheating Fault): Fan failure or blocked ventilation slots. The ATV310 fan is not field-replaceable on older firmware — if the drive is already tripping OHF repeatedly, the IGBT junction temperature is already stressed. Plan for full drive replacement, not just fan cleaning.
• OCF (Overcurrent Fault): Usually a motor winding fault or a sudden mechanical jam. Before condemning the drive, megger the motor at 500 V DC. If motor insulation is good and OCF persists on a known-good motor, the drive’s current sensing board has drifted — replace the drive.
• PHF (Phase Loss Fault): Check L1/L2/L3 input terminals first. If input voltage is balanced and PHF still triggers, the internal rectifier bridge is failing. This is not repairable in the field.
• CFF (Configuration Fault): Appears after a firmware reset or parameter corruption. The drive has lost its parameter set. If you have a SoMove backup file, restore via VW3A8106 cable. If not, you will need to recommission from scratch — see below.
• SCF (Short Circuit Fault): Immediately check U/V/W output terminals and motor cable insulation. A shorted output IGBT will also trigger SCF — if the fault clears on motor disconnect but returns when motor is reconnected, the motor cable or motor itself is the culprit. If SCF persists with motor disconnected, the drive output stage is gone.

Replacement Procedure — What to Do Before You Power Up the New Unit

• Parameter backup first: If the old drive still powers up (even faulted), connect SoMove via VW3A8106 and export the full parameter file before pulling the drive. This saves 30–60 minutes of recommissioning on the new unit.
• Check the DIP switches: The ATV310HU40N4 has a termination resistor switch (SW1) on the Modbus RS-485 port. If this drive is the last node on your Modbus chain, SW1 must be set to ON (120 Ω termination). Forgetting this causes intermittent Modbus communication errors that are maddening to diagnose.
• Motor cable length matters: The ATV310 integrated C2 EMC filter is rated for motor cable lengths up to 25 m without additional output reactor. Beyond 25 m, add a dU/dt filter on the output — otherwise you risk premature motor winding insulation failure from voltage spikes.
• Verify firmware version: If you are replacing into a system running SoMachine or EcoStruxure Machine Expert with pre-built ATV310 function blocks, confirm the firmware version of the replacement unit matches the original. Firmware mismatches can cause unexpected behavior with the PLC function block library. Check parameter r-FW on the keypad.
• Self-tuning run: After parameter restore, always run an auto-tune (parameter tUn = rUn) with the motor connected but unloaded. This recalibrates stator resistance and improves SVC performance, especially if the replacement unit is from a different production batch.
• Acceleration/deceleration ramps: Confirm ACC and dEC parameters match your process requirements. A default reset sets these to 3 seconds — too fast for high-inertia loads like centrifugal pumps, which will trigger OBF (overvoltage braking fault) on deceleration.

Reliability in Harsh Conditions

The ATV310HU40N4 was designed for industrial panel environments, not climate-controlled server rooms. That said, field conditions routinely exceed the datasheet envelope, and knowing the margins matters when you are deciding whether to push through a shift or shut down for replacement.

The drive’s conformal-coated PCBs provide meaningful protection against condensation and airborne contaminants — a real advantage in coastal or high-humidity facilities. The integrated Class C2 EMC filter handles conducted emissions in environments with significant electrical noise from welding equipment, large motor starters, and variable loads on the same bus. The IP20 enclosure is not splash-proof, but the internal components are rated for 95% relative humidity non-condensing, which covers most panel environments when the panel door is closed.

Vibration tolerance is rated to IEC 60068-2-6: 1.5 mm displacement at 2–13 Hz, 1 g at 13–200 Hz. In practice, drives mounted directly to machine frames in high-vibration environments (presses, compressors, reciprocating pumps) benefit from anti-vibration mounts on the panel itself. The ATV310’s terminal block connections are screw-type with locking — they do not self-loosen under vibration the way push-in connectors can.

Thermal management is the most common field failure driver. The ATV310HU40N4 is rated to +50°C ambient without derating. Above 50°C, output current must be derated by 2.2% per degree Celsius. In practice, panel internal temperatures in summer in southern China, the Middle East, or Southeast Asia can easily reach 55–60°C if panel cooling is inadequate. If your drive is failing repeatedly in summer months, the root cause is almost certainly thermal — not the drive itself. Add a panel air conditioner or increase ventilation before installing the replacement.

Global Express Logistics

We operate from Xiamen, Fujian — one of China’s primary export hubs with direct DHL, FedEx, and UPS gateway access. This is not a drop-shipping operation. Stock is physically on our shelves, inspected, and ready to pack.

Standard Express Timeline (DHL/FedEx Priority):

• Order confirmed before 14:00 CST: Same-day dispatch from Xiamen
• Southeast Asia (SG, MY, TH, VN, ID): 2–3 business days door-to-door
• Middle East (UAE, SA, QA, KW): 3–4 business days door-to-door
• Europe (DE, NL, FR, PL, UK): 3–5 business days door-to-door
• North America (US, CA): 4–6 business days door-to-door
• Australia / New Zealand: 3–5 business days door-to-door

Every shipment includes a commercial invoice, packing list, and certificate of origin — all documents required for customs clearance. HS Code 8504.40 is pre-declared on all VFD shipments. For customers in countries with import duty exemptions or preferential tariff agreements with China, we can provide Form E (ASEAN-China FTA) or other preferential origin certificates upon request.

For extremely urgent requirements — production line down, no tolerance for delay — contact us directly on WhatsApp before placing the order. We will confirm stock, cut-off time, and the earliest possible delivery date in real time before you commit. We do not promise what we cannot deliver.

Bulk orders (5+ units) can be consolidated and shipped via air freight LCL for cost optimization without sacrificing speed. Sea freight is available for non-urgent replenishment orders of 10+ units.
