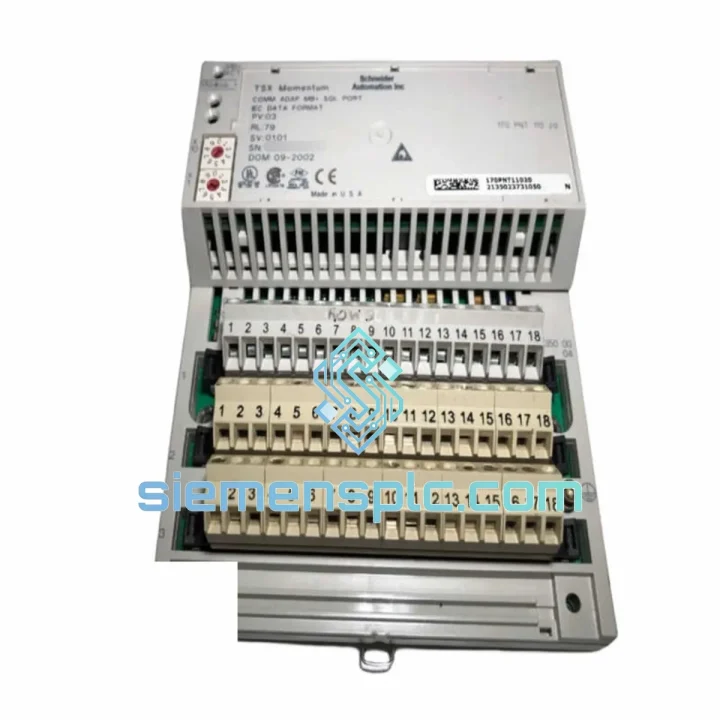

Schneider Electric 170INT11003 Interbus-S NIM

170INT11003 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your Modicon Quantum rack is dark. The Interbus-S ring is broken. Production is at a standstill. You’ve already pulled the 170INT11003 and confirmed it’s the culprit — now you need a replacement on-site before the next shift, not next week. That’s exactly why we stock the Schneider Electric 170INT11003 in Xiamen, ready for same-day DHL or FedEx dispatch to anywhere on the planet. No minimum order. No waiting on distributor lead times. One call, one module, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 170INT11003 in a live Quantum system is not a plug-and-pull job if you skip the checklist. Here is what field experience has taught us:

Step 1 — Confirm the fault is the NIM, not the ring. Before pulling the module, check the IBS ACTIVE and IBS FAULT LEDs. A solid red FAULT with no ACTIVE blink almost always means the ring is broken downstream — a cut cable, a dead slave, or a loose DB9 connector. Walk the ring first. Replacing the NIM when the ring is open wastes a module and your time.

Step 2 — Document the slot address. The 170INT11003 uses backplane slot addressing. Note the physical slot number before removal. The replacement must go back into the exact same slot, or your Unity Pro / Concept project will throw a configuration mismatch fault on the next PLC scan.

Step 3 — Check firmware revision. Pull the label on the existing module and note the firmware version (printed as FW x.xx). The 170INT11003 has had multiple firmware revisions. If your Unity Pro project was built against an older firmware, loading it onto a newer-revision module can cause unexpected I/O mapping shifts. Download the matching firmware from Schneider’s support portal before commissioning if revisions differ.

Step 4 — Power down the rack before swapping. The Quantum backplane is not hot-swap capable for NIM modules. Cut power to the rack power supply (140CPS series) before removing the 170INT11003. Failure to do so risks backplane bus corruption and can damage the CPU module.

Step 5 — Re-download the IBS configuration. After seating the new module and powering up, the PLC will come online but the Interbus-S ring will remain inactive until you perform a full configuration download from Unity Pro or Concept. Go to PLC → Transfer Project to PLC → Full Download. The ring will initialize, scan all slaves, and report active device count. Compare against your documented slave count to confirm full ring integrity.

Common fault codes:

• IBS FAULT LED solid red, ACTIVE off: Ring break detected. Check cable continuity from the NIM OUT port through each slave back to the IN port.
• IBS FAULT LED blinking red: Slave device fault. Use the Interbus diagnostic tool in Unity Pro to identify the failing slave address.
• PLC reports Module not recognized: Firmware mismatch or wrong slot assignment in the project. Verify slot number and firmware revision.
• Ring initializes but I/O count is wrong: One or more slaves failed to respond during ring scan. Power-cycle the slave devices and re-initialize the ring.

Reliability in Harsh Conditions

The 170INT11003 was engineered for the factory floor, not the server room. Schneider Electric’s Modicon Quantum platform was designed from the ground up to operate in environments that would kill consumer-grade electronics within weeks.

The module’s conformal-coated PCB resists moisture ingress and condensation — critical in food processing plants, coastal facilities, and anywhere with aggressive wash-down cycles. Operating humidity tolerance of 5% to 95% non-condensing means it handles the humidity swings common in Southeast Asian manufacturing without corrosion-related failures.

Vibration resistance meets IEC 60068-2-6 standards, making the 170INT11003 suitable for installation adjacent to heavy presses, compressors, and conveyor drives where mechanical shock is a daily reality. The module’s backplane connector is a positive-locking design that resists vibration-induced contact loosening — a failure mode that plagues cheaper fieldbus cards in high-vibration environments.

Thermal performance is equally robust. The 0 °C to +60 °C operating range covers the vast majority of industrial enclosure environments, even in summer conditions without air conditioning. Internal components are rated for storage down to -40 °C, so modules shipped through cold-chain logistics or stored in unheated warehouses arrive fully functional.

Every unit we ship has been stored in climate-controlled conditions in our Xiamen warehouse, in original anti-static ESD packaging. We do not sell modules that have been sitting in a humid container yard for six months. Condition matters as much as part number.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship operation. Stock is physically on our shelves, inspected, and ready to pack the moment your order is confirmed.

Standard express timeline:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Southeast Asia (SG, MY, TH, VN, ID): 1–2 business days door-to-door.
• Europe (DE, FR, IT, NL, PL): 3–5 business days door-to-door.
• North America (US, CA, MX): 3–5 business days door-to-door.
• Middle East (AE, SA, QA): 2–4 business days door-to-door.
• Australia / New Zealand: 3–5 business days door-to-door.

All shipments include full commercial invoice, packing list, and certificate of origin for customs clearance. HS Code 8537.10 applies to this module for most jurisdictions. We handle export documentation in-house — no third-party freight forwarder delays. For shipments requiring an urgent customs pre-clearance letter or end-user declaration, contact us before placing the order and we will prepare the paperwork same day.

Packaging: each 170INT11003 is individually wrapped in an anti-static ESD bag, cushioned in high-density foam, and shipped in a double-wall corrugated carton rated for international air freight handling. The module arrives at your site in the same condition it left our warehouse.
